LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
System Diagram
>>

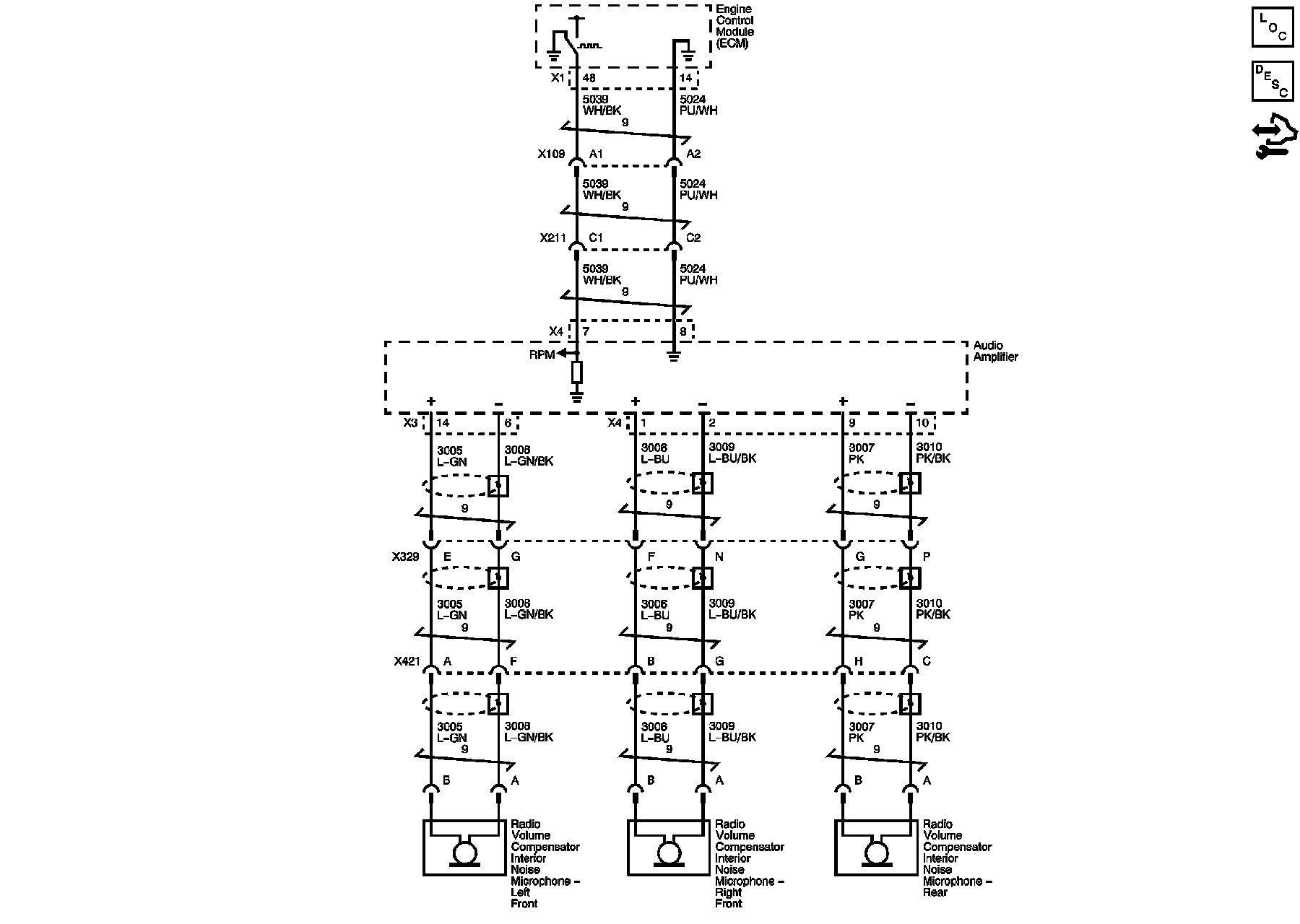

Active Noise Cancellation Schematics
Active Noise Cancellation Schematics
Active Noise Cancellation Schematics
Y91
