X321




Harness Routing Views

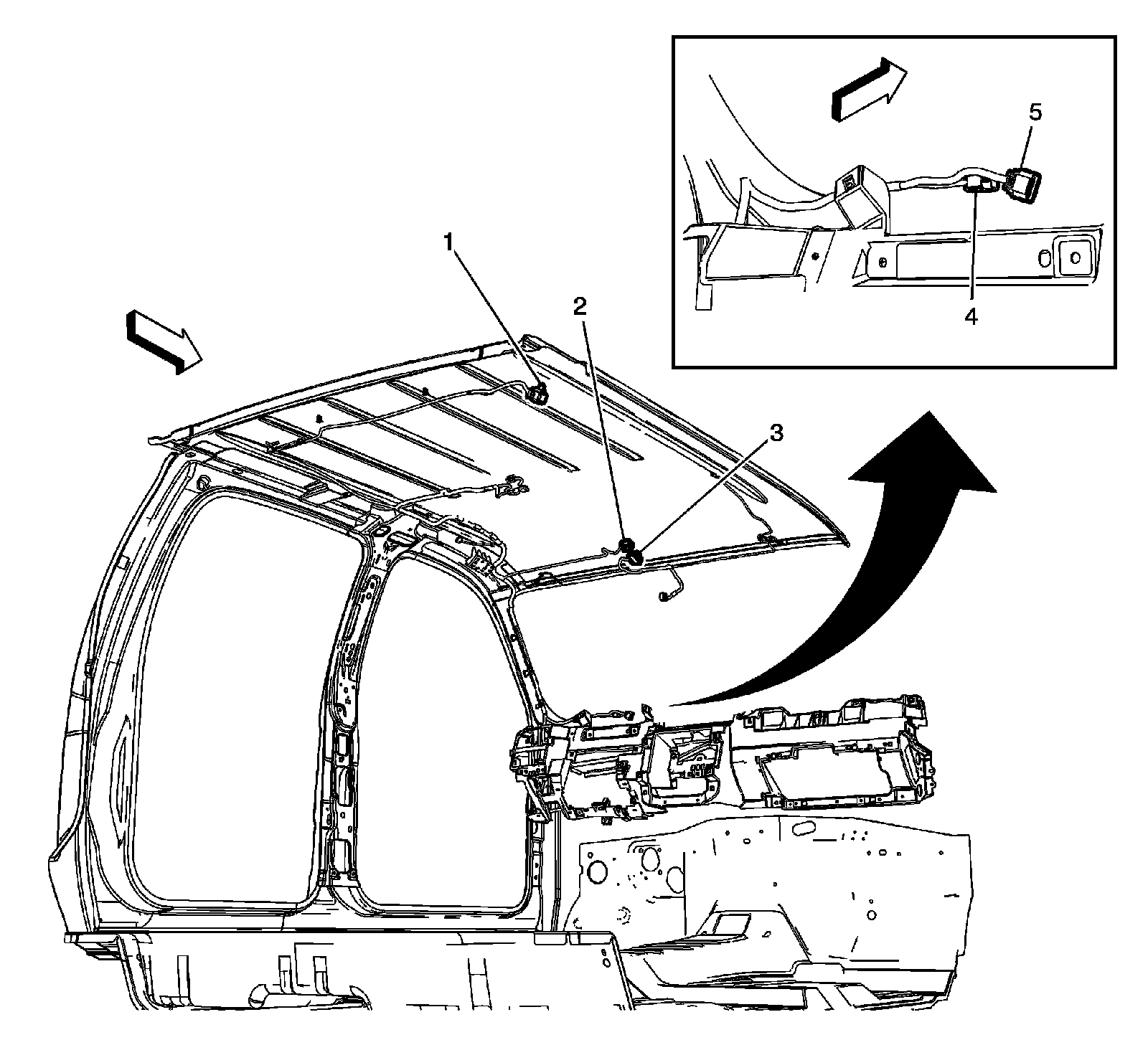

Headliner Harness Routing (LWB without E52 or TB7)




1 - X321
2 - X306 (DNU)
3 - X304
4 - X203 (UE1)
5 - X204 (U42)
