Yaw and Lateral Accelerometer Sensor (HP2 or JH6 over 8600 GVW)

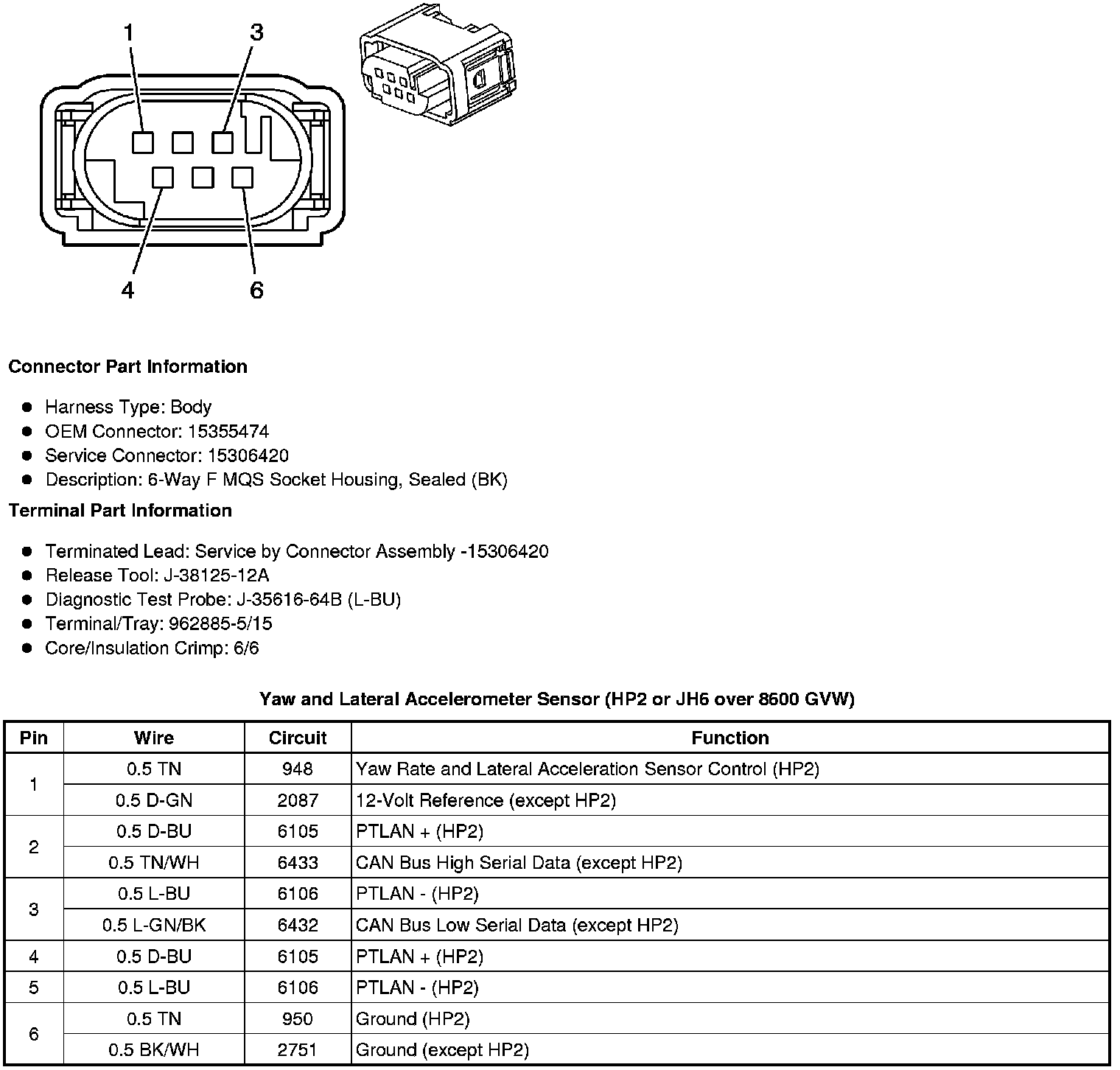

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (HP2 or JH6 over 8600 GVW)
