Tail/Turn Signal Lamp - Left (Z88 with E52)

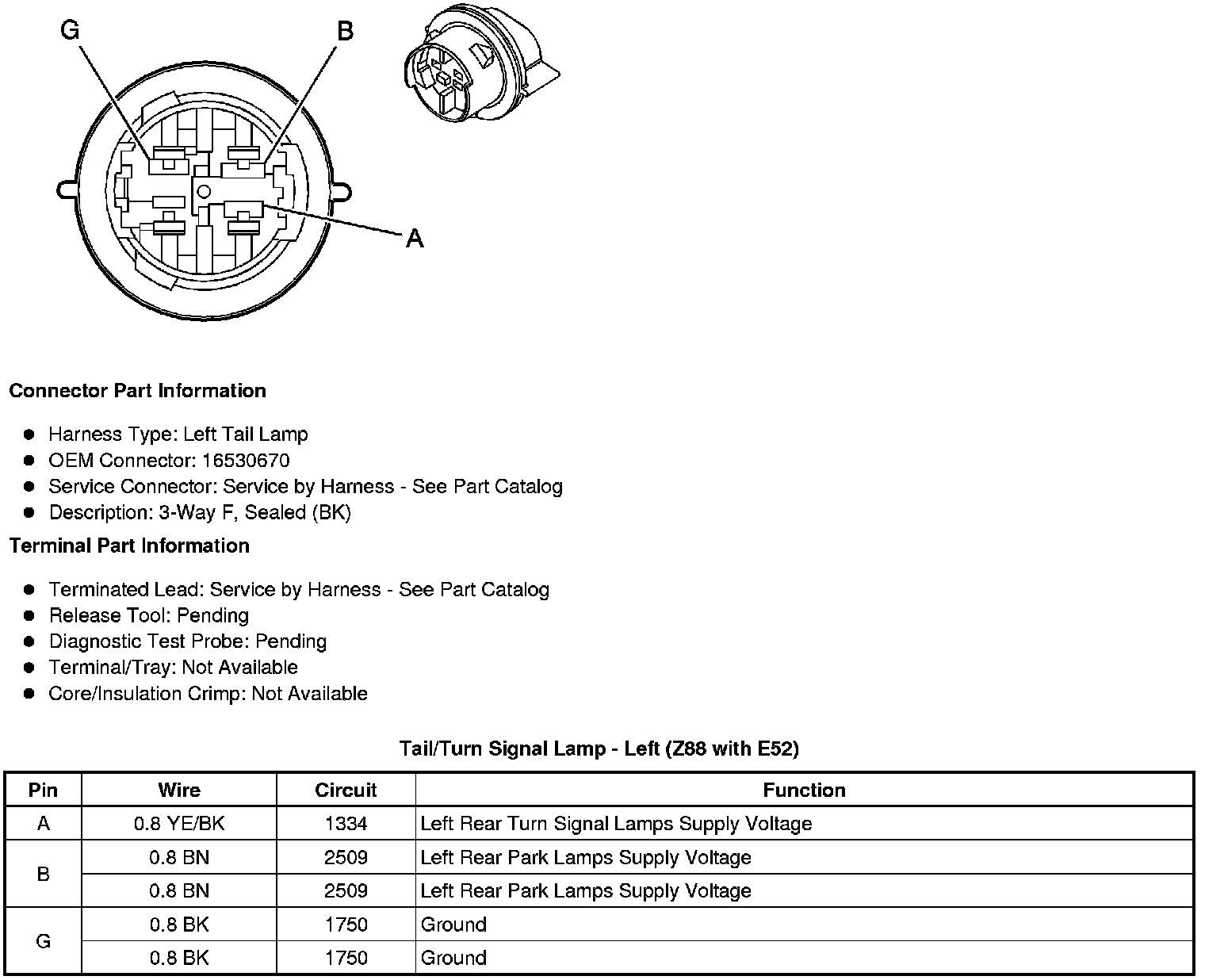

Tail/Turn Signal Lamp - Left (Z88 with E52)
Component Connector End Views
Tail/
Turn Signal Lamp
- Left (Z88 with E52)
