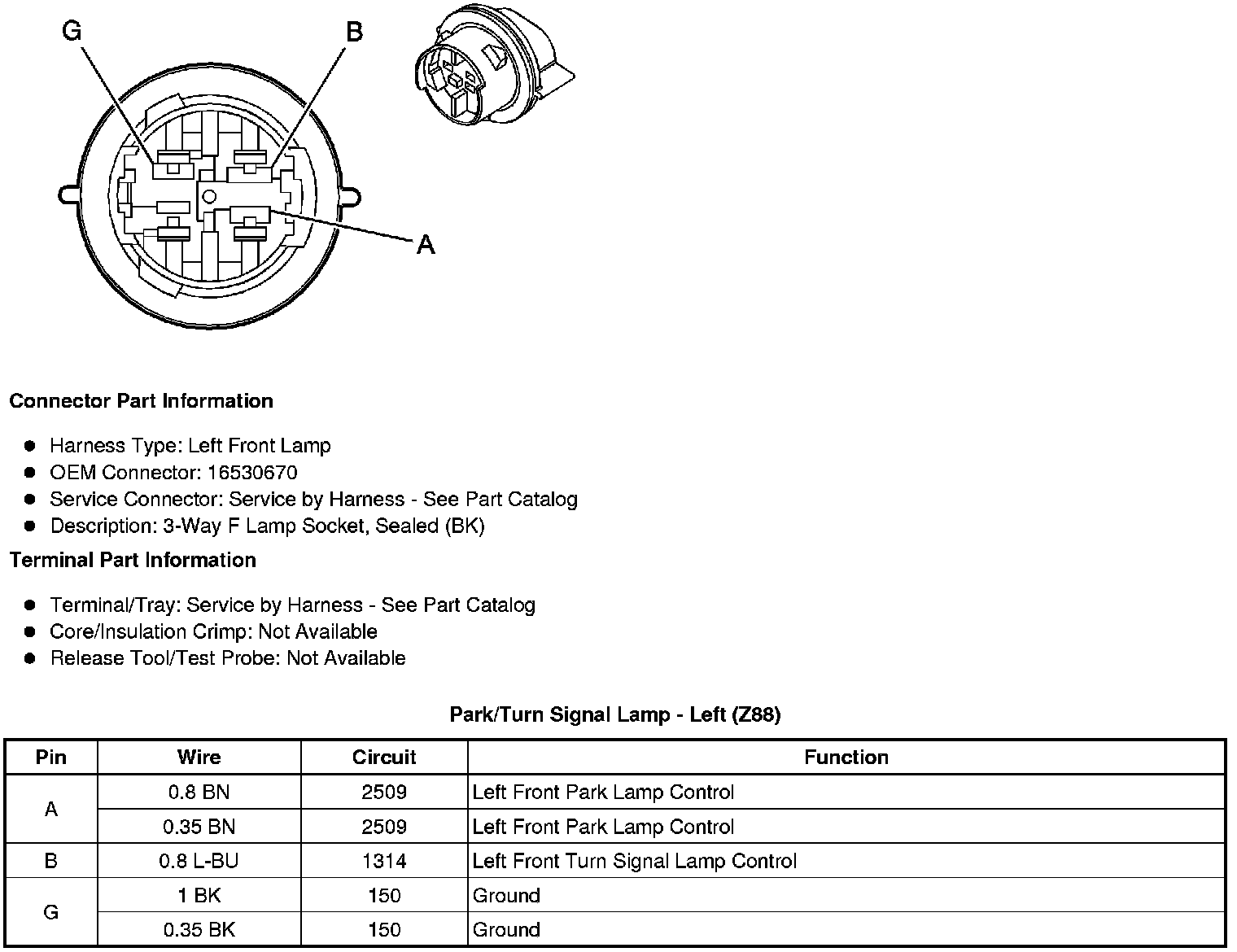

Park/Turn Signal Lamp - Left (Z88)




Component Connector End Views

Park/Turn Signal Lamp - Left (Z88)
