Suspension Position Sensor - Right Front (Z55)
Suspension Position Sensor - Right Front (Z55)

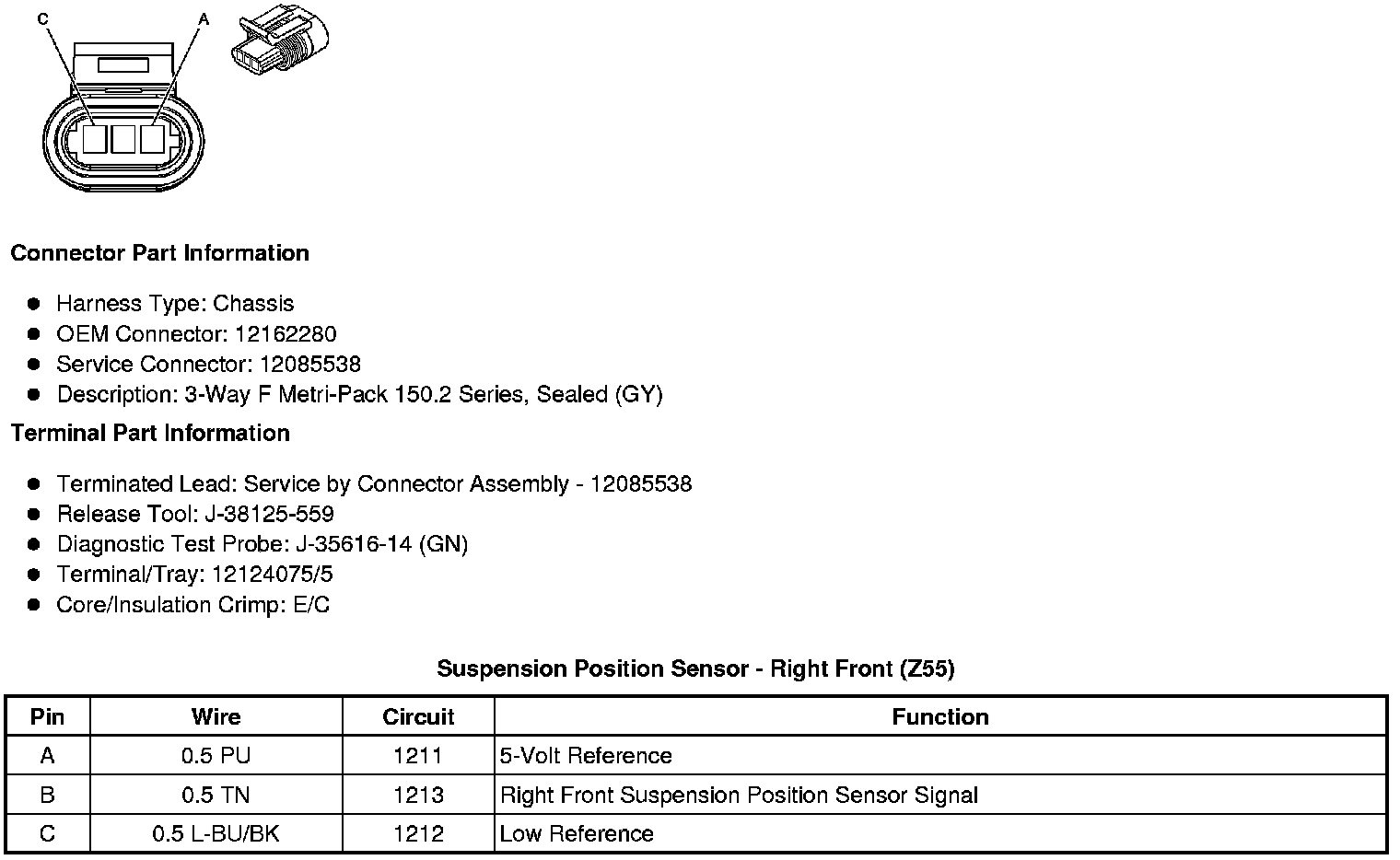

Component Connector End Views
Suspension
Position Sensor - Right Front (Z55)
