LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Splices By Number
>>
JX300 - JX399
JX300 - JX399

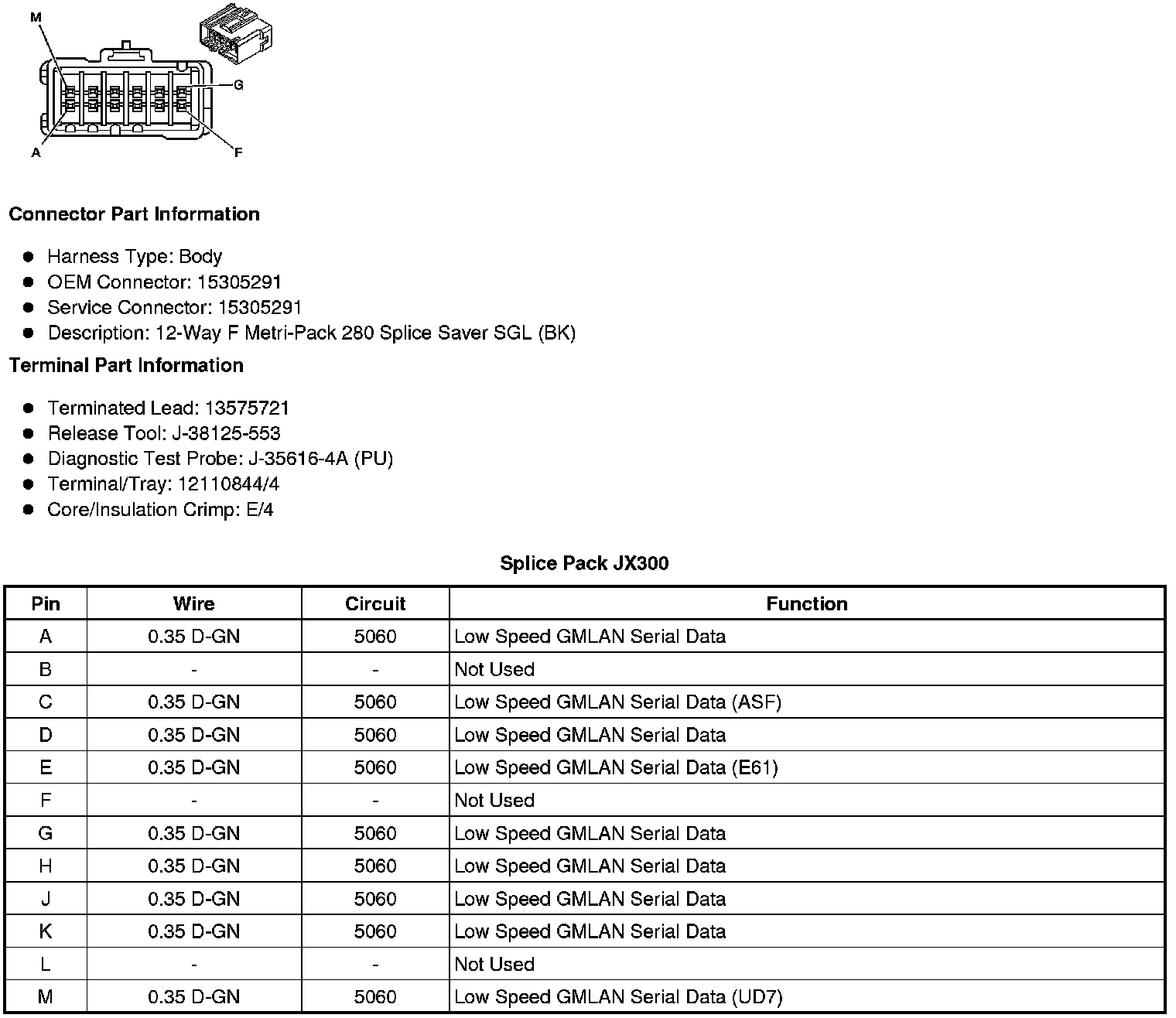

Splice Pack Connector End Views
Splice Pack JX300
