Shift Solenoid, A/T
>>
Control Solenoid Valve Assembly X1 (MYC, MYD or M99)

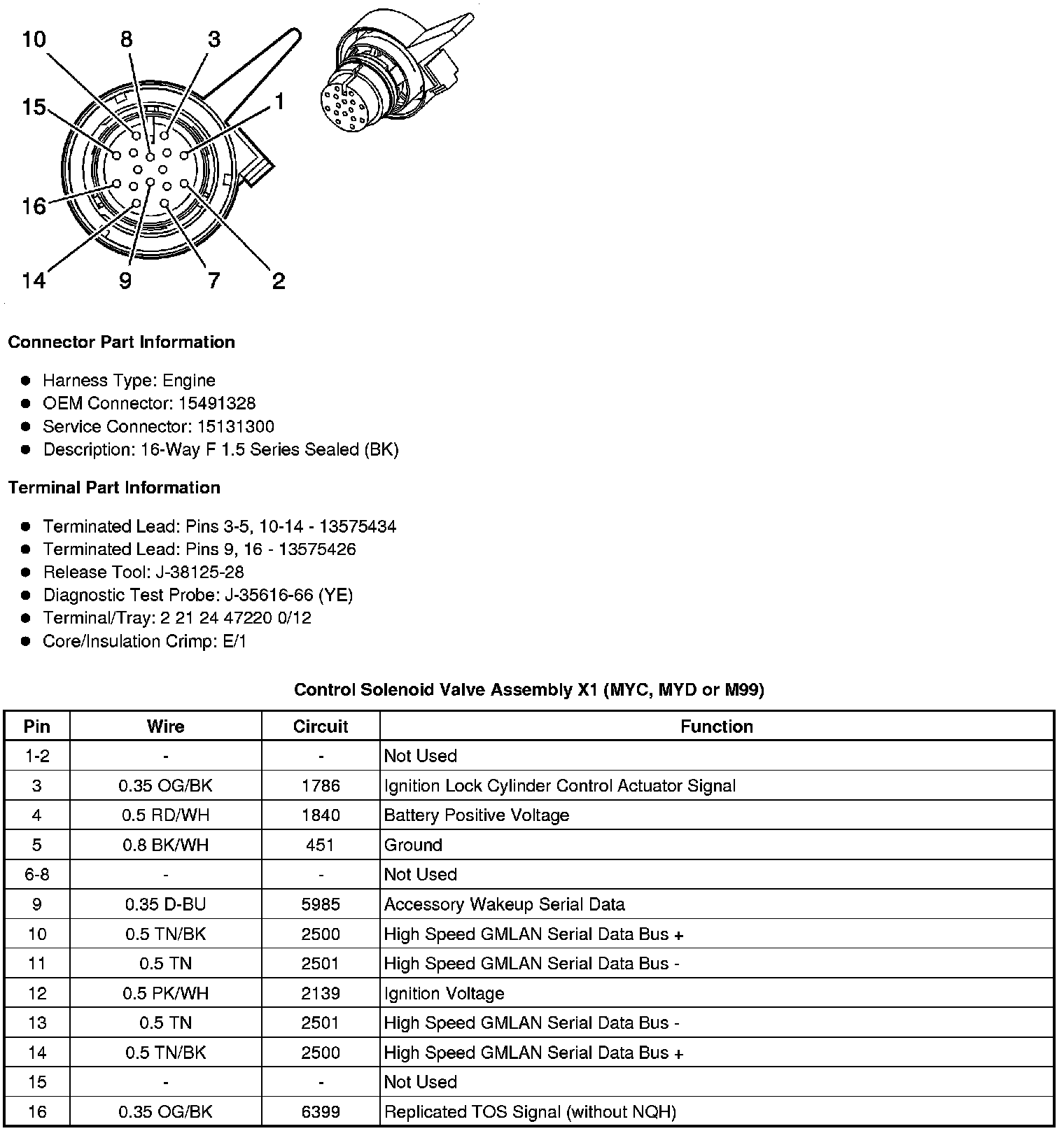

Control Solenoid Valve Assembly X1 (MYC, MYD or M99)
Component Connector End Views
Control Solenoid Valve Assembly X1 (MYC, MYD or M99)
