Marker Lamp
>>
Side Marker Lamp - Left Front (X88 or Z88)
Side Marker Lamp - Left Front (X88 or Z88)

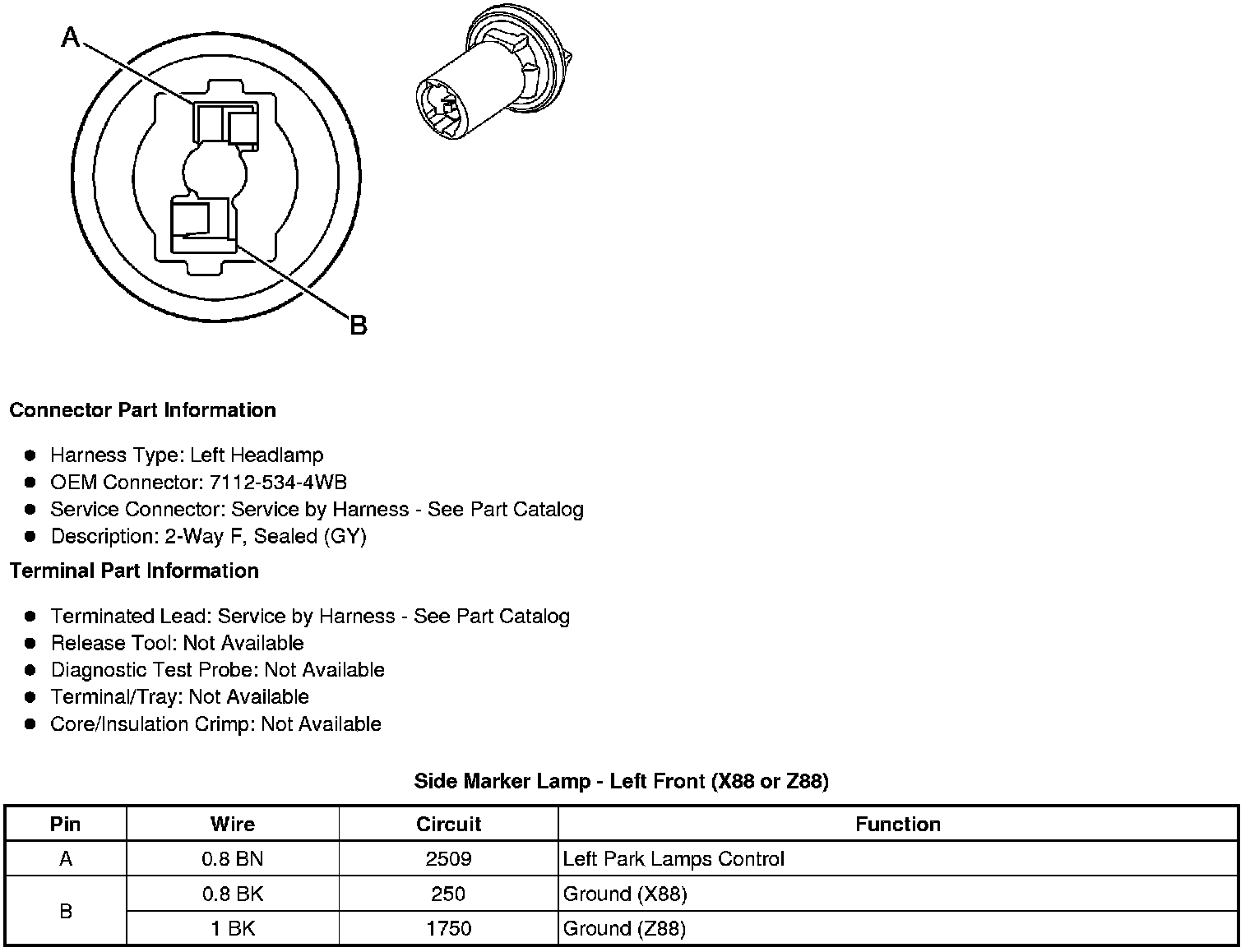

Component Connector End Views
Side Marker Lamp - Left Front (X88 or Z88)
