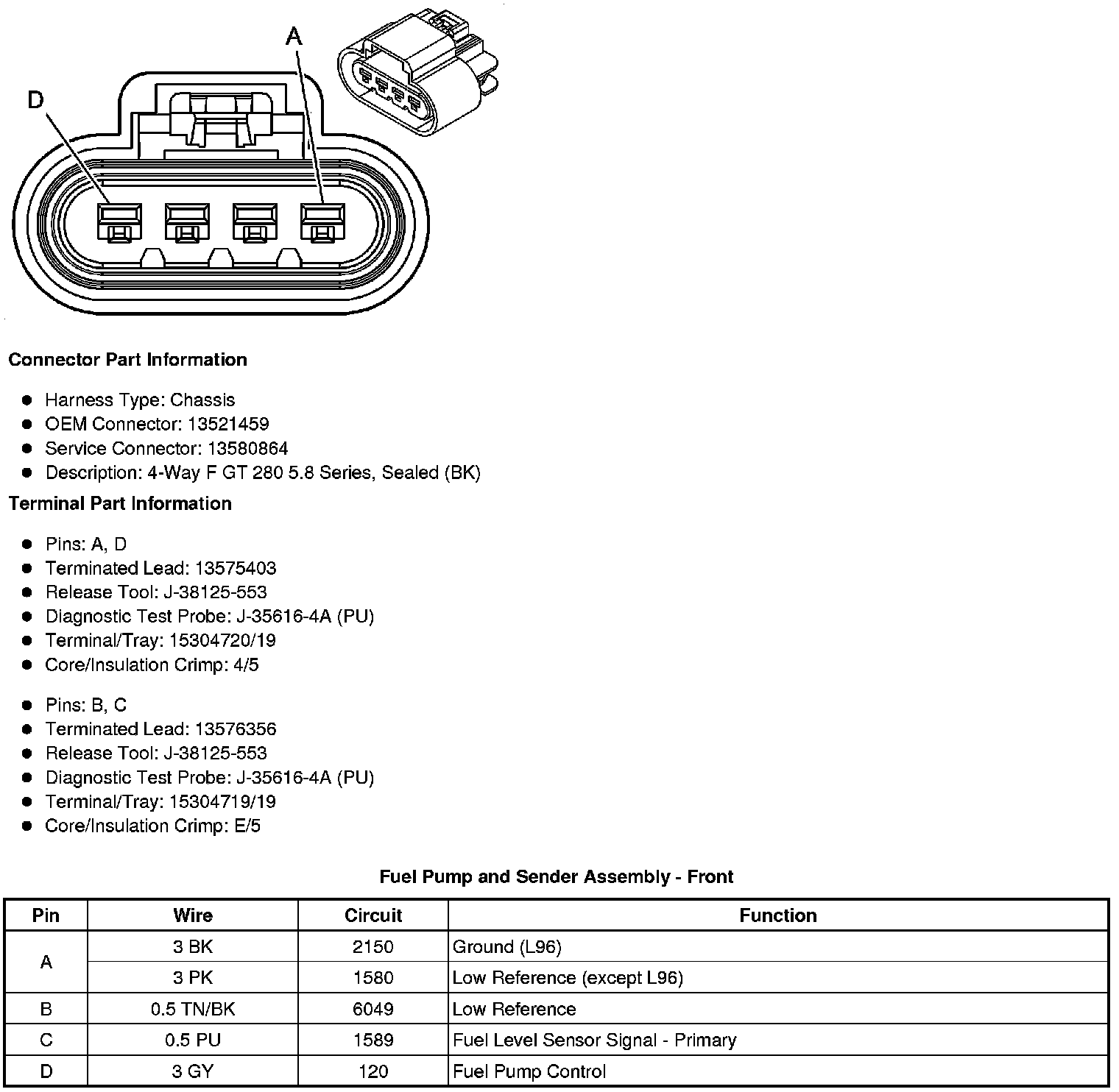

Fuel Pump and Sender Assembly - Front




Component Connector End Views

Fuel Pump and Sender Assembly - Front
