Front Door Latch
>>
Door Latch - Passenger
Door Latch - Passenger

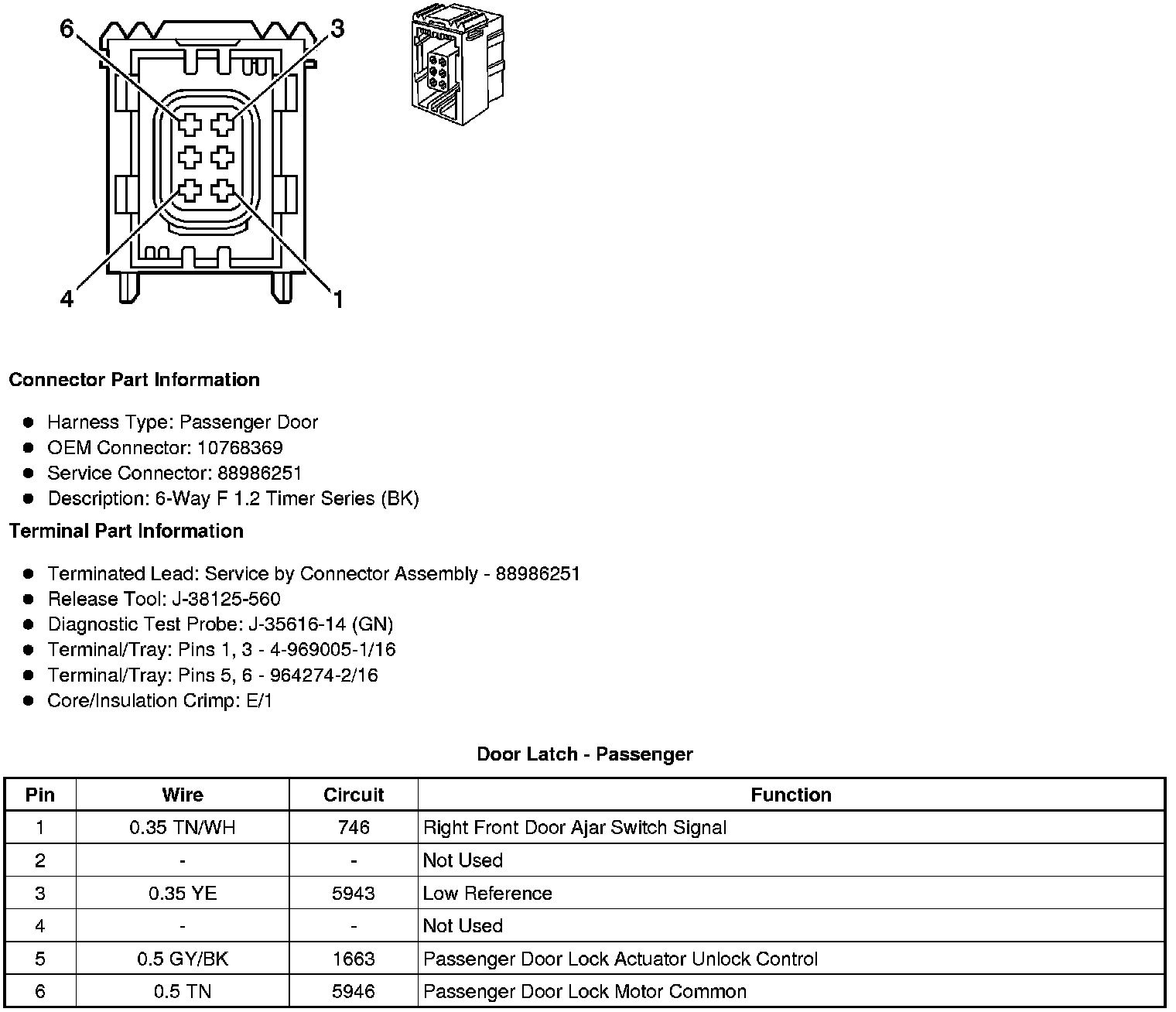

Component Connector End Views
Door Latch - Passenger
