Daytime Running Lamp (DRL) - Right (Z75)
Daytime Running Lamp (DRL) - Right (Z75)

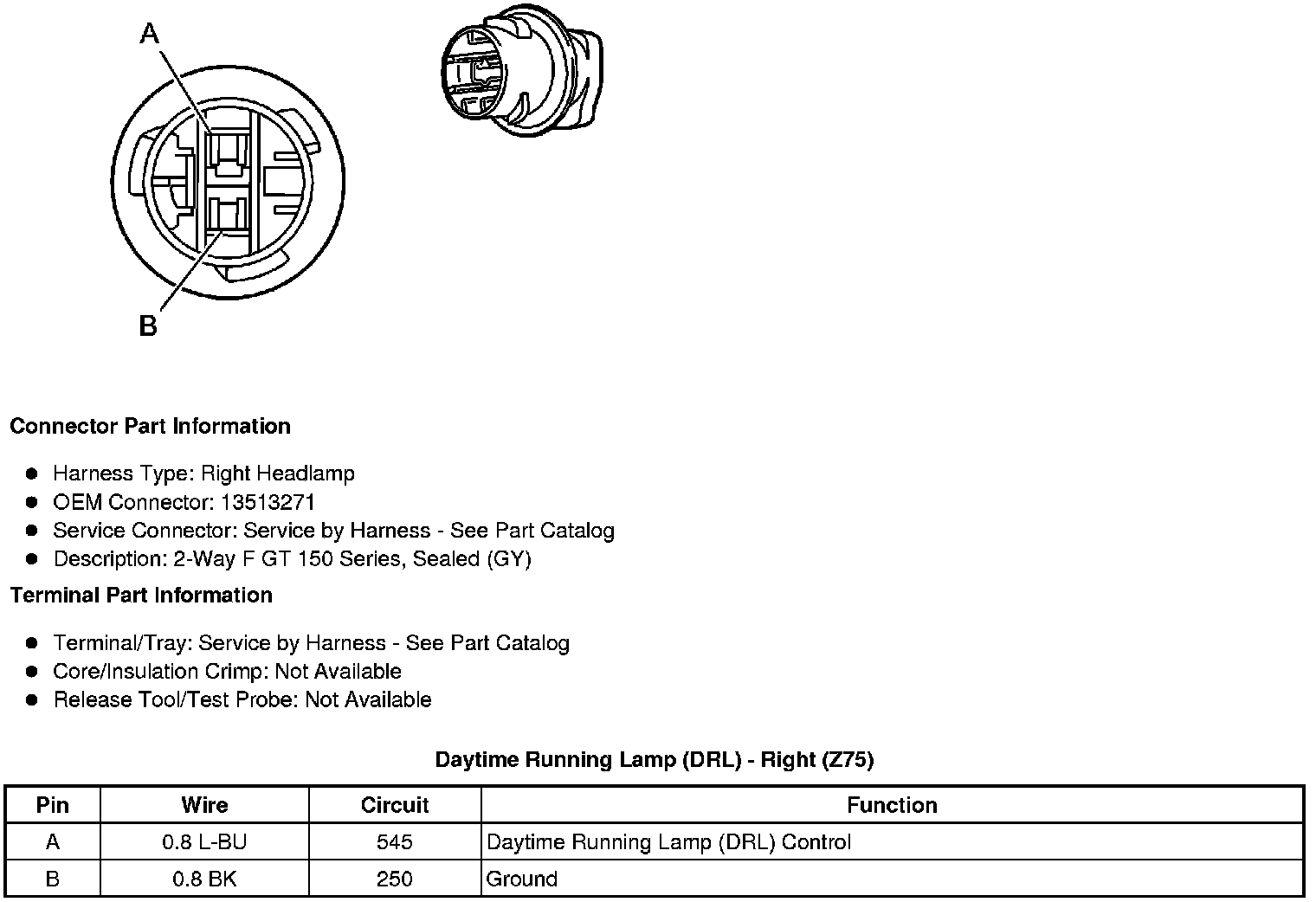

Component Connector End Views
Daytime Running Lamp (DRL) - Right (Z75)
