X900

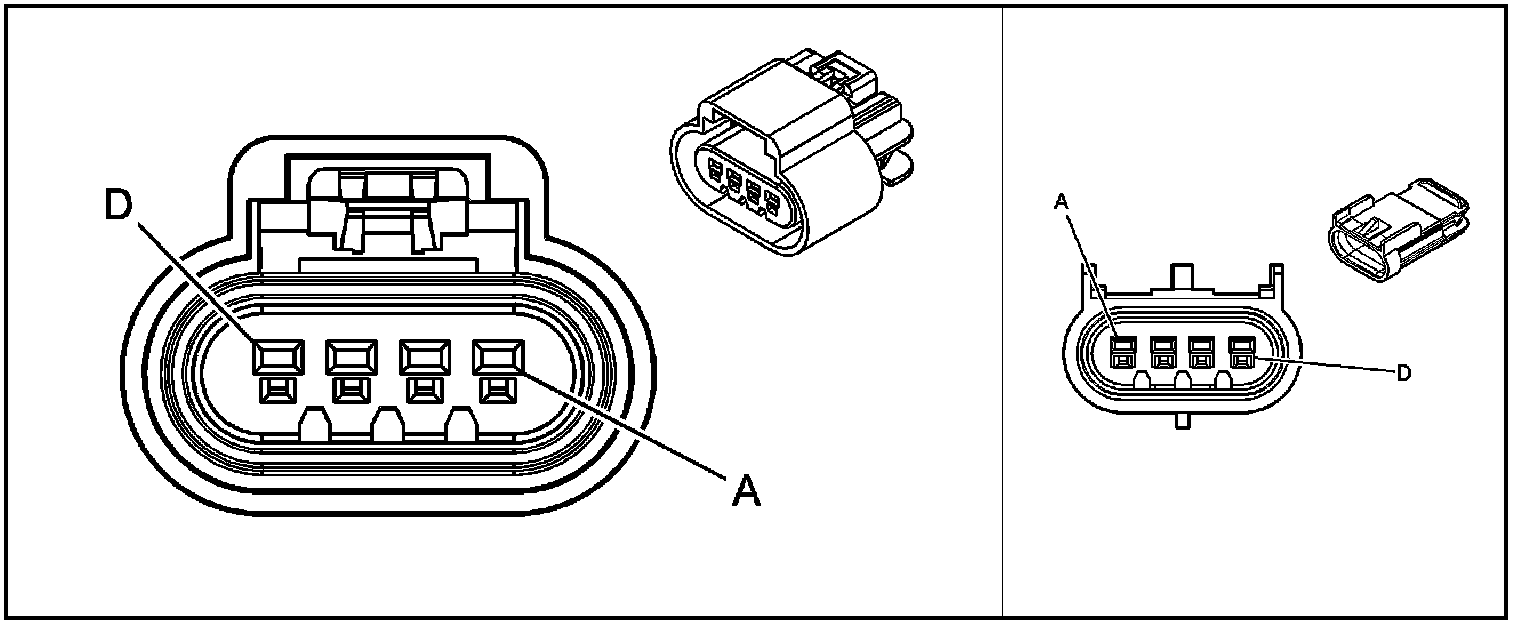

Inline Harness Connector End Views

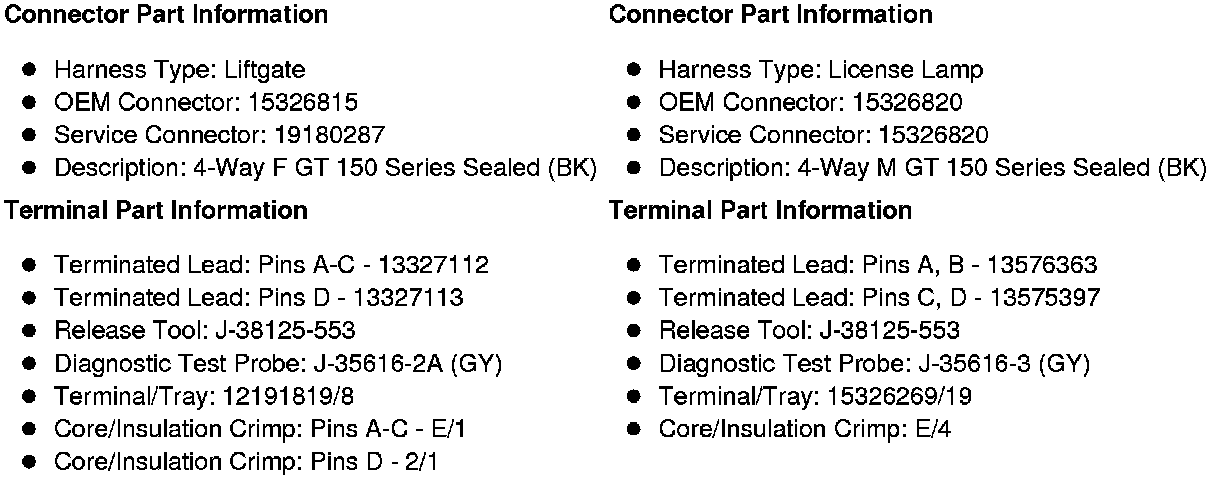

X900 Liftgate Harness to License Lamp Harness (E52 or TB7 with UVC)
