X421

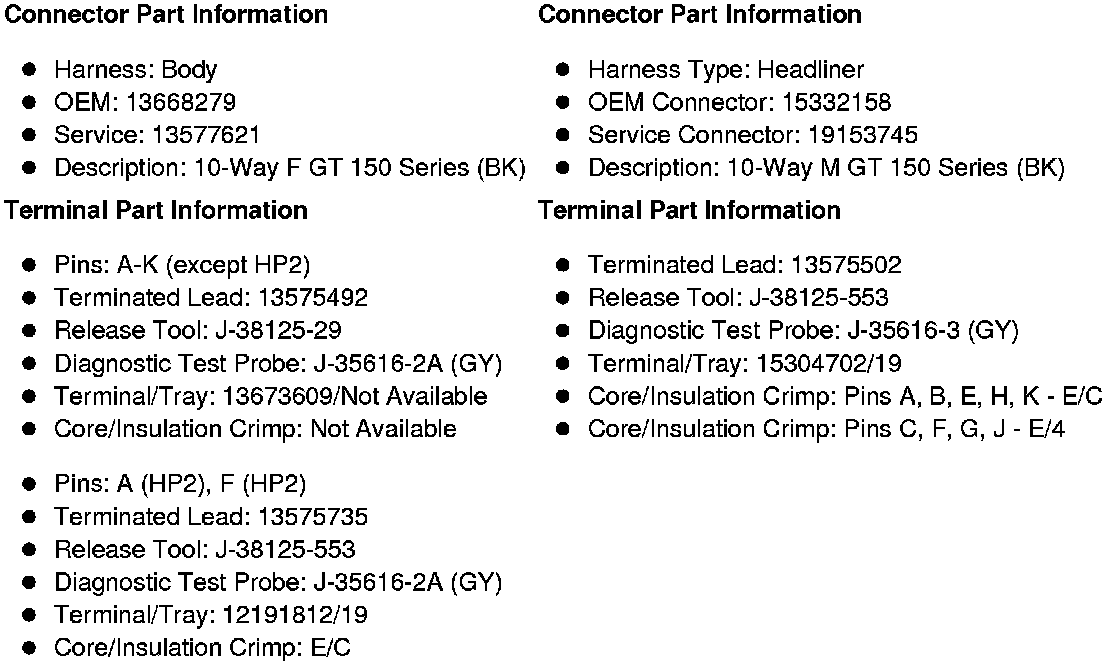

Inline Harness Connector End Views

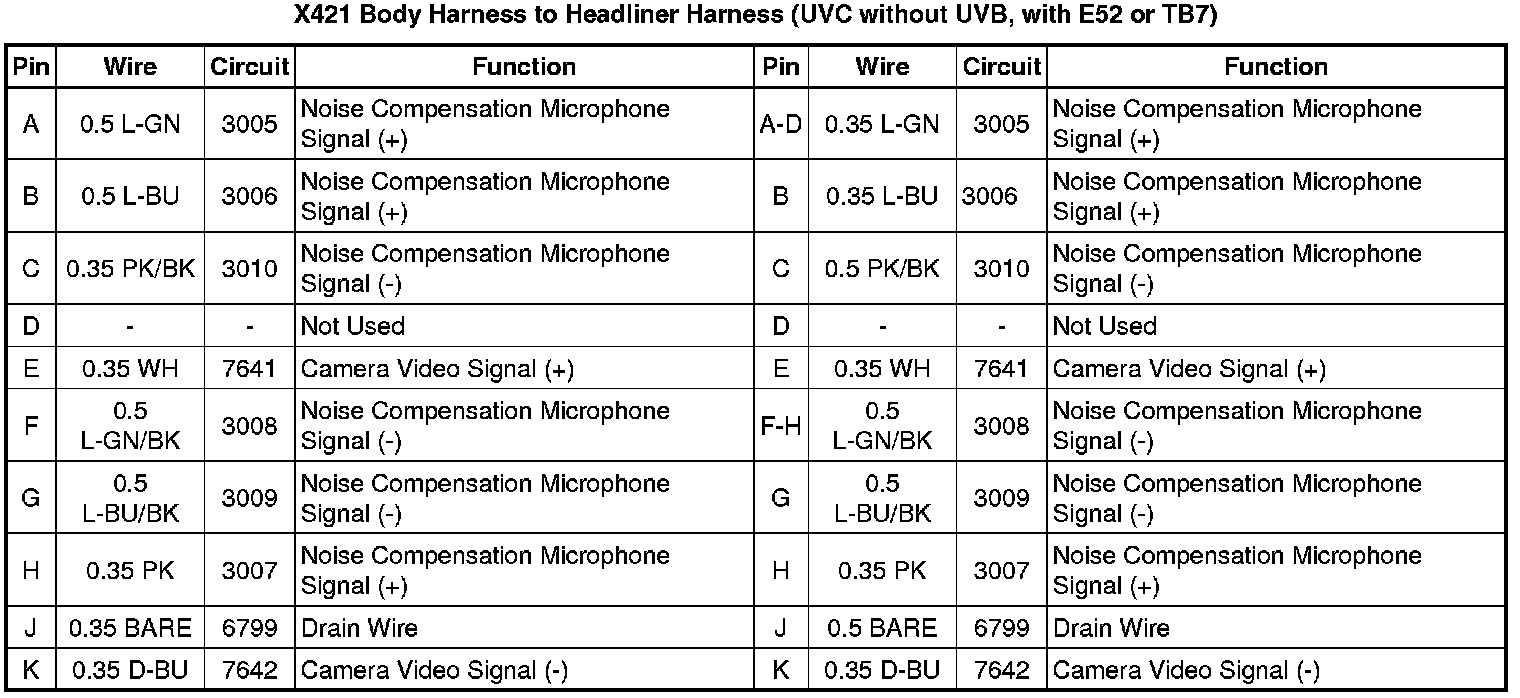

X421 Body Harness to Headliner Harness (UVC without UVB, with E52 or TB7)
