X88 or Z88, With E52
X88 or Z88, With E52
Inline Harness Connector End Views

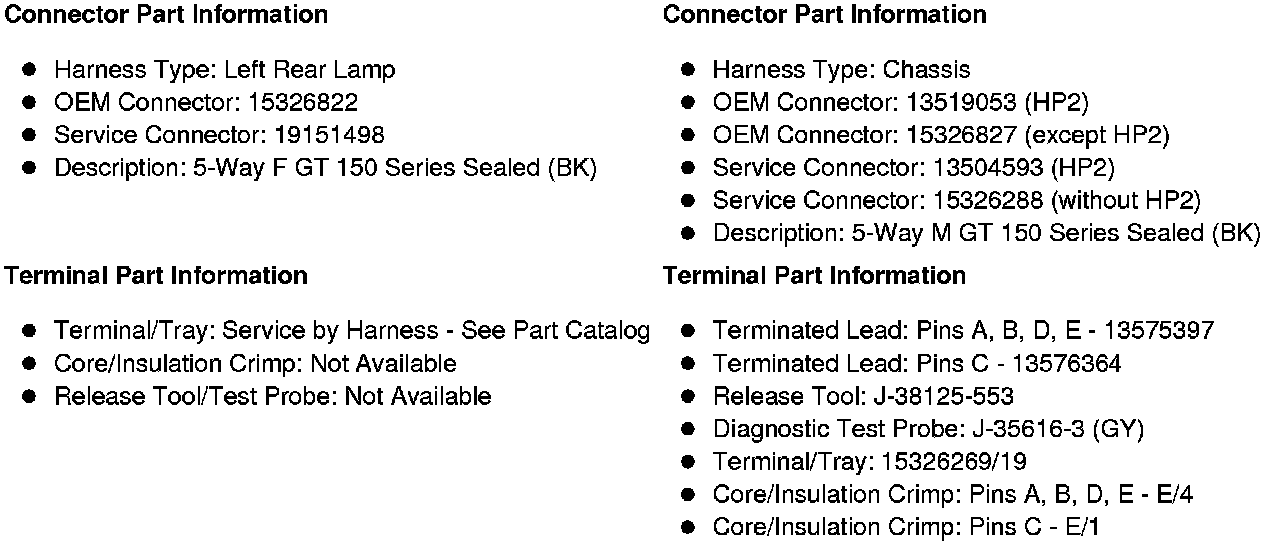

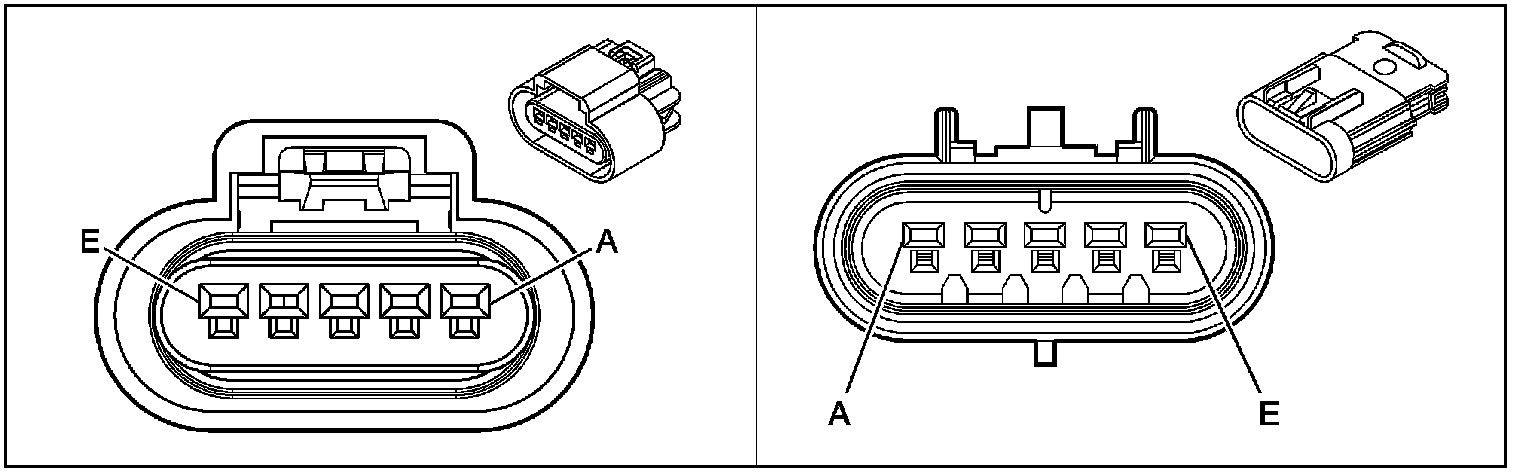

X411 Left Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)
