UD7 Without E52 or TB7

Inline Harness Connector End Views

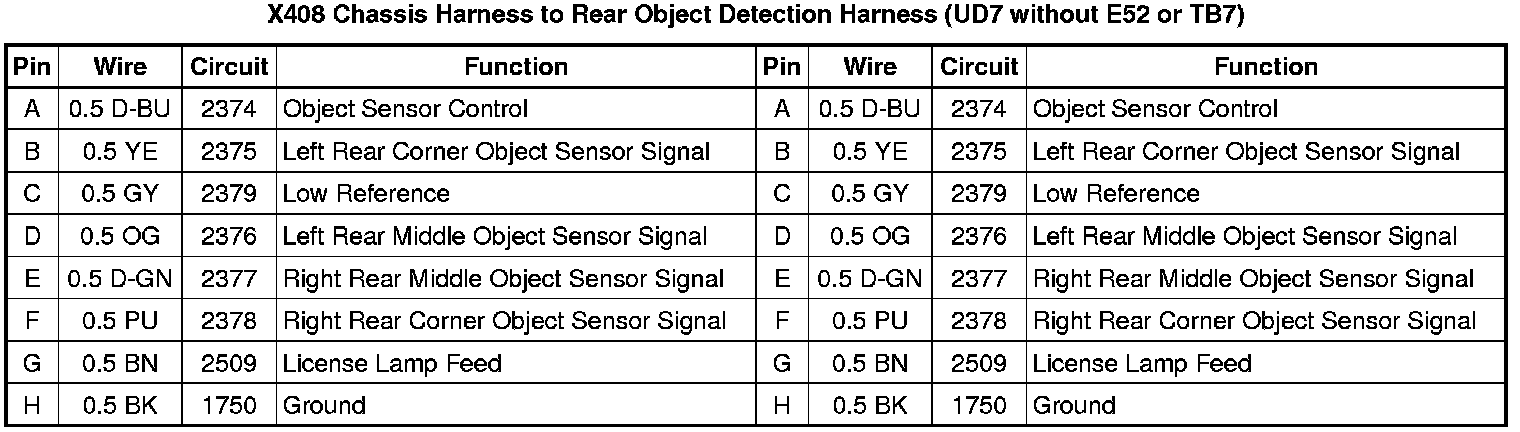

X408 Chassis Harness to Rear Object Detection Harness (UD7 without E52 or TB7)
