Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Number >> X400 - X499 >> X405

X405

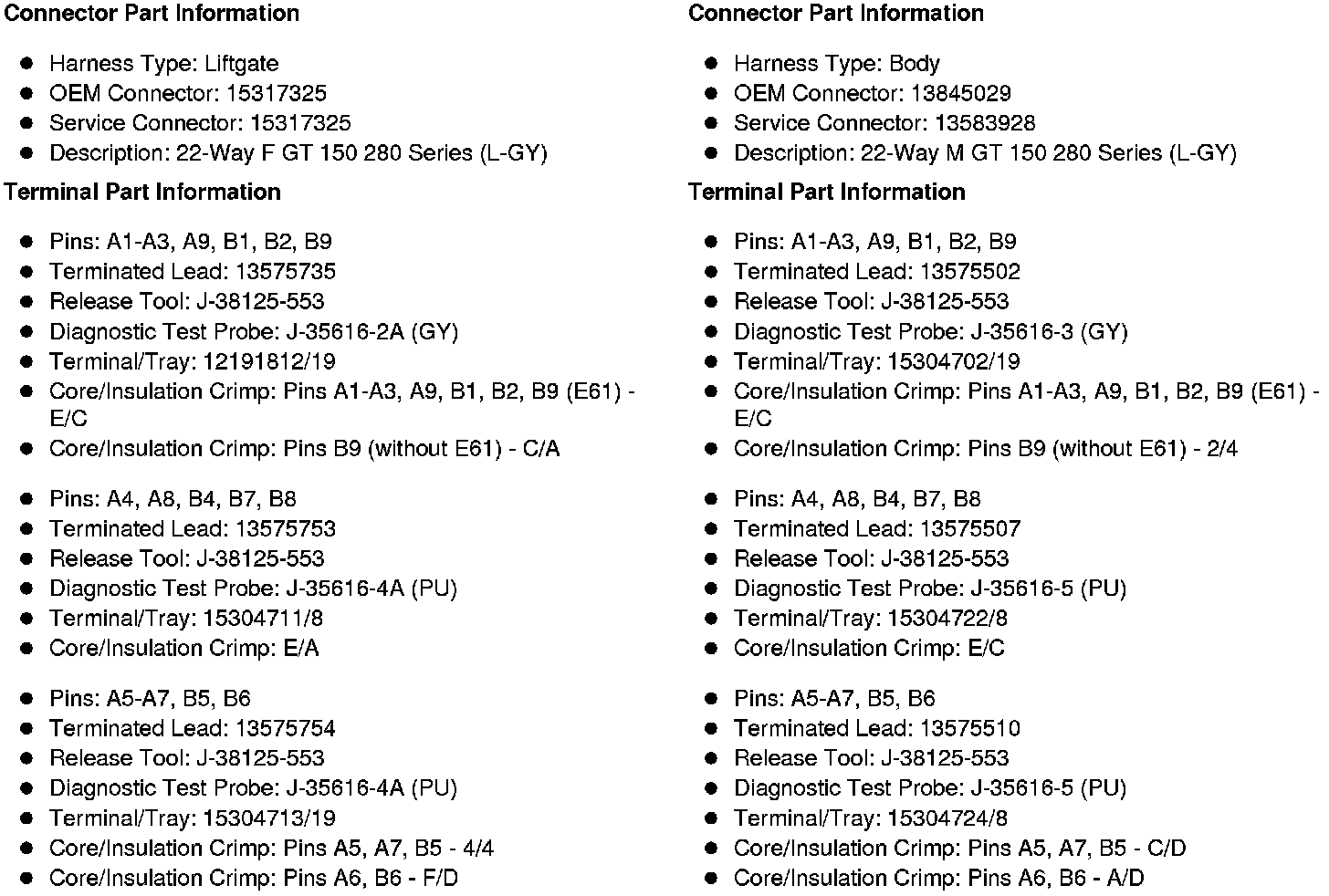

Inline Harness Connector End Views

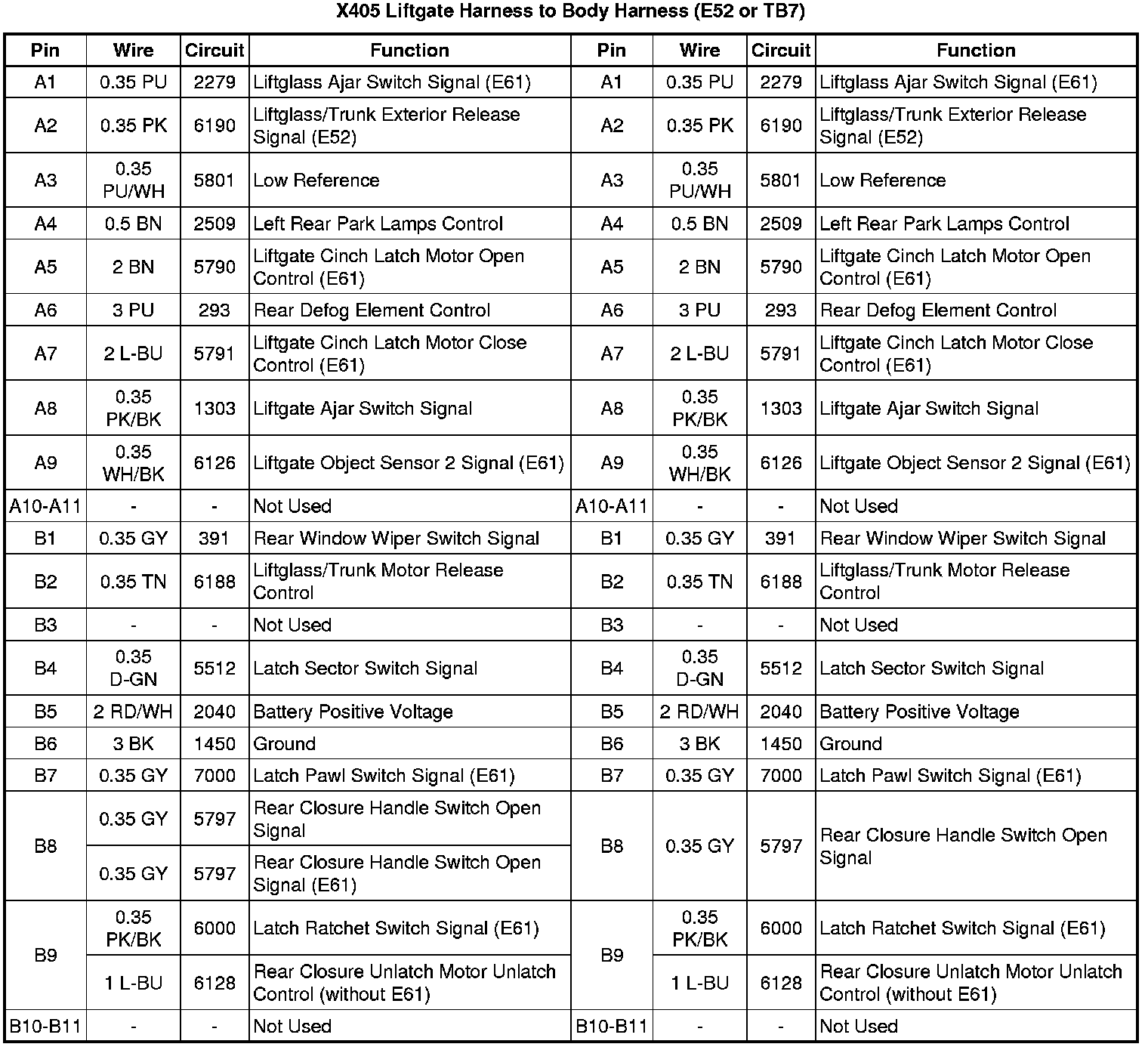

X405 Liftgate Harness to Body Harness (E52 or TB7)
