X351




Inline Harness Connector End Views

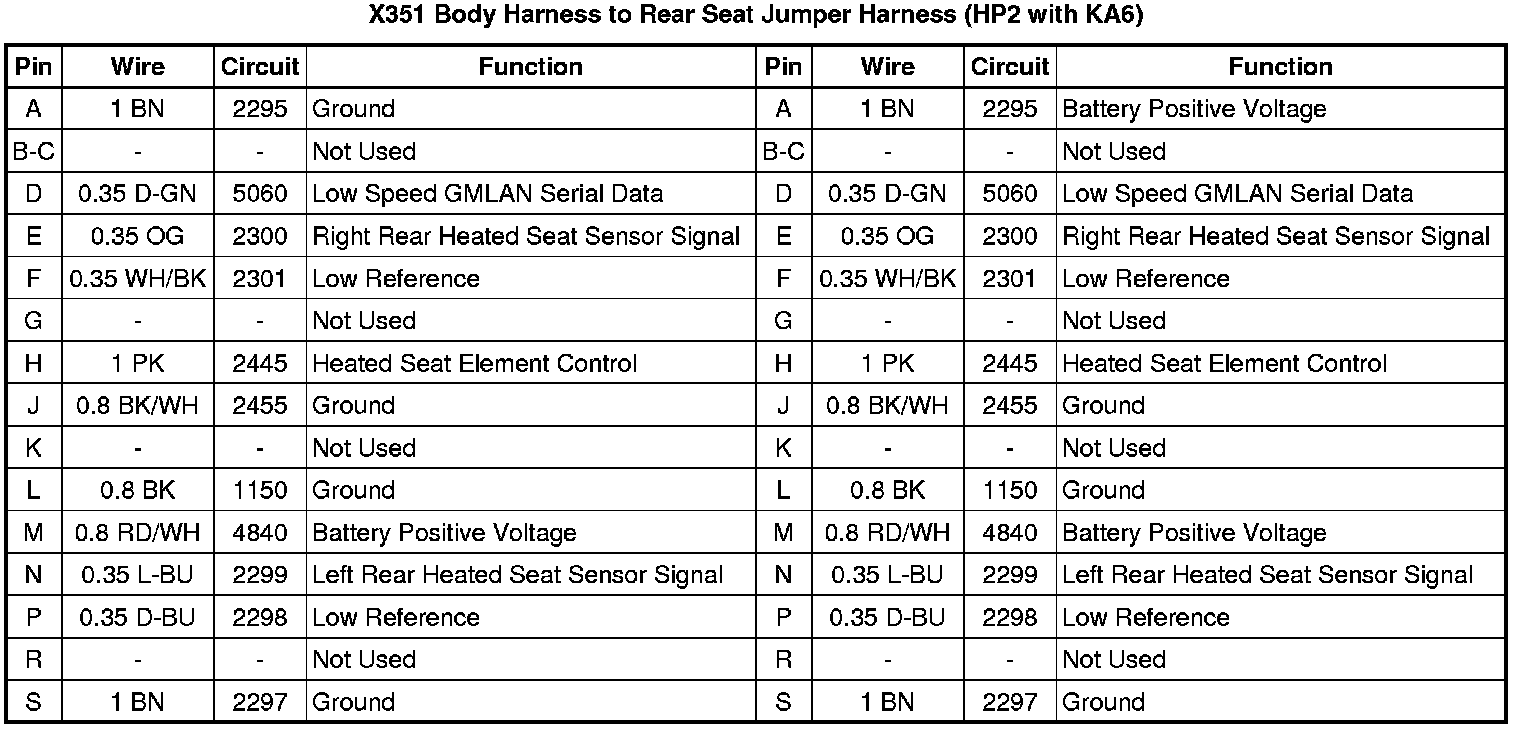

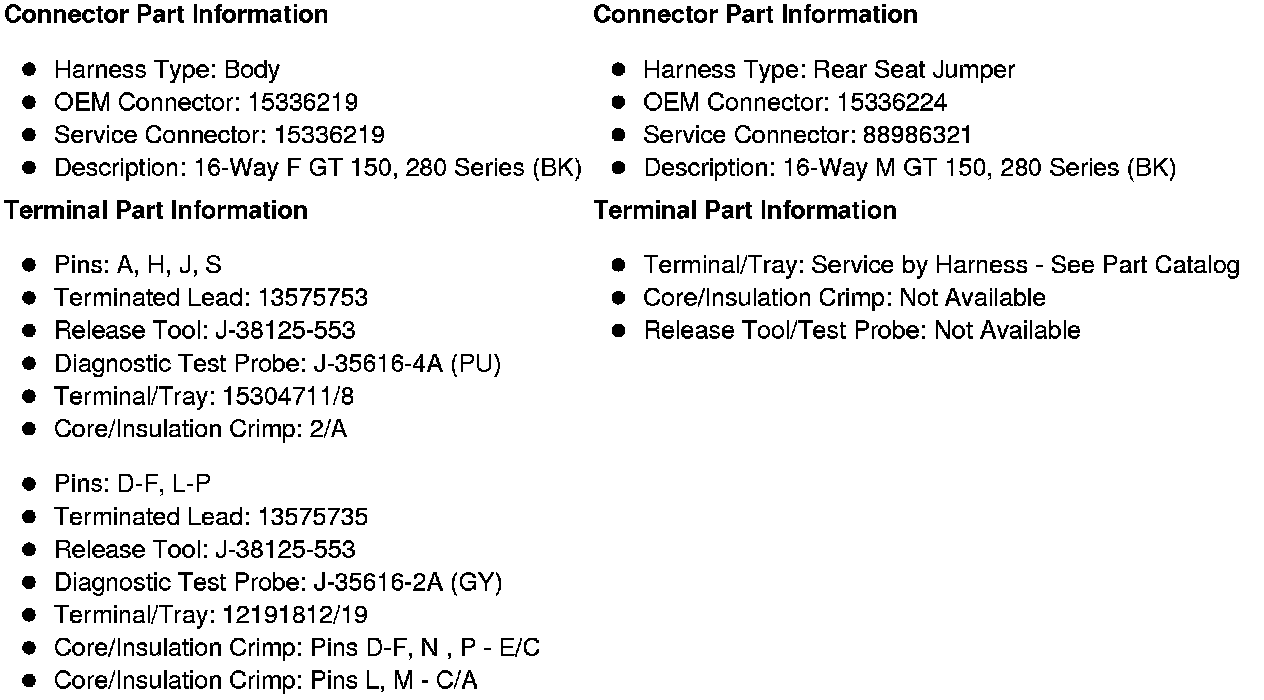

X351 Body Harness to Rear Seat Jumper Harness (HP2 with KA6)
