X300




Inline Harness Connector End Views

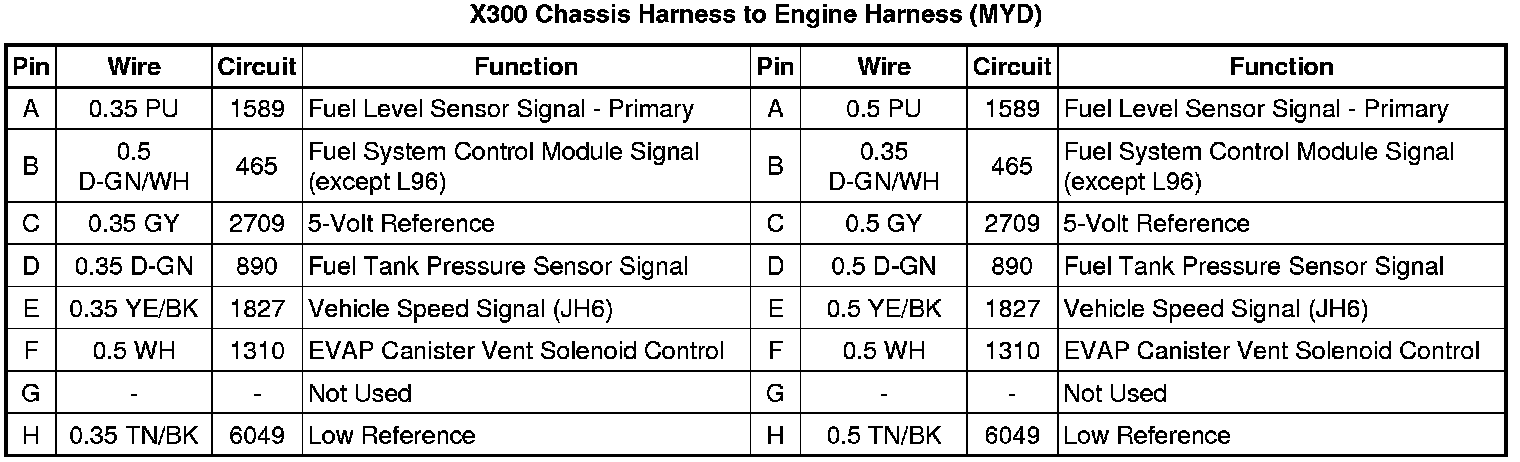

X300 Chassis Harness to Engine Harness (MYD)

















Inline Harness Connector End Views

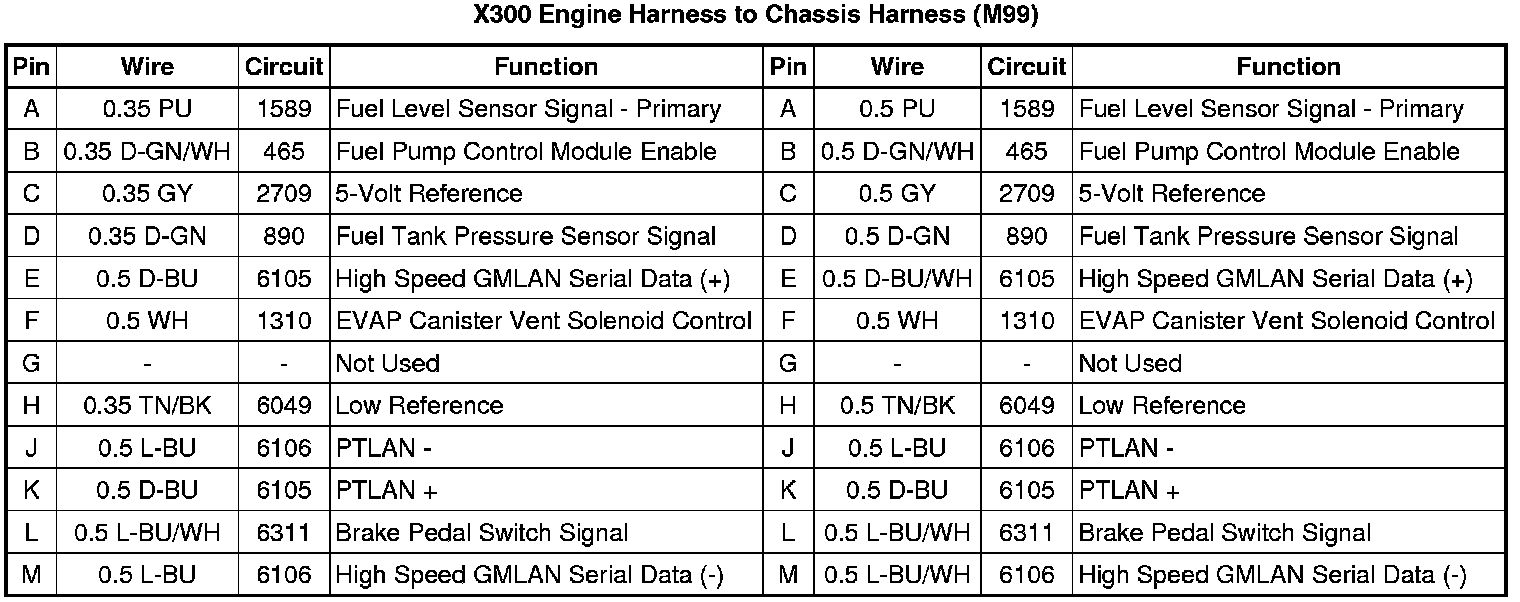

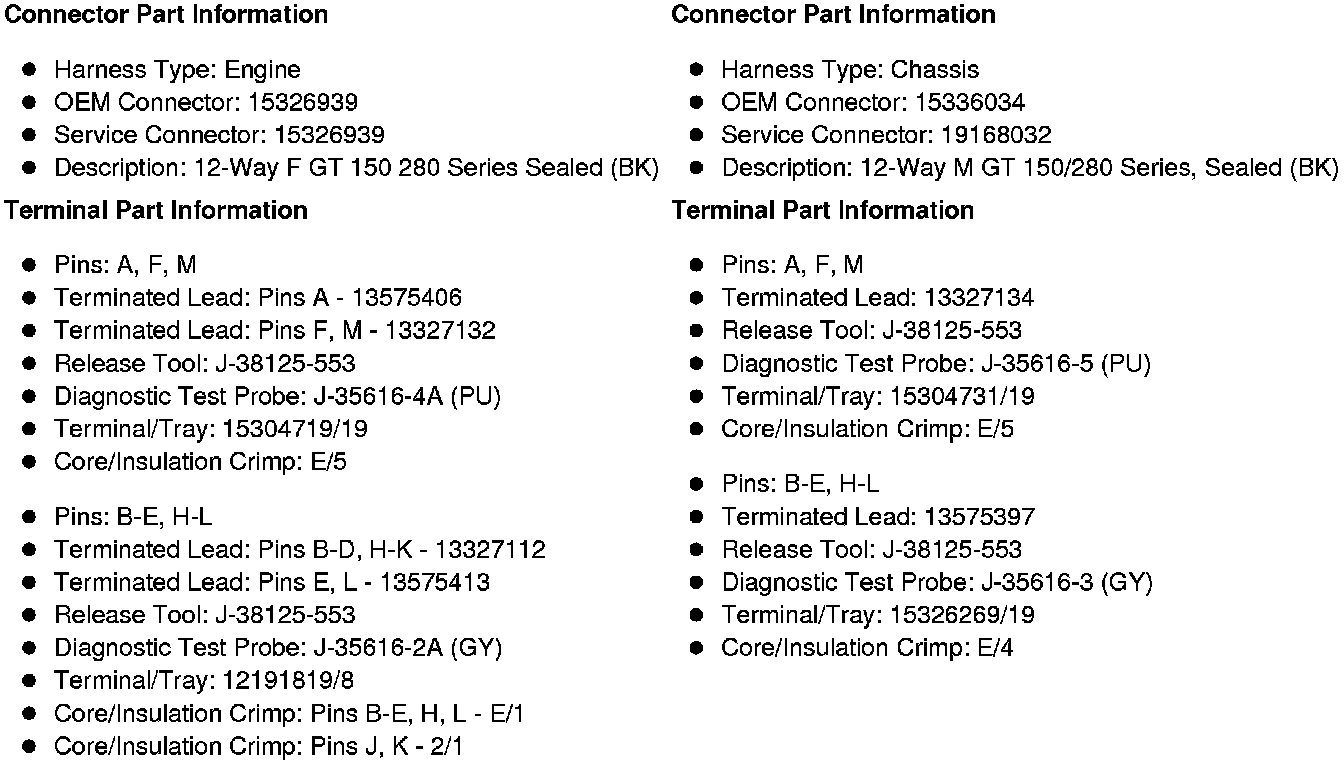

X300 Engine Harness to Chassis Harness (M99)
