X211

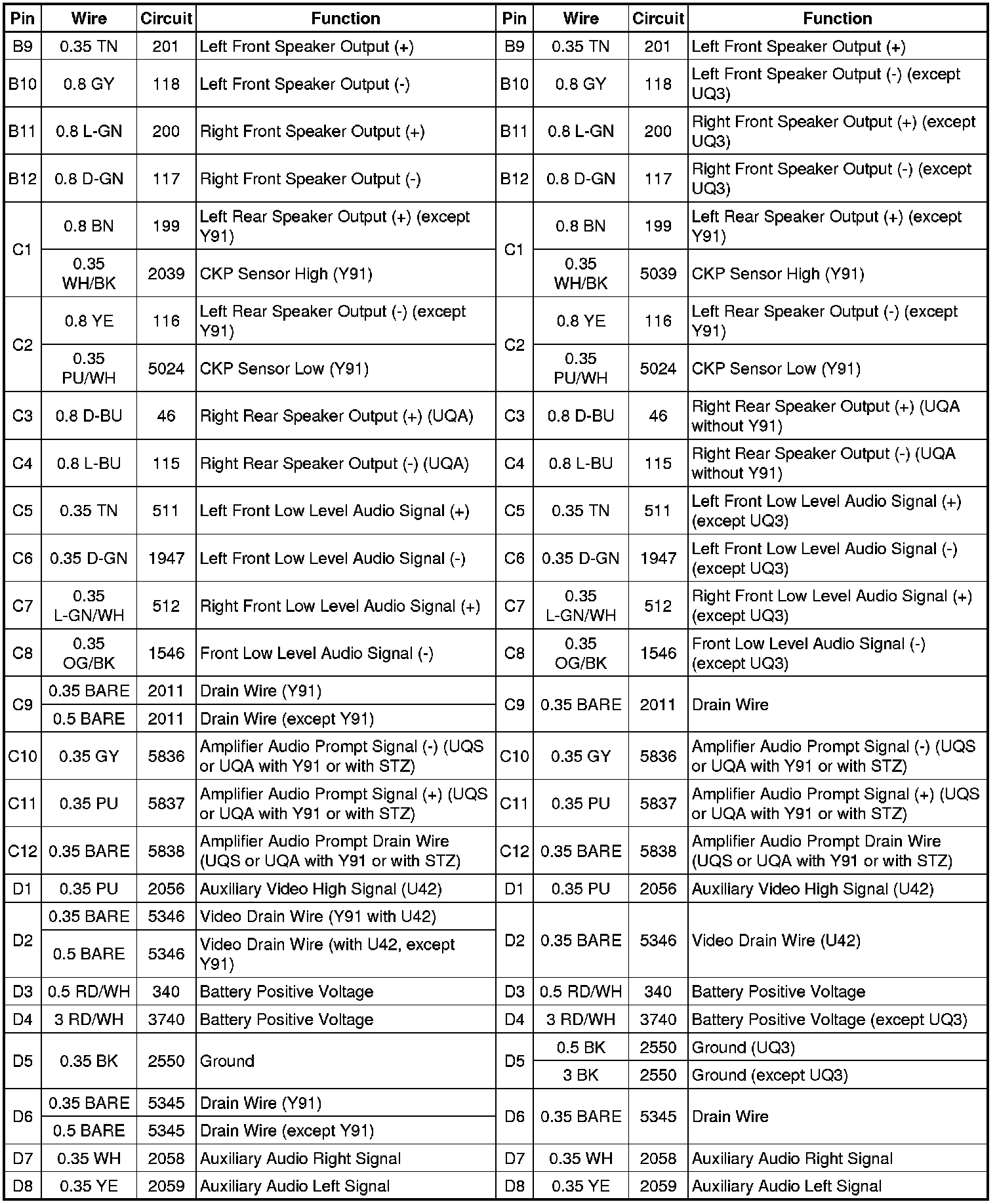

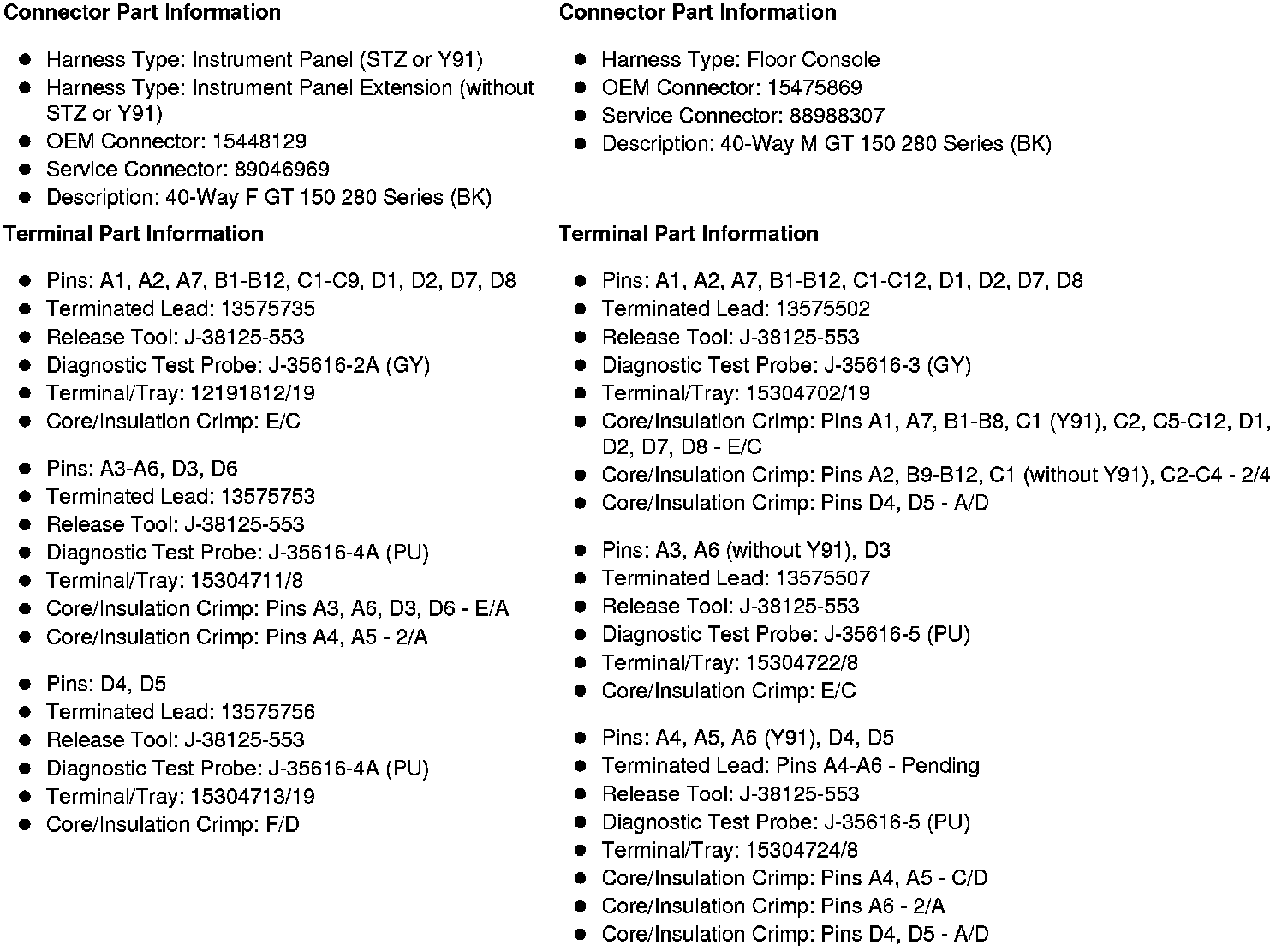

Inline Harness Connector End Views

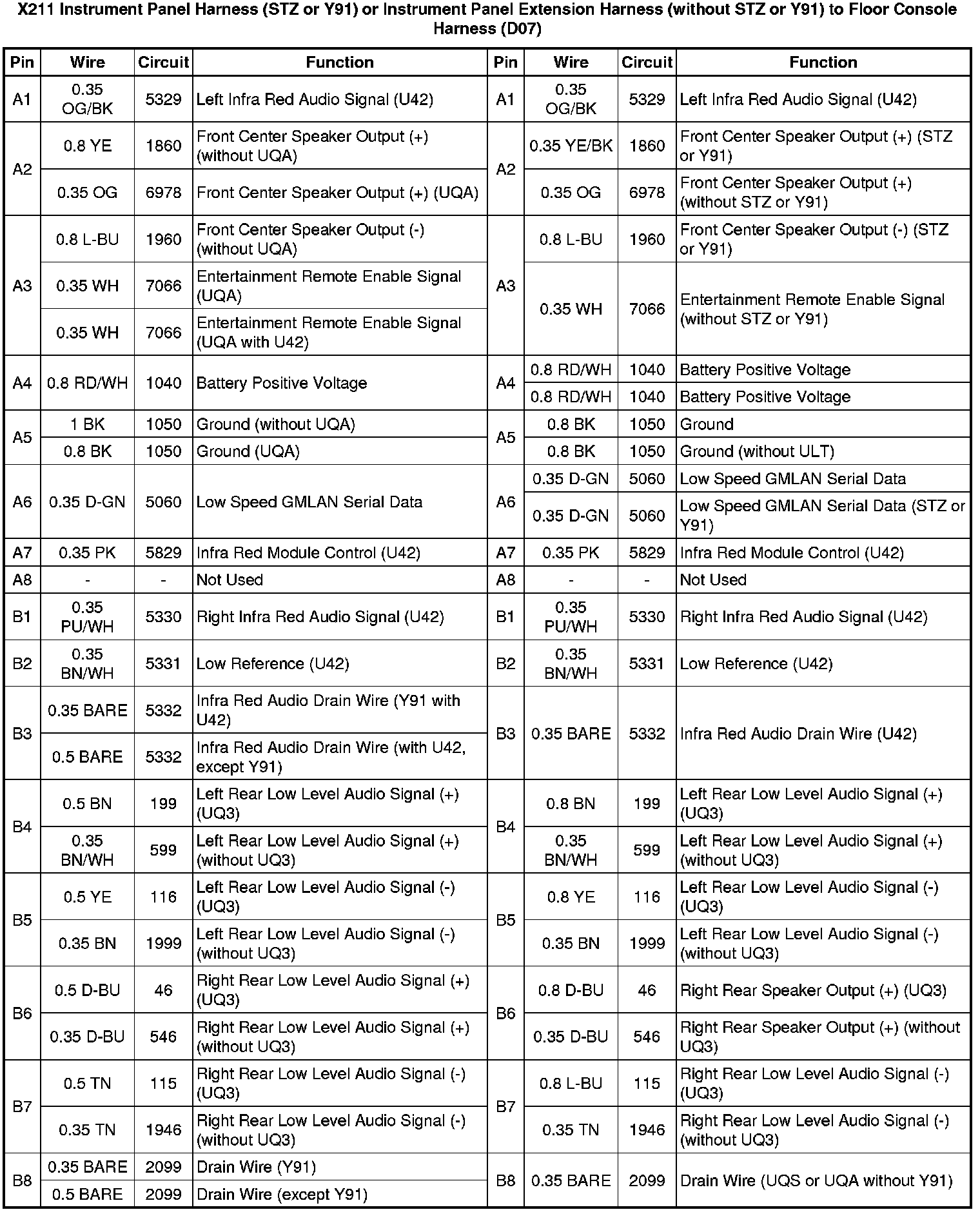

X211 Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) to Floor Console Harness (D07)
