X210
X210
Inline Harness Connector End Views

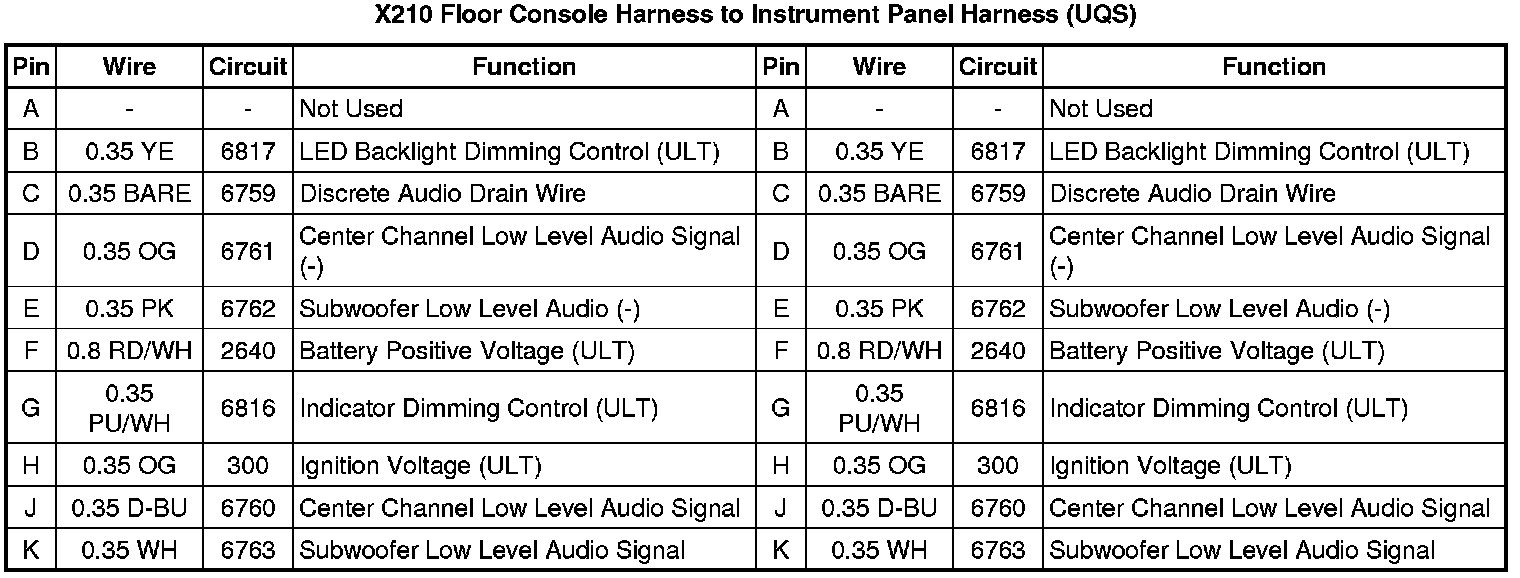

X210 Floor Console Harness to Instrument Panel Harness (UQS)
