X206




Inline Harness Connector End Views

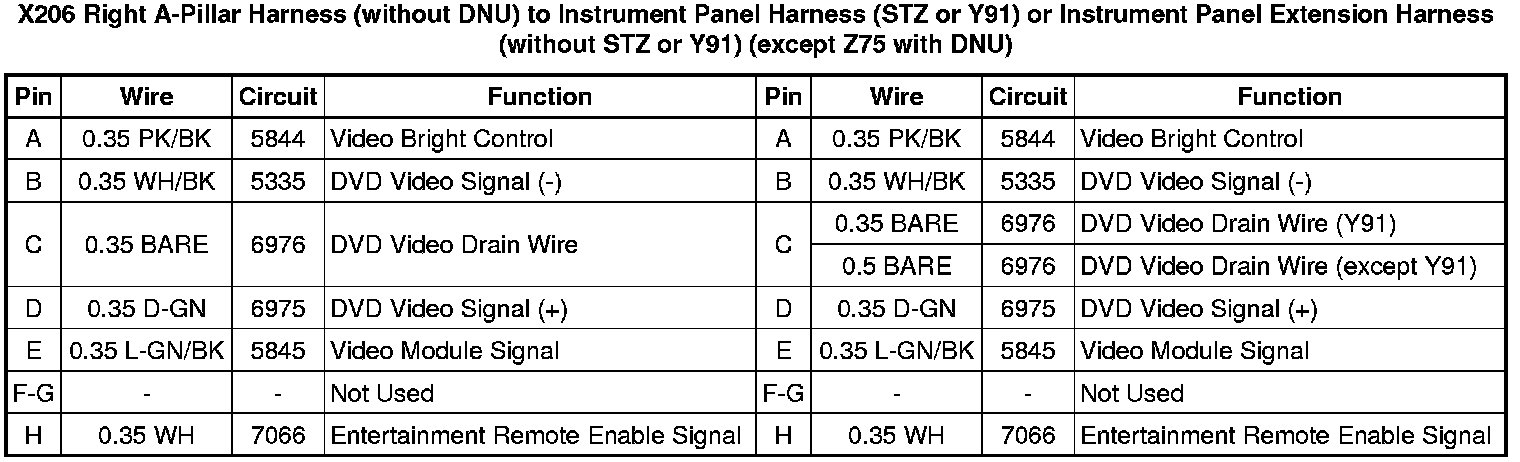

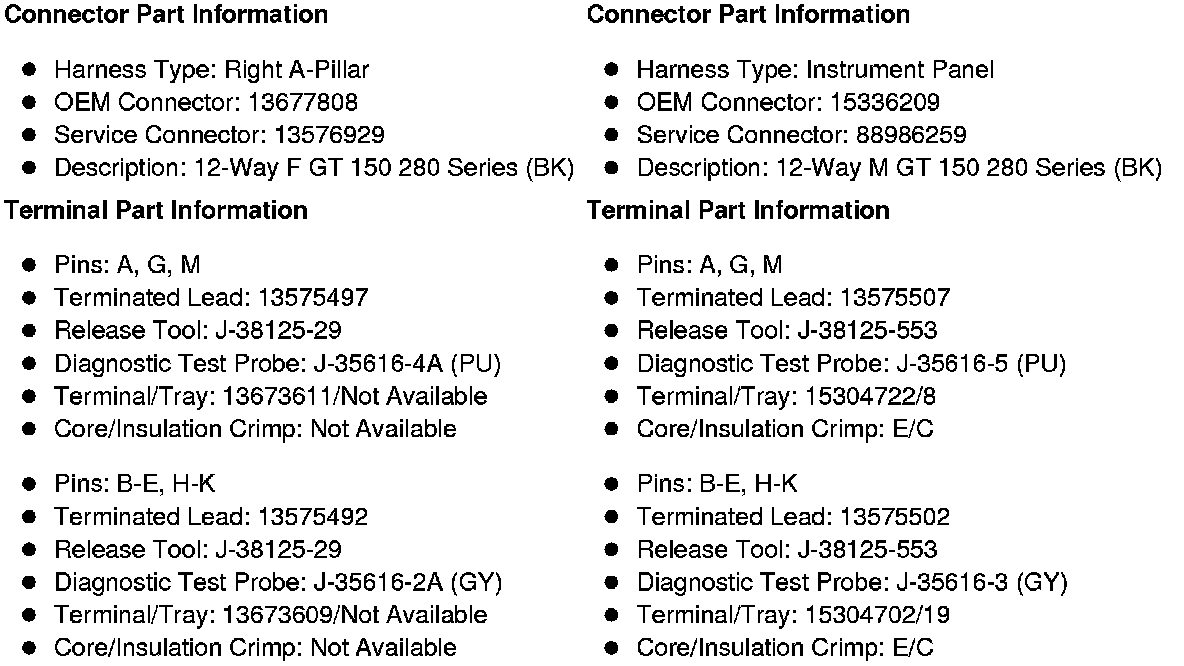

X206 Right A-Pillar Harness (without DNU) to Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) (except Z75 with DNU)

















Inline Harness Connector End Views

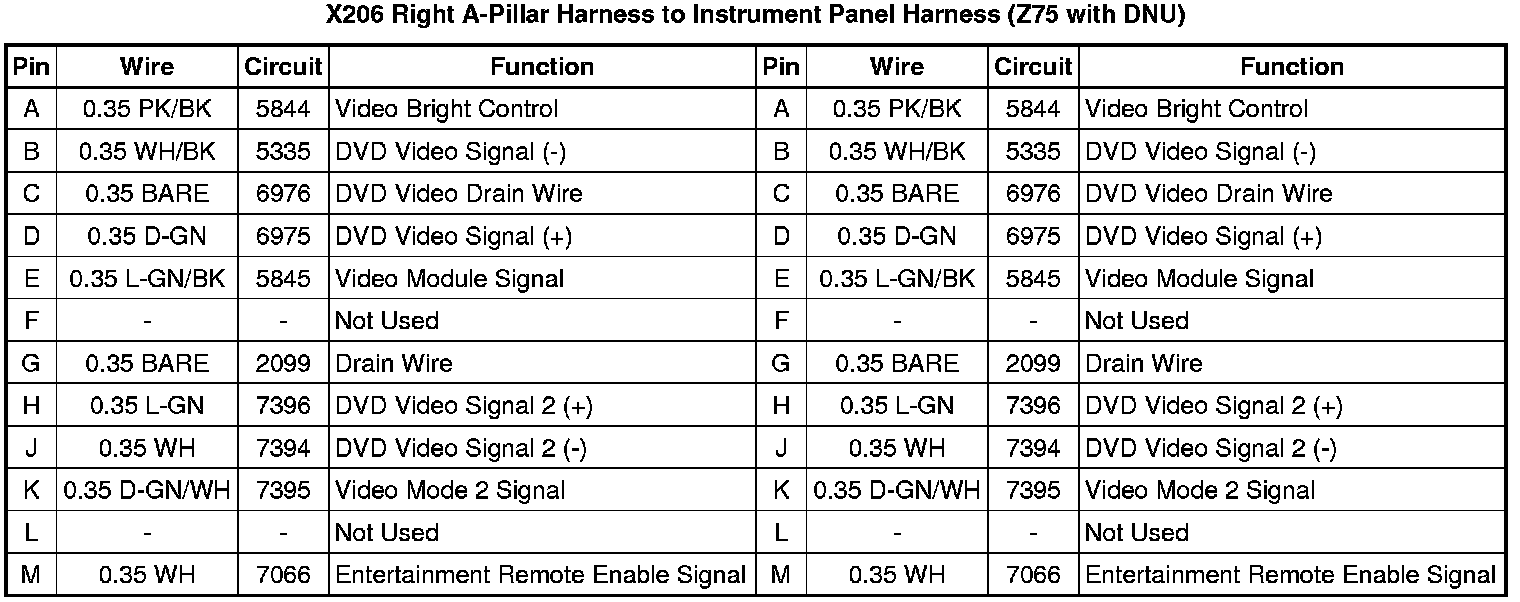

X206 Right A-Pillar Harness to Instrument Panel Harness (Z75 with DNU)
