Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Number >> X200 - X299 >> X203

X203

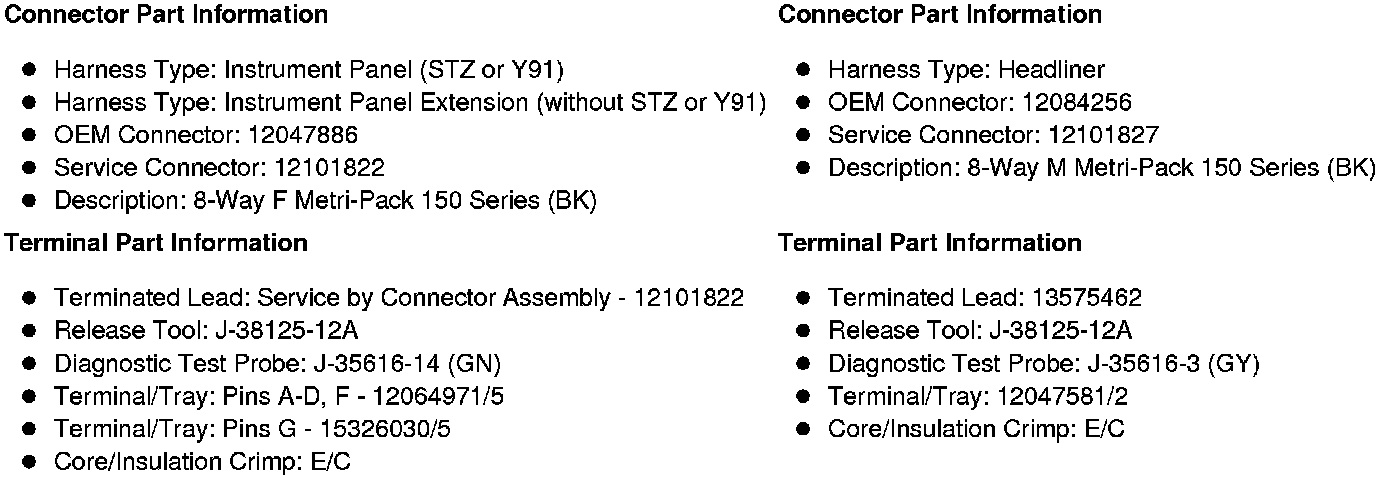

Inline Harness Connector End Views

X203 Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) to Headliner Harness (UE1)
