Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X100 - X199
>>
X109
X109

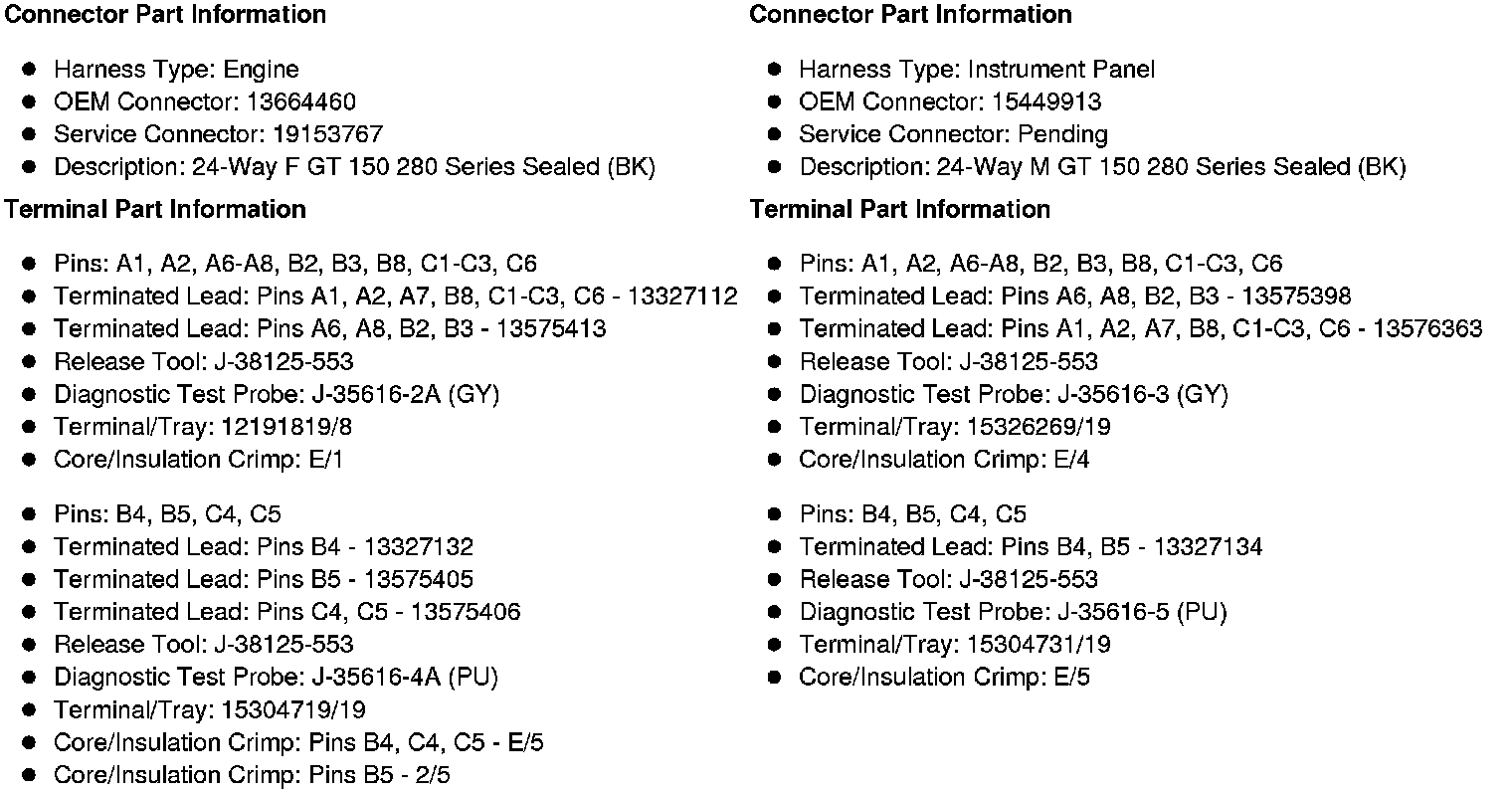

Inline Harness Connector End Views

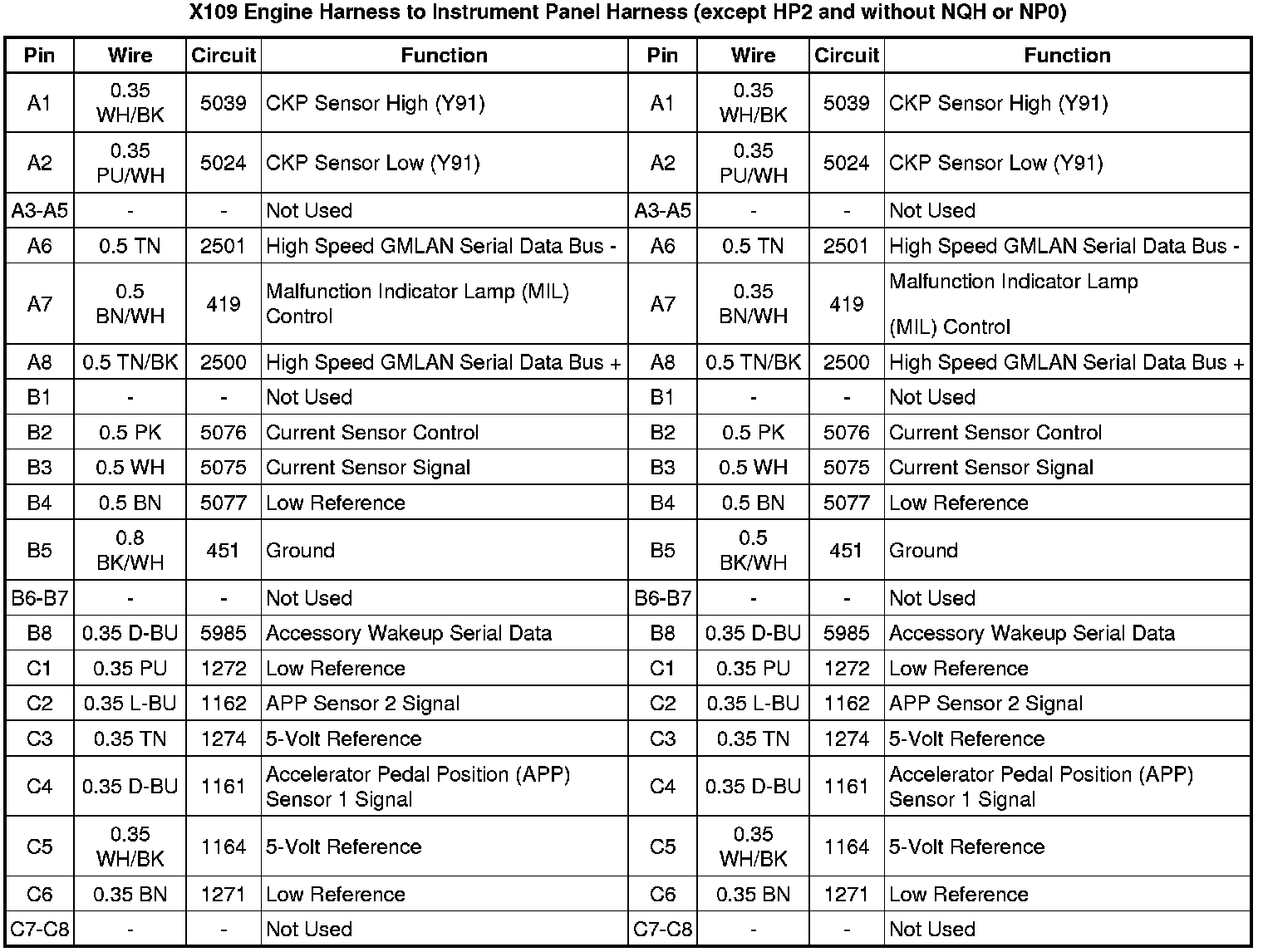

X109 Engine Harness to Instrument Panel Harness (except HP2 and without NQH or NP0)
