X102
X102

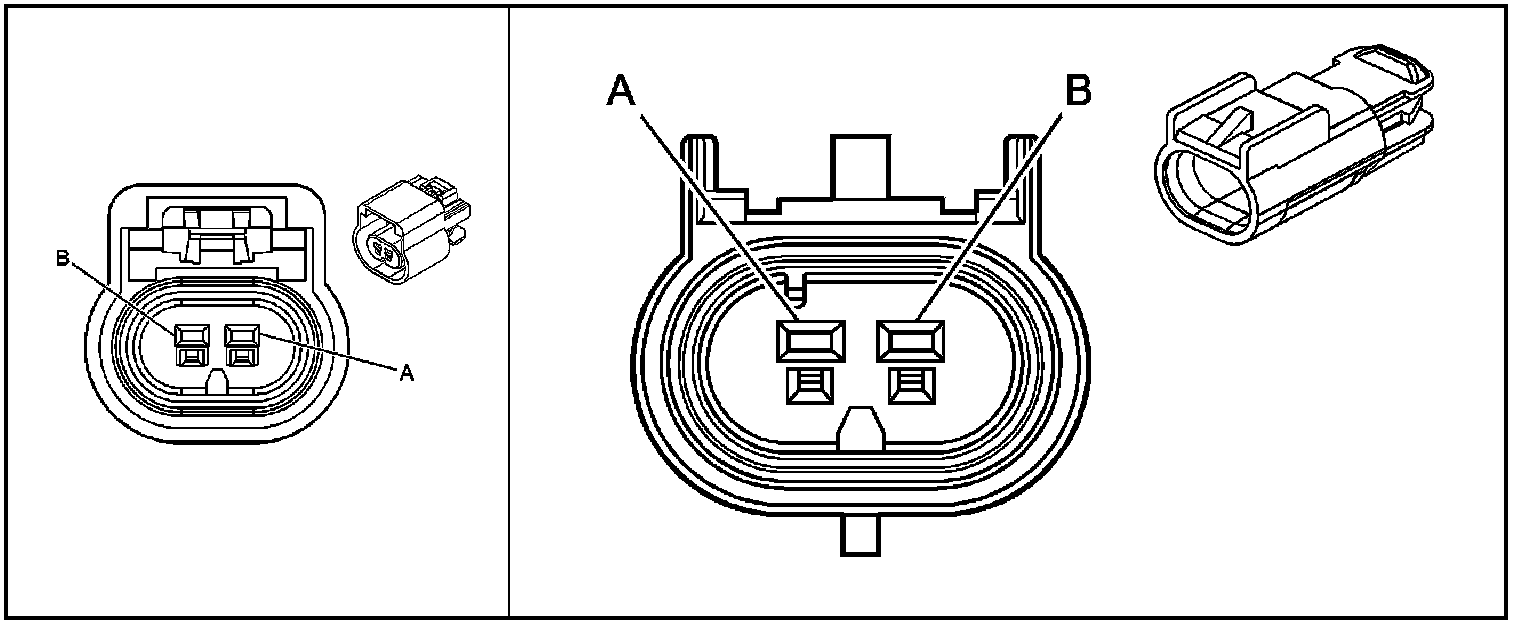

Inline Harness Connector End Views

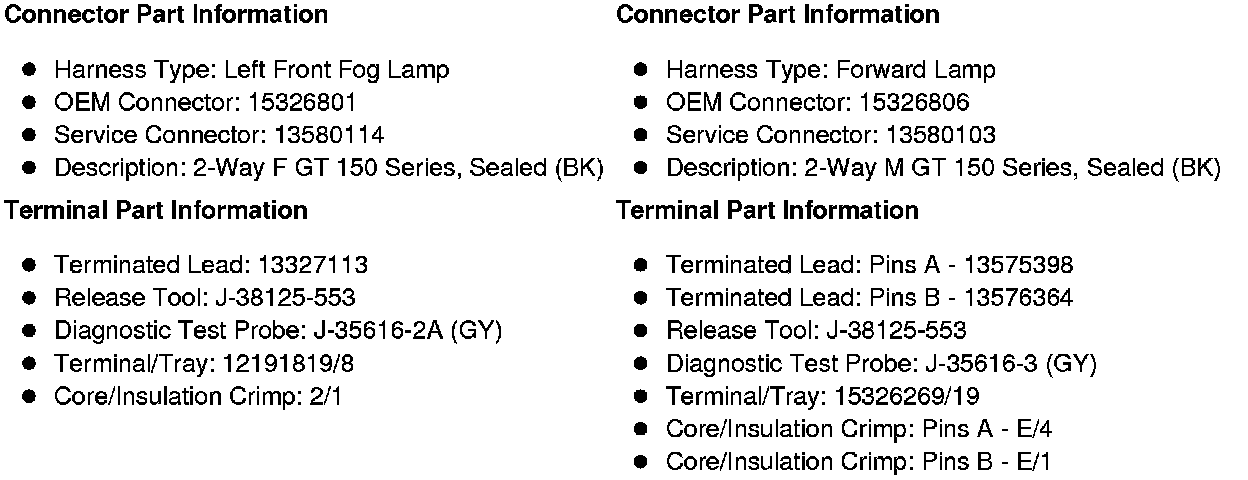

X102 Left Front Fog Lamp Harness to Forward Lamp Harness (X88 or Z88, with T96)
