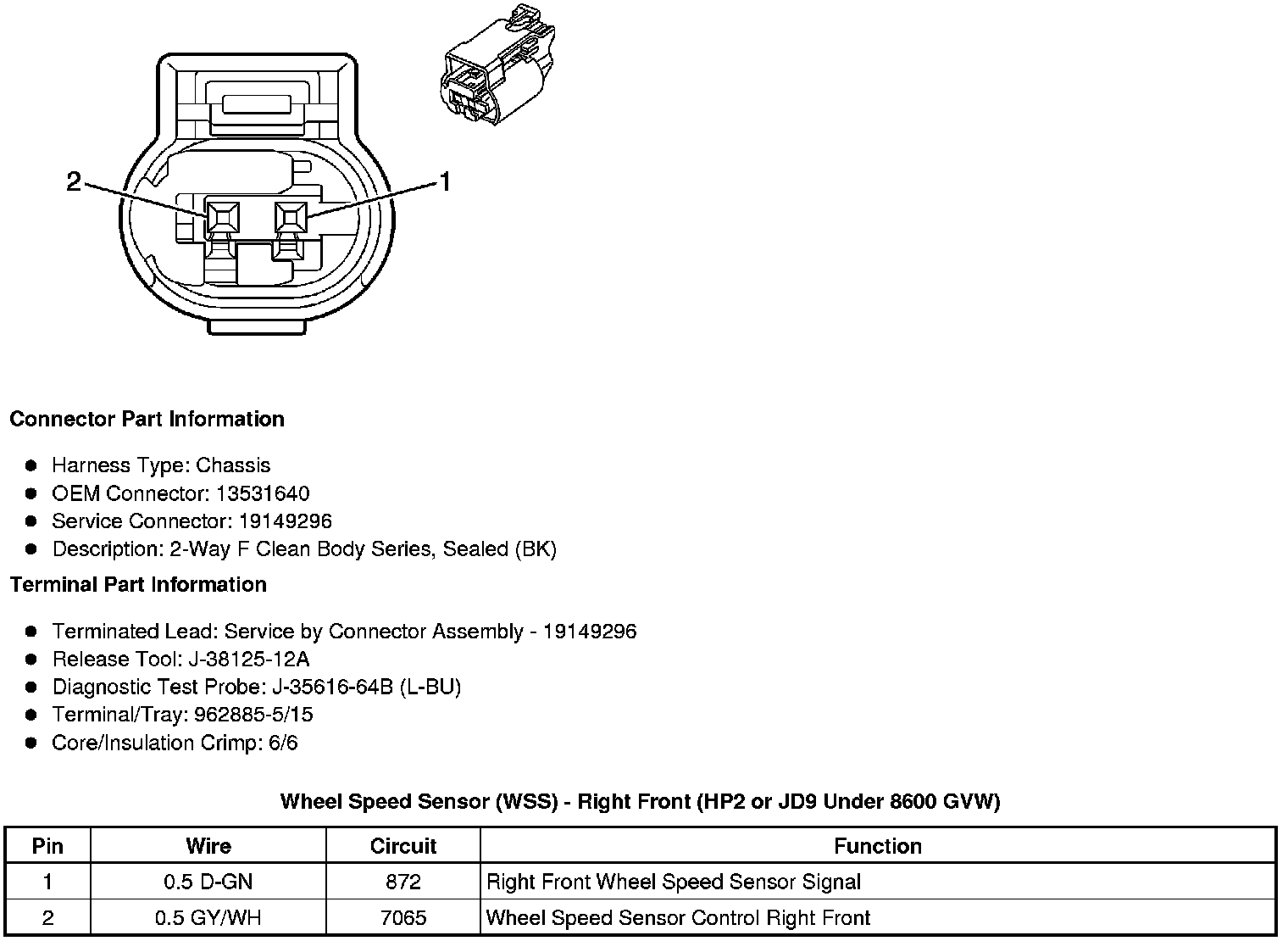

Wheel Speed Sensor (WSS) - Right Front (HP2 or JD9 Under 8600 GVW)




Component Connector End Views

Wheel Speed Sensor (WSS) - Right Front (HP2 or JD9 Under 8600 GVW)
