Valve Lifter Oil Manifold (VLOM) Assembly
Valve Lifter Oil Manifold (VLOM) Assembly
Component Connector End Views

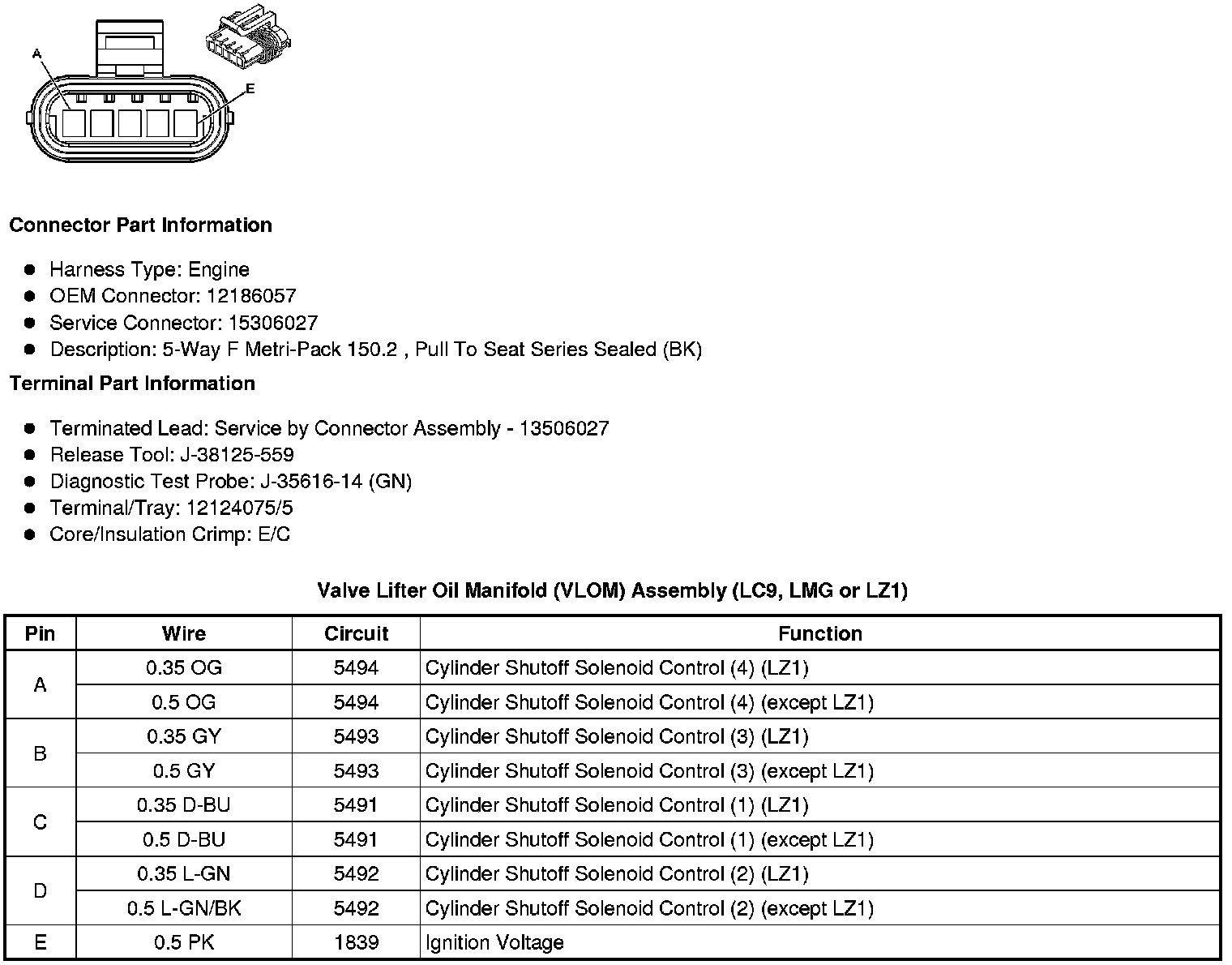

Valve Lifter Oil Manifold (VLOM) Assembly (LC9, LMG or LZ1)
