Transfer Case Shift Control Module X1 (NQH or NP0)
Transfer Case Shift Control Module X1 (NQH or NP0)
Component Connector End Views

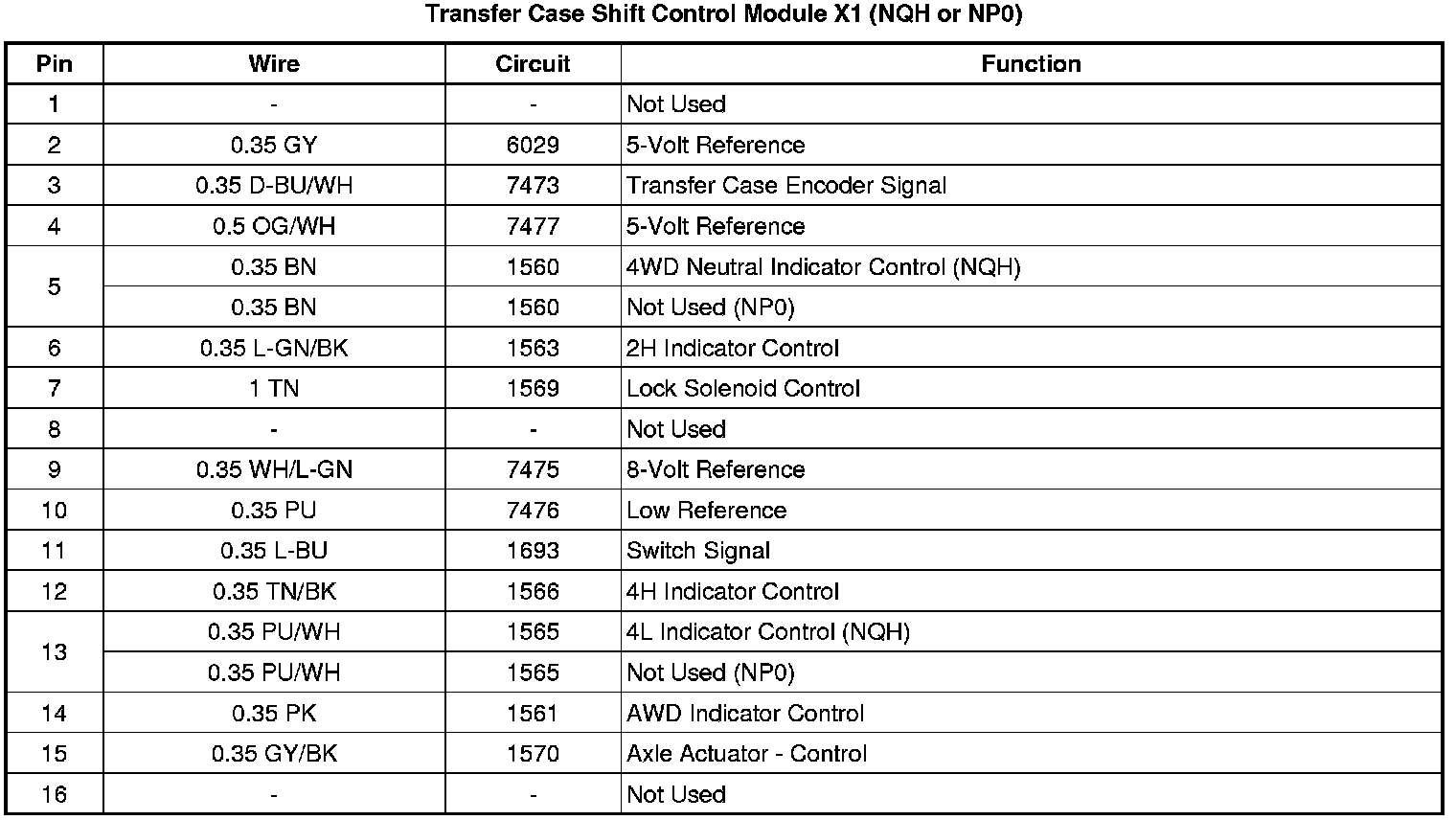

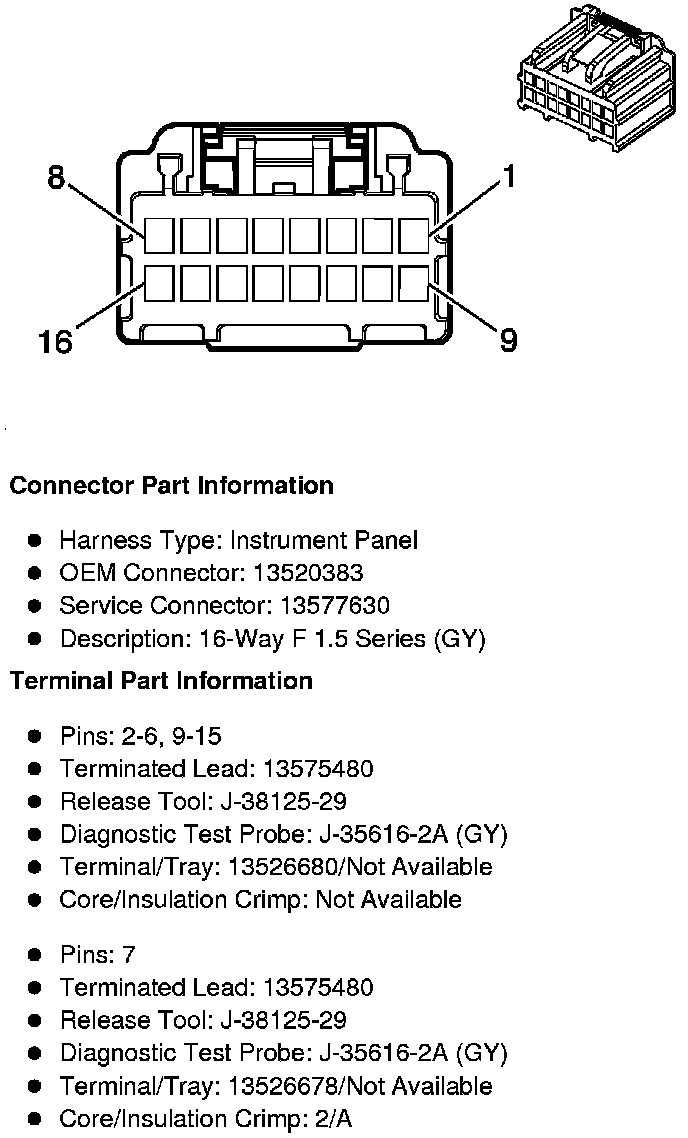

Transfer Case Shift Control Module X1 (NQH or NP0)
