Transfer Case Encoder Motor (NQH or NP0)
Transfer Case Encoder Motor (NQH or NP0)
Component Connector End Views

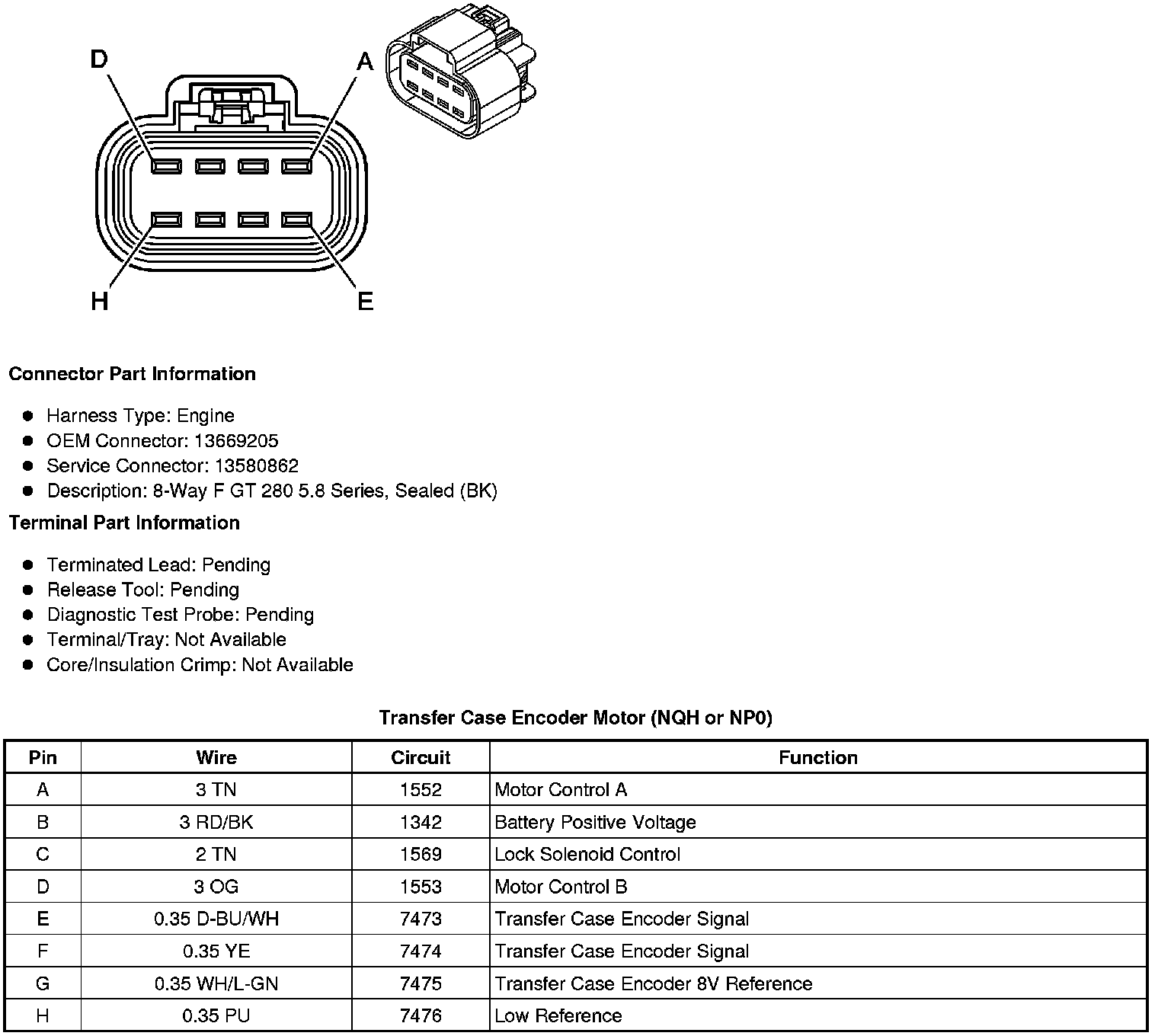

Transfer Case Encoder Motor (NQH or NP0)
