Suspension Position Sensor - Left Rear (Z55 or G69)
Suspension Position Sensor - Left Rear (Z55 or G69)

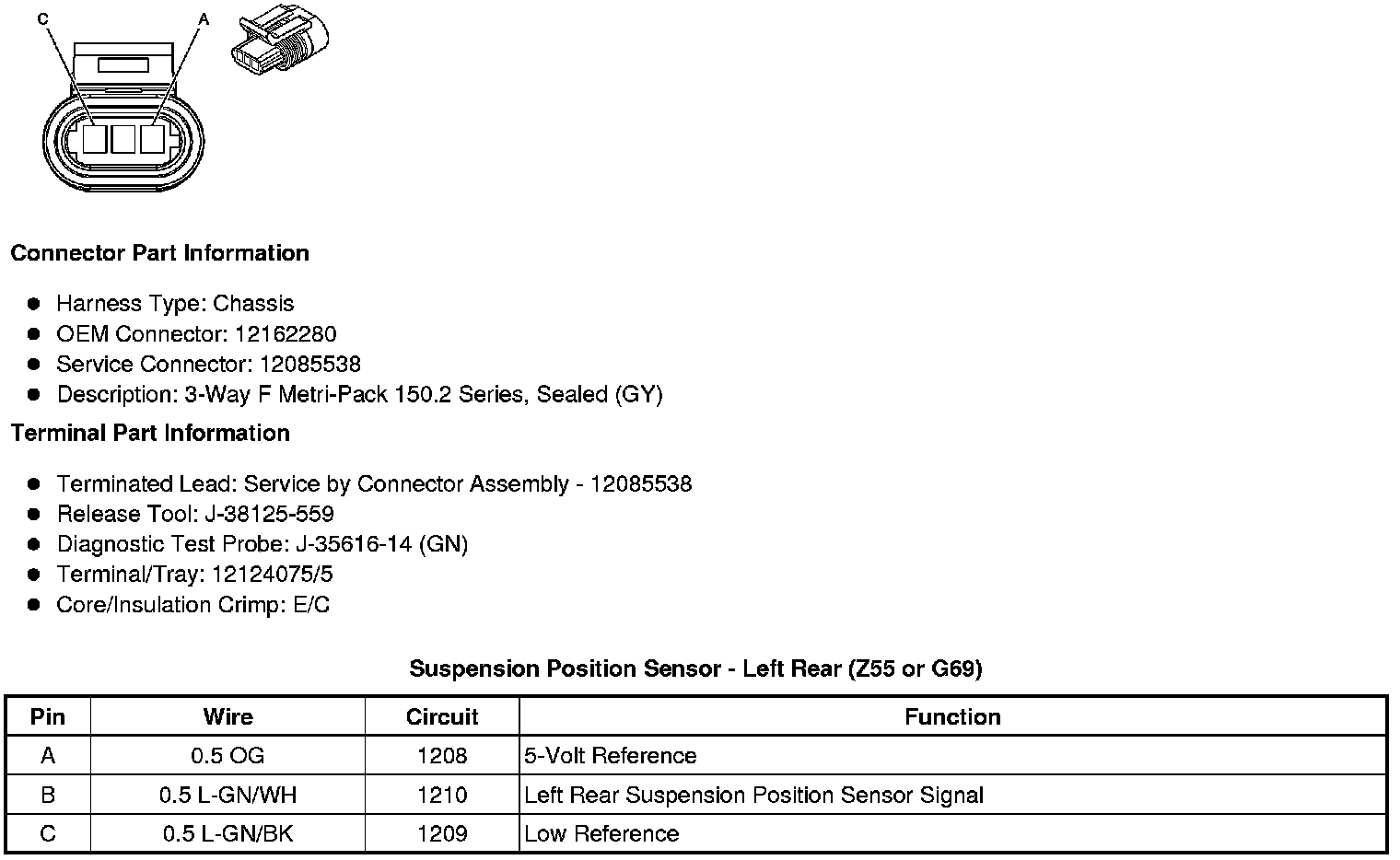

Component Connector End Views
Suspension
Position Sensor - Left Rear (Z55 or G69)
