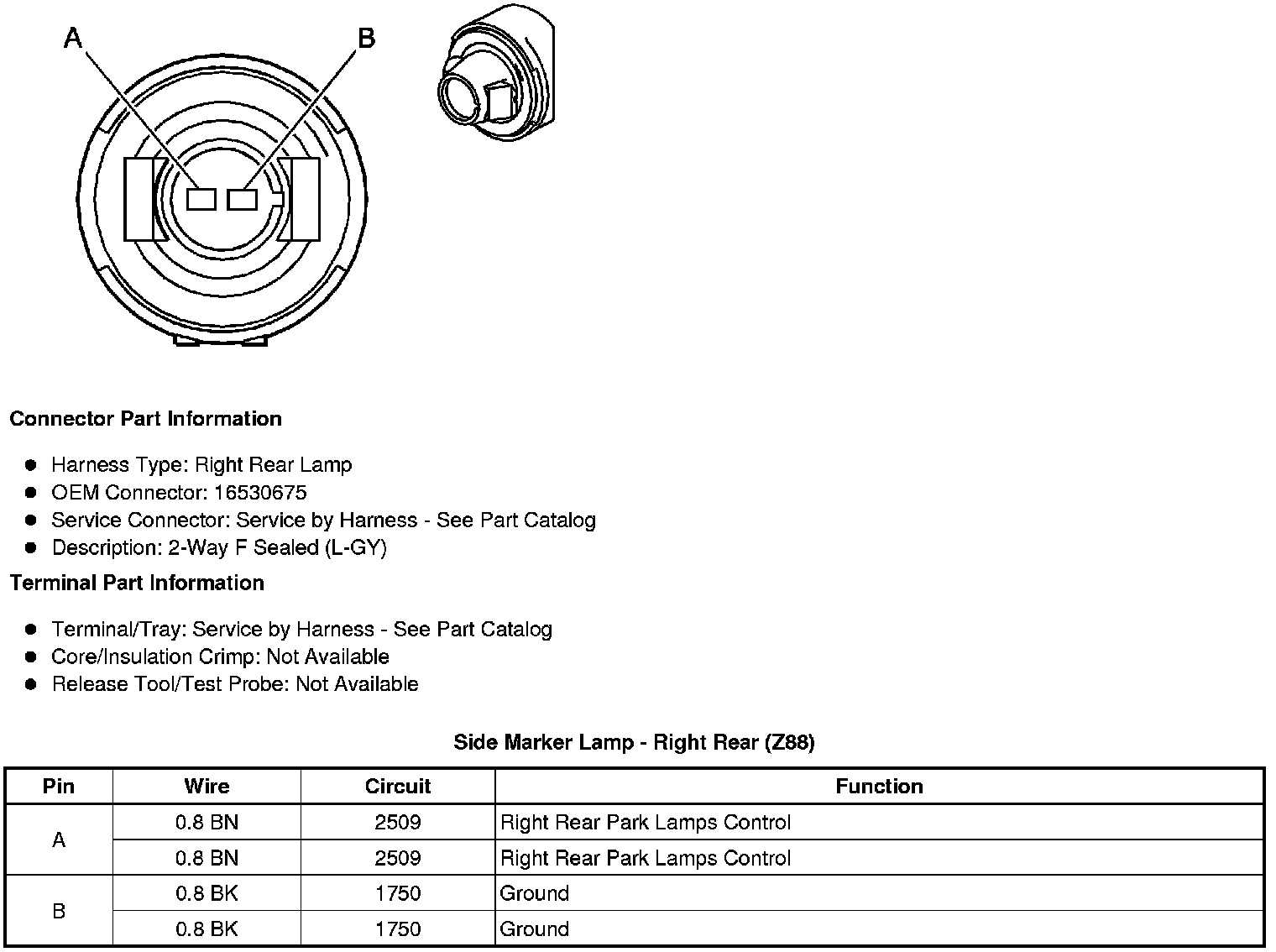

Side Marker Lamp - Right Rear (Z88)
Side Marker Lamp - Right Rear (Z88)
Component Connector End Views
Side Marker Lamp - Right Rear (Z88)
