LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Side Marker Lamp - Right Rear (X88 without E52 or TB7)
Side Marker Lamp - Right Rear (X88 without E52 or TB7)
Component Connector End Views

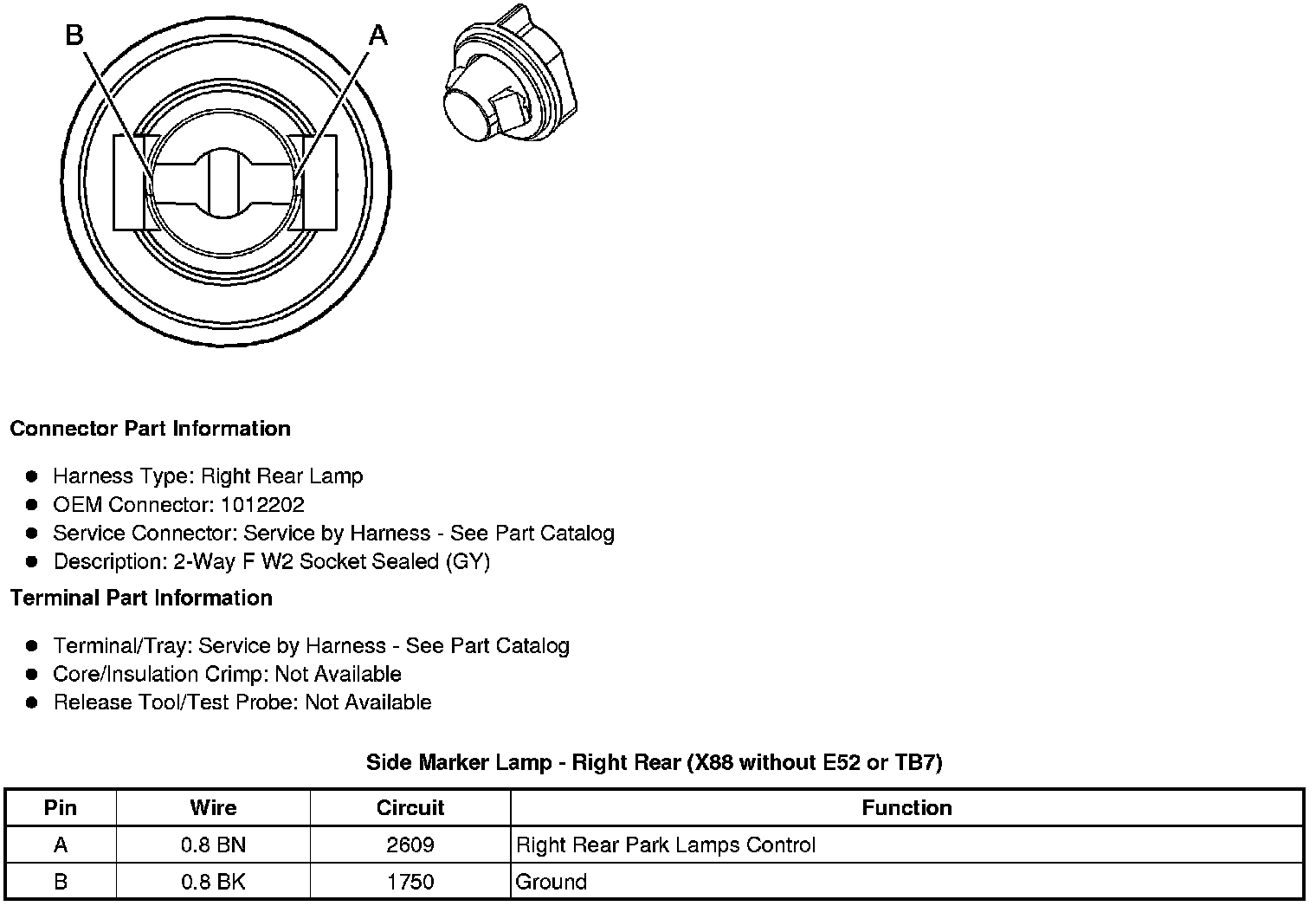

Side Marker Lamp - Right Rear (X88 without E52 or TB7)
