Park Lamp - Right Front (Z75 without T4Q)
Park Lamp - Right Front (Z75 without T4Q)
Component Connector End Views

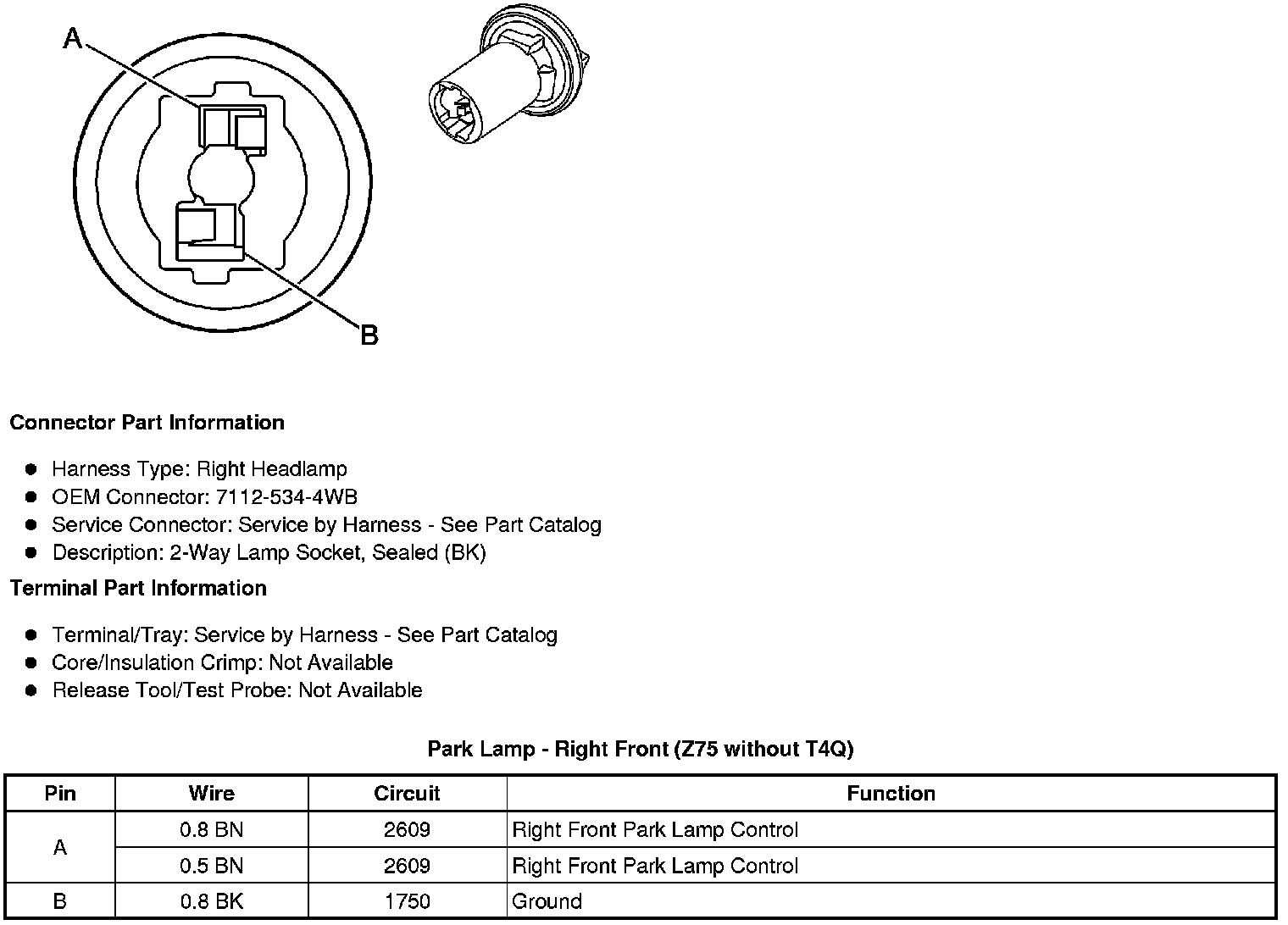

Park Lamp - Right Front (Z75 without T4Q)
