Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Liftgate Control Switch - Interior (E61)
Liftgate Control Switch - Interior (E61)

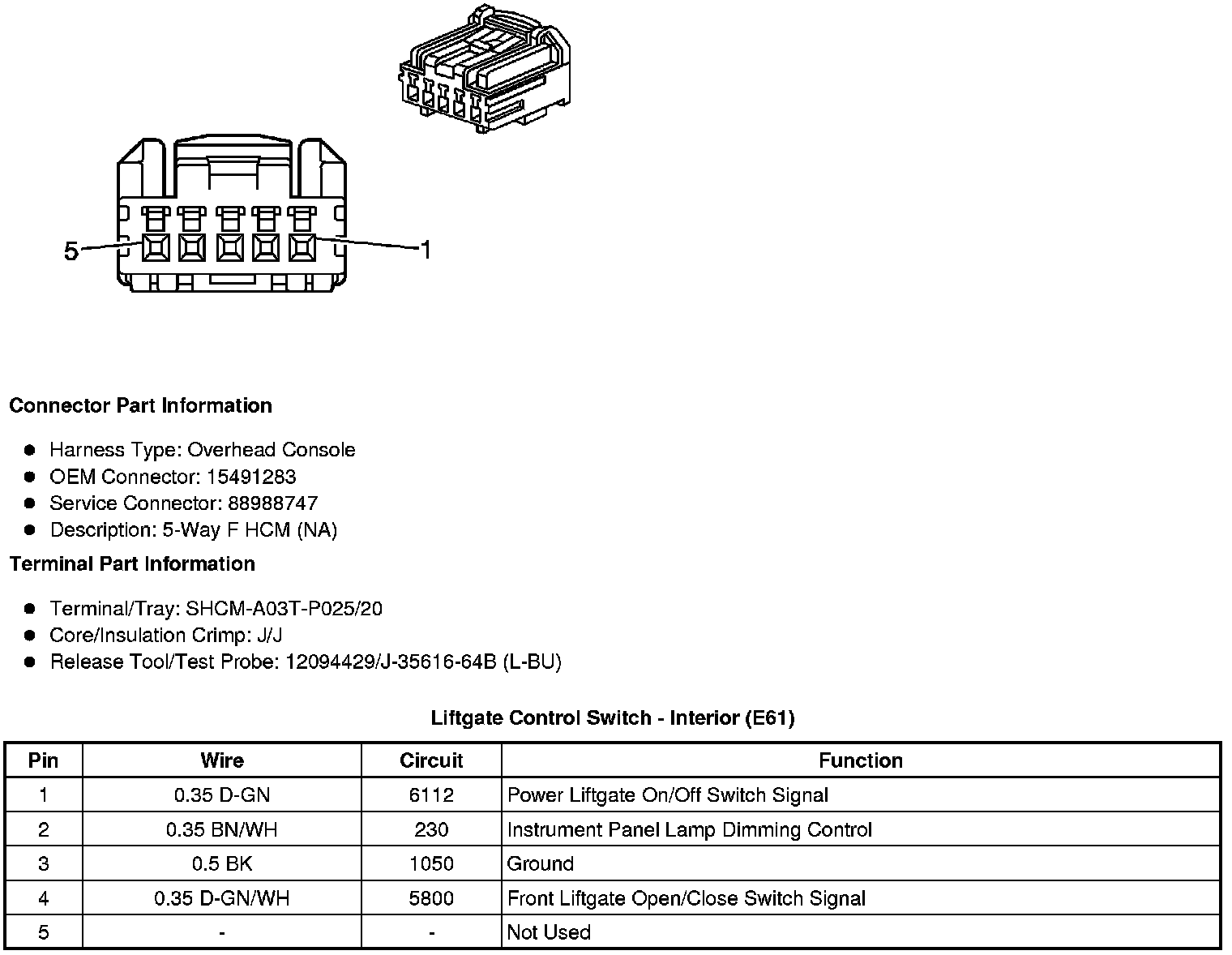

Component Connector End Views
Liftgate Control Switch - Interior (E61)
