Instrument Panel Cluster (IPC) (Z75)
Instrument Panel Cluster (IPC) (Z75)

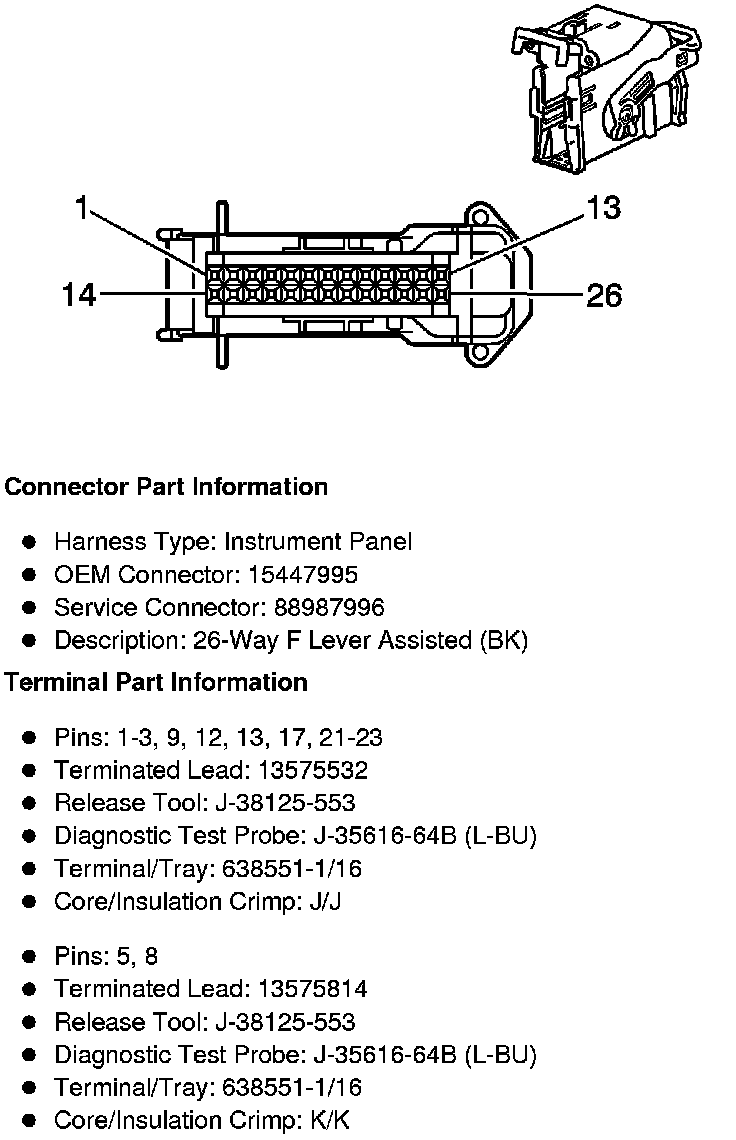

Component Connector End Views

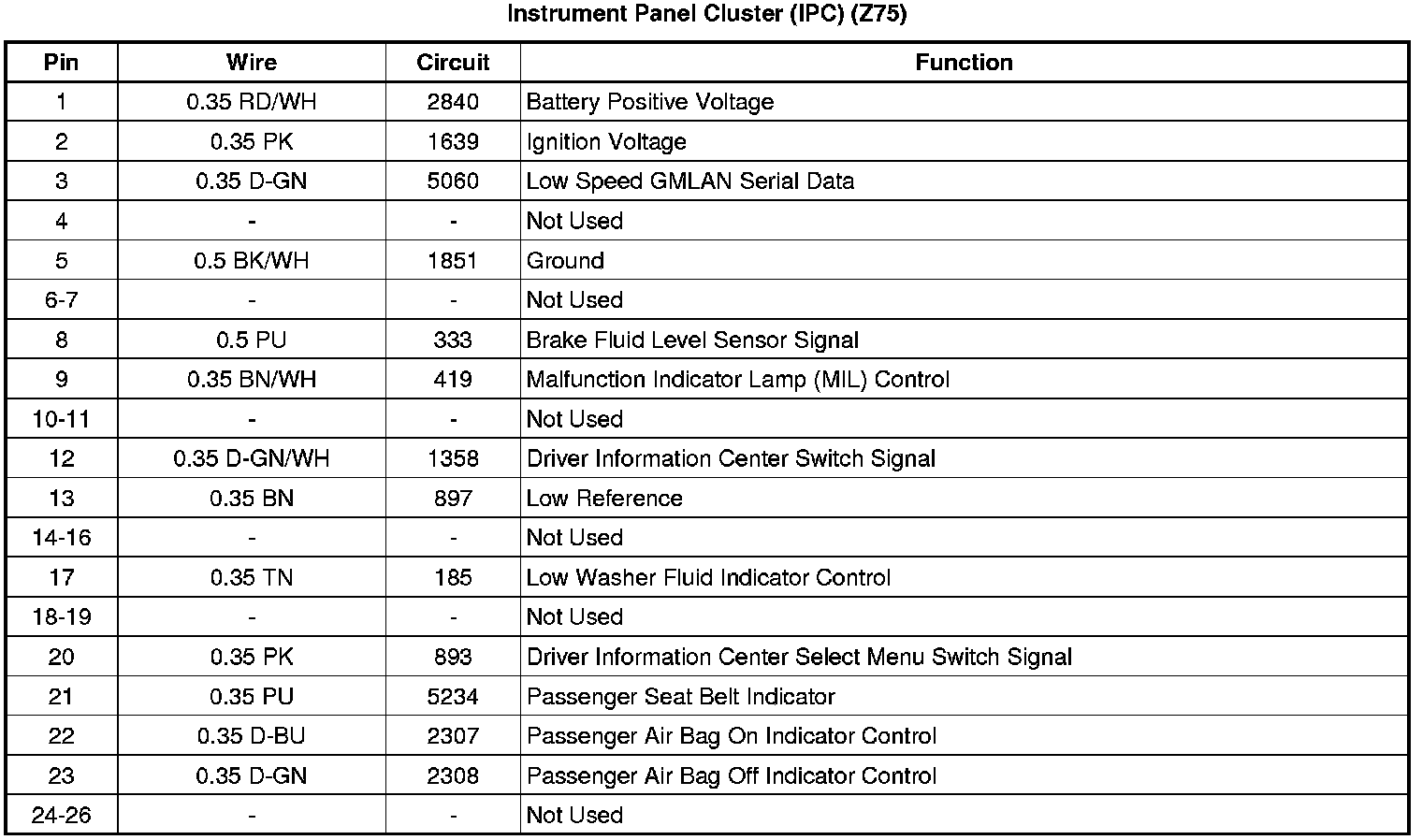

Instrument Panel Cluster (IPC) (Z75)
