Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1

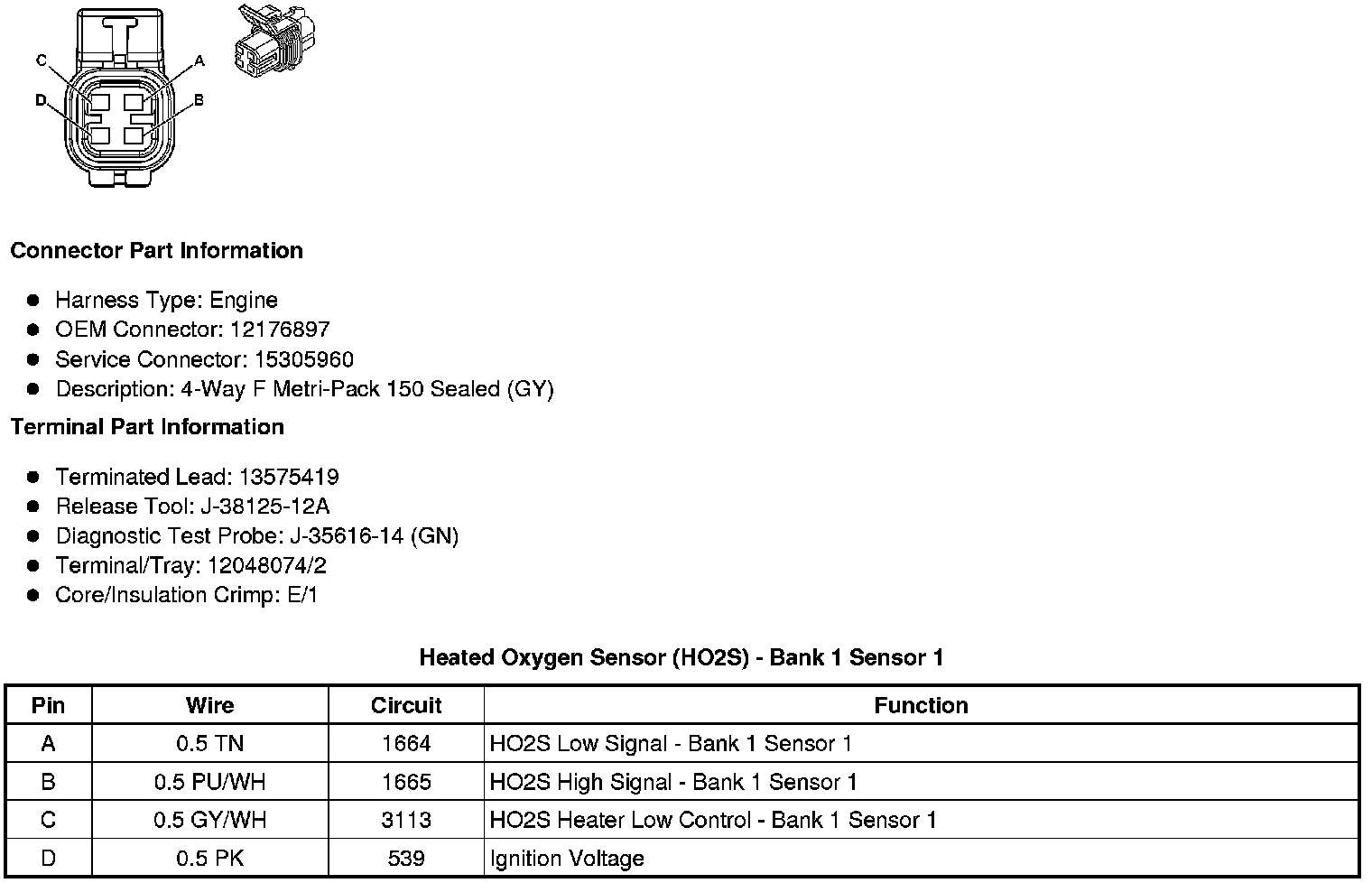

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
Component Connector End Views
Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
