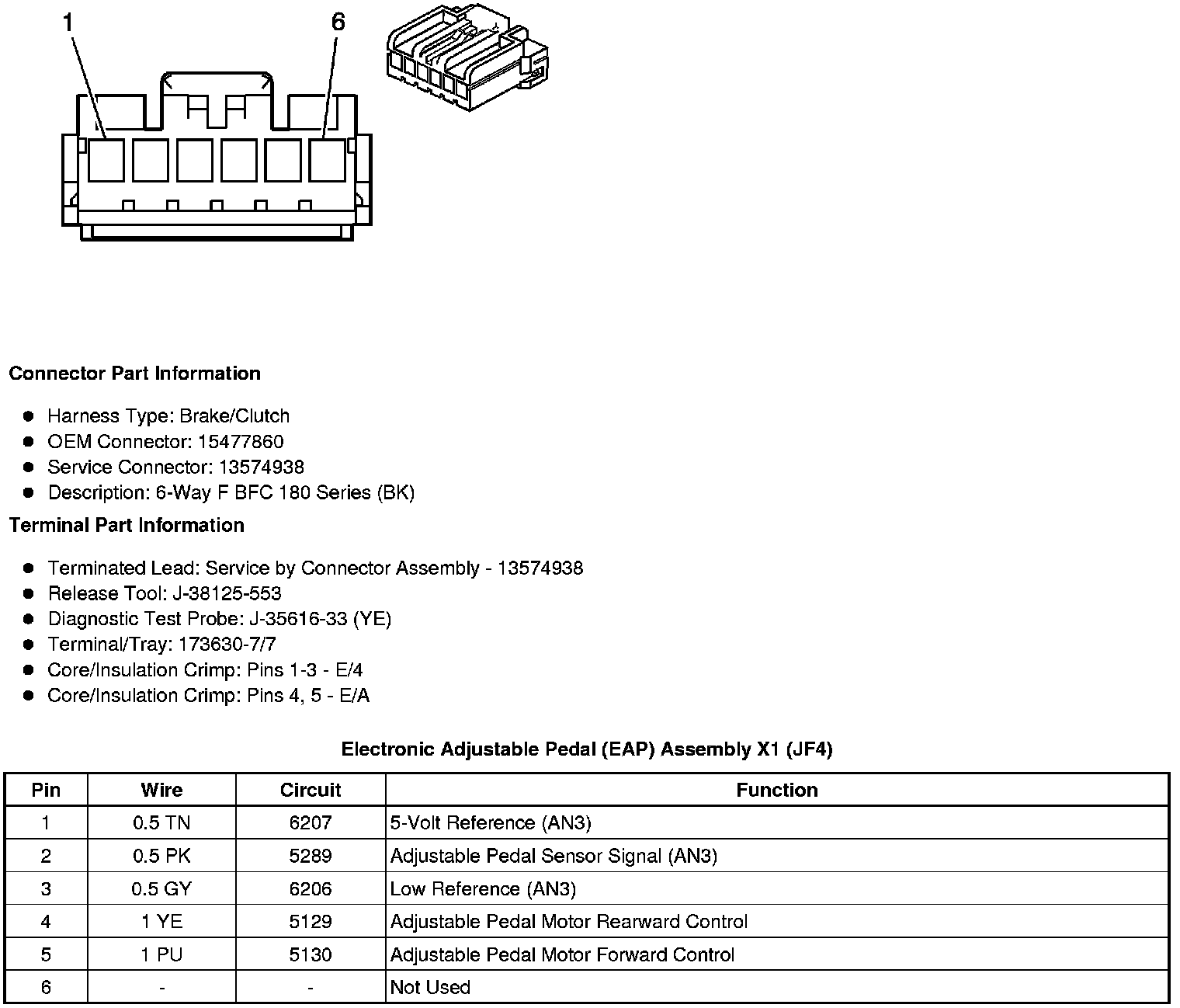

Electronic Adjustable Pedal (EAP) Assembly X1 (JF4)
Electronic Adjustable Pedal (EAP) Assembly X1 (JF4)
Component Connector End Views
Electronic Adjustable Pedal (EAP) Assembly X1 (JF4)
