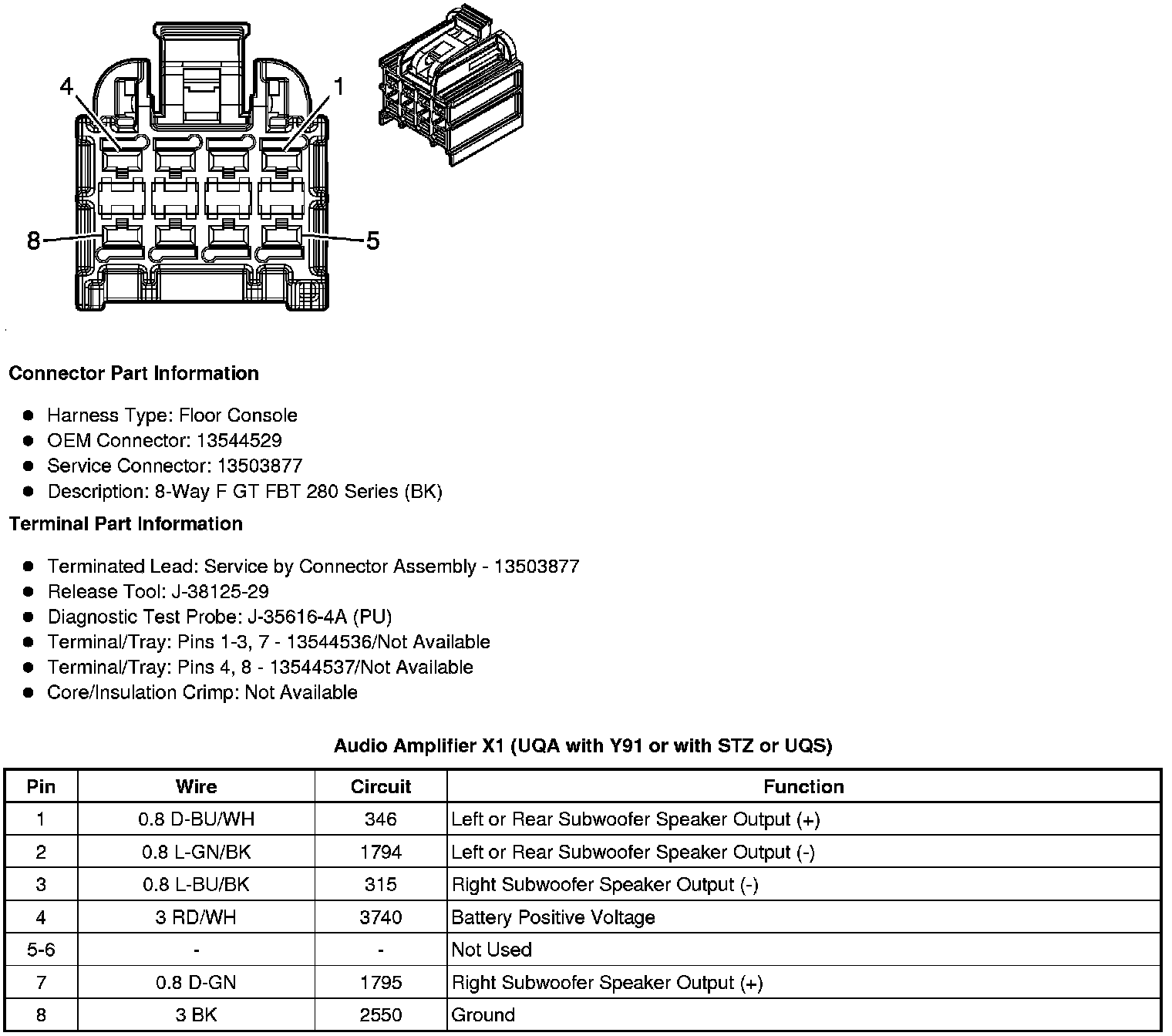

Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)
Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)
Component Connector End Views
Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)
