Camshaft Position Sensor
>>
Camshaft Position (CMP) Sensor
Camshaft Position (CMP) Sensor

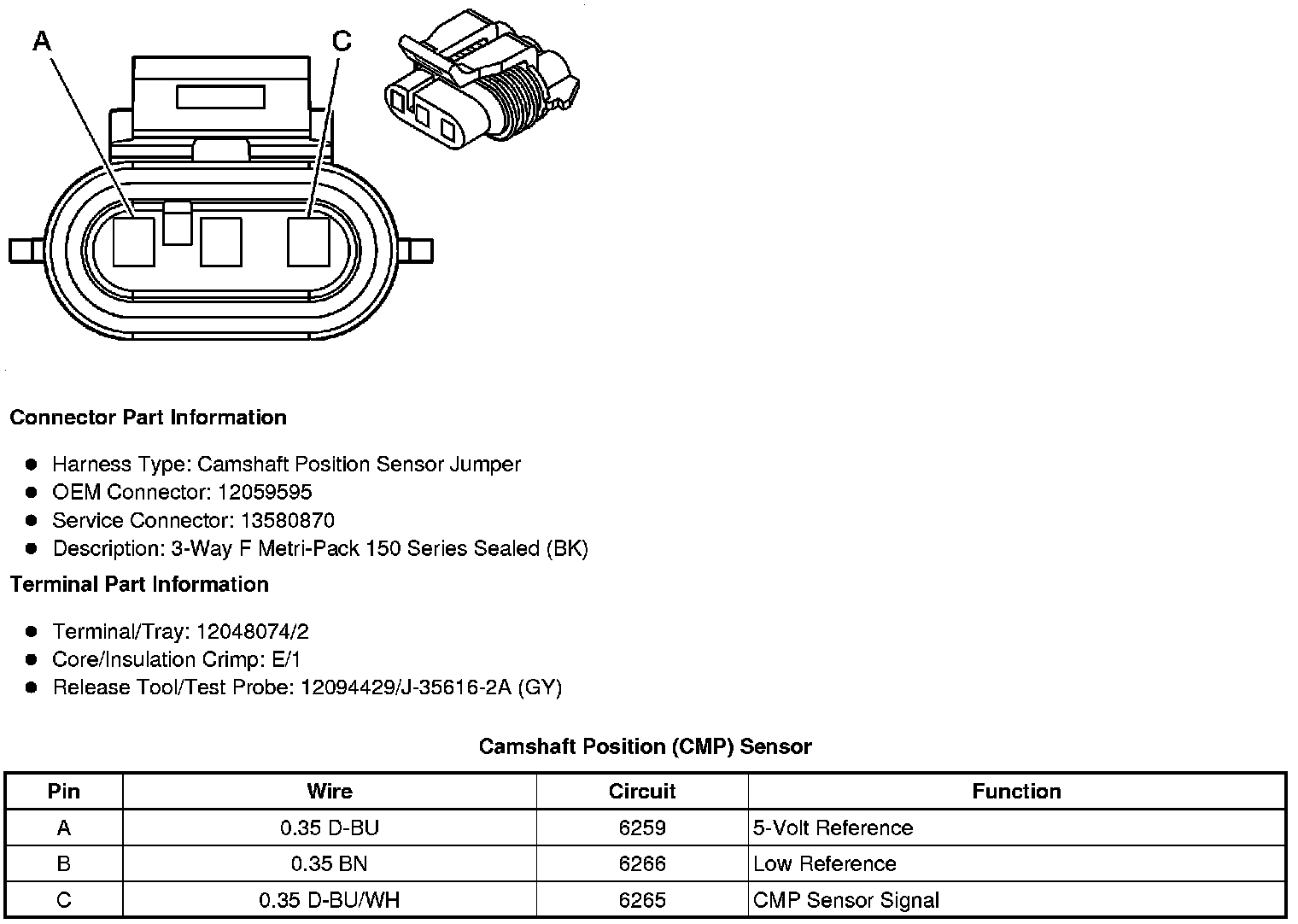

Component Connector End Views
Camshaft Position (CMP) Sensor
