Inflatable Restraint Roof Rail Module - Right Front (ASF with E52 or TB7)

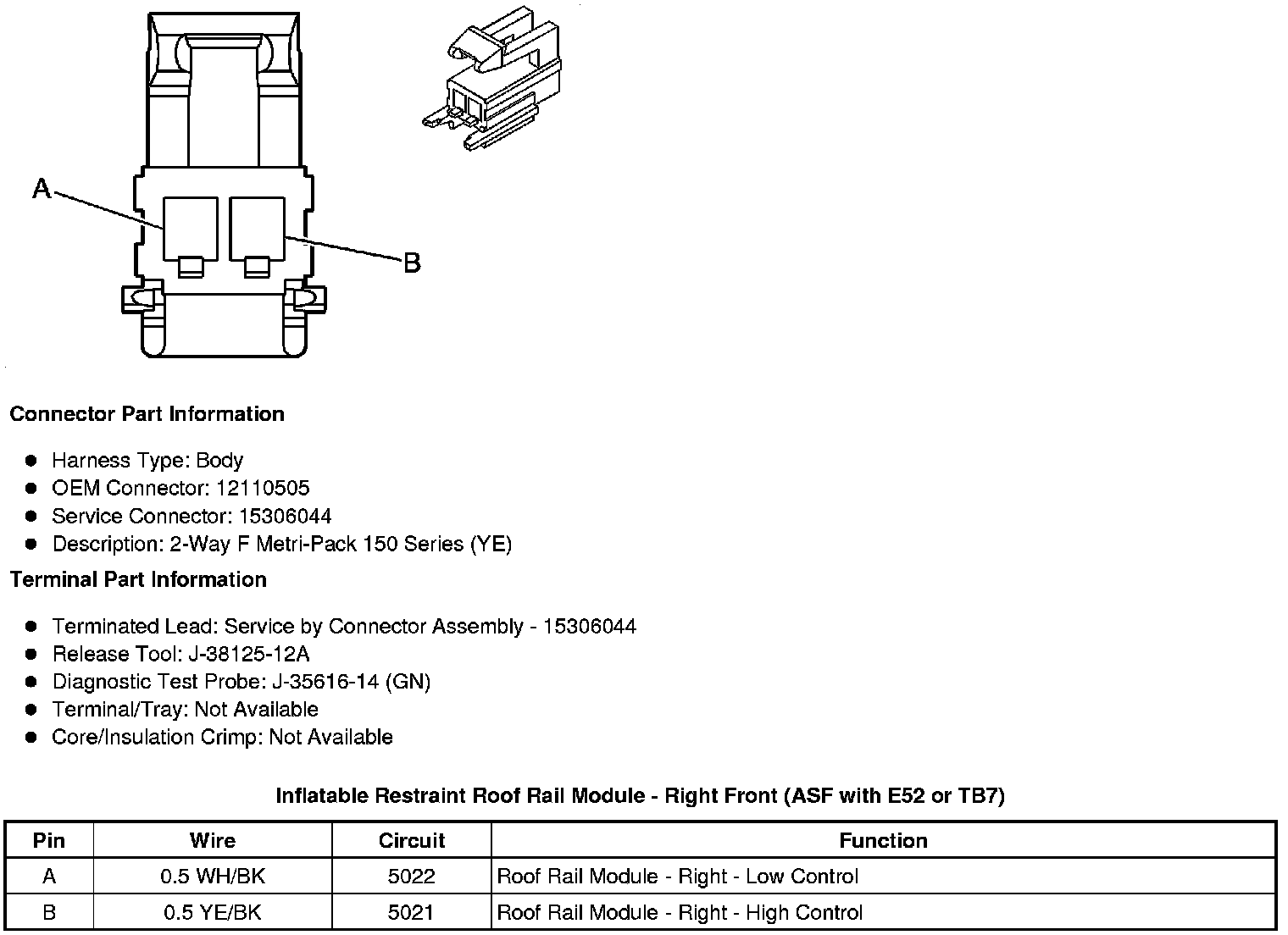

Component Connector End Views

Inflatable Restraint Roof Rail Module - Right Front (ASF with E52 or TB7)
