Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Garage Door Opener Transmitter

Garage Door Opener Transmitter

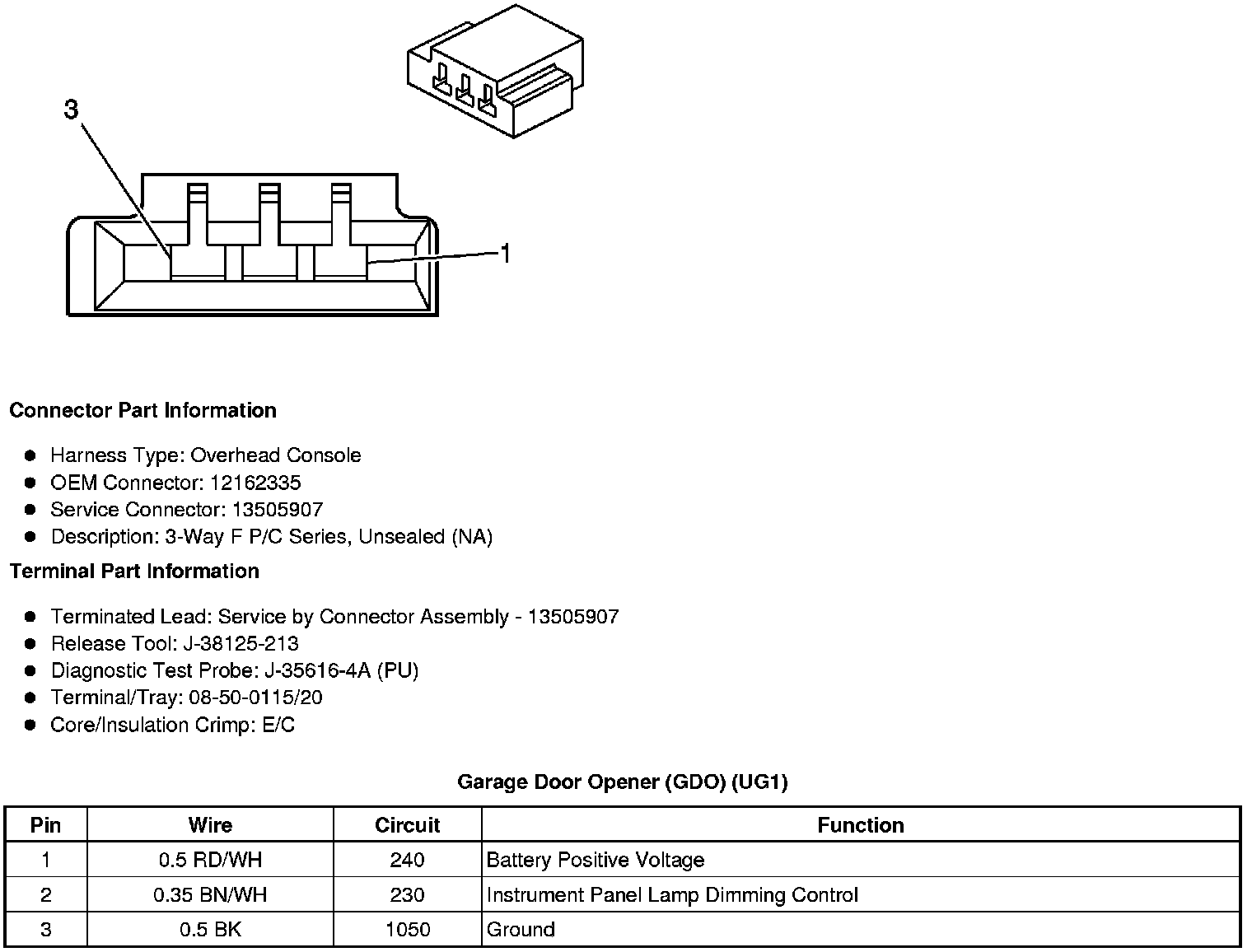

Component Connector End Views

Garage Door Opener (GDO) (UG1)
