Video Signal Splitter X2 (X88 or Z88, with DNU)
Video Signal Splitter X2 (X88 or Z88, with DNU)
Component Connector End Views

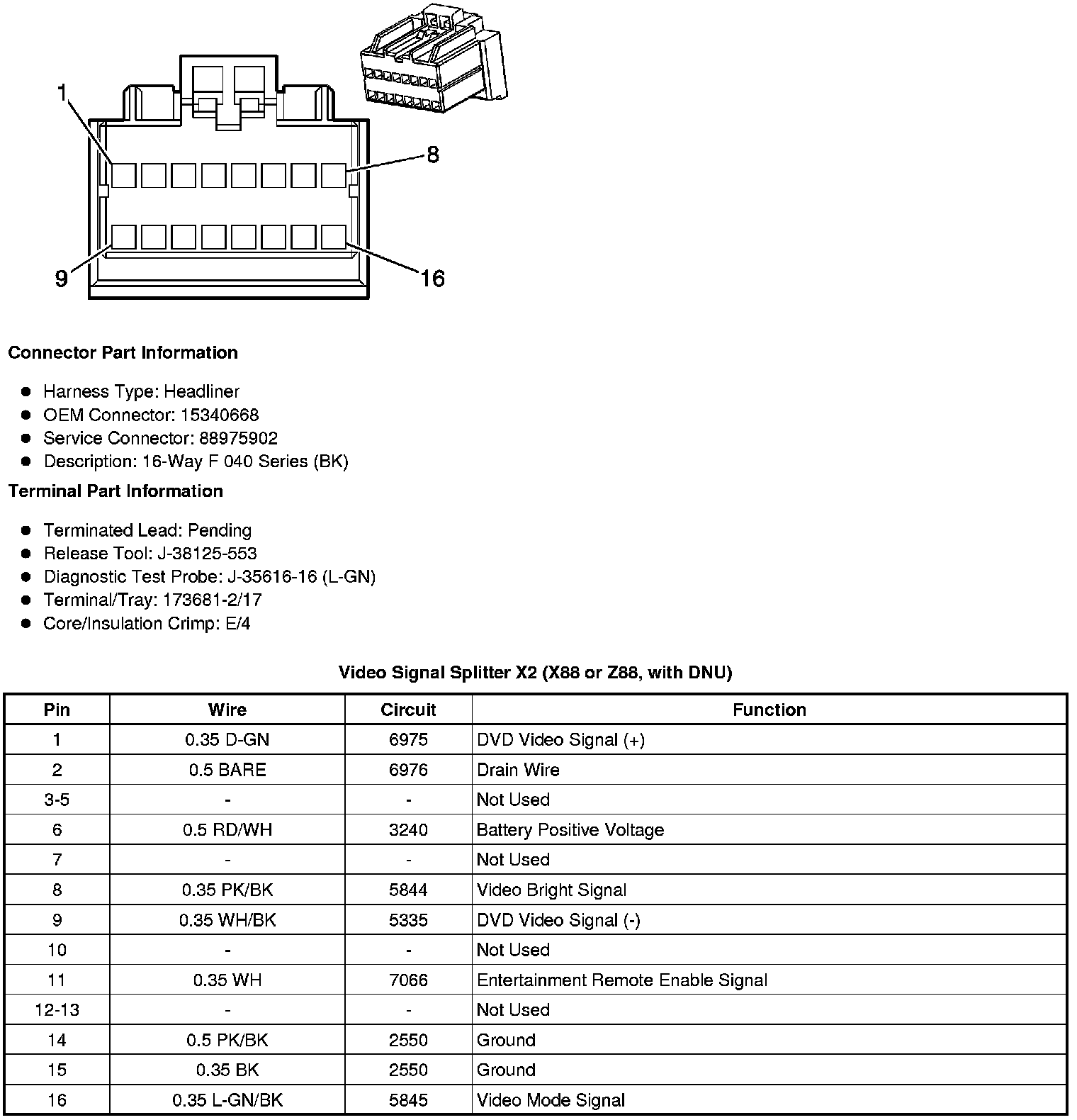

Video Signal Splitter X2 (X88 or Z88, with DNU)
