Audio Amplifier X4 (UQA with Y91 or UQS)
Audio Amplifier X4 (UQA with Y91 or UQS)

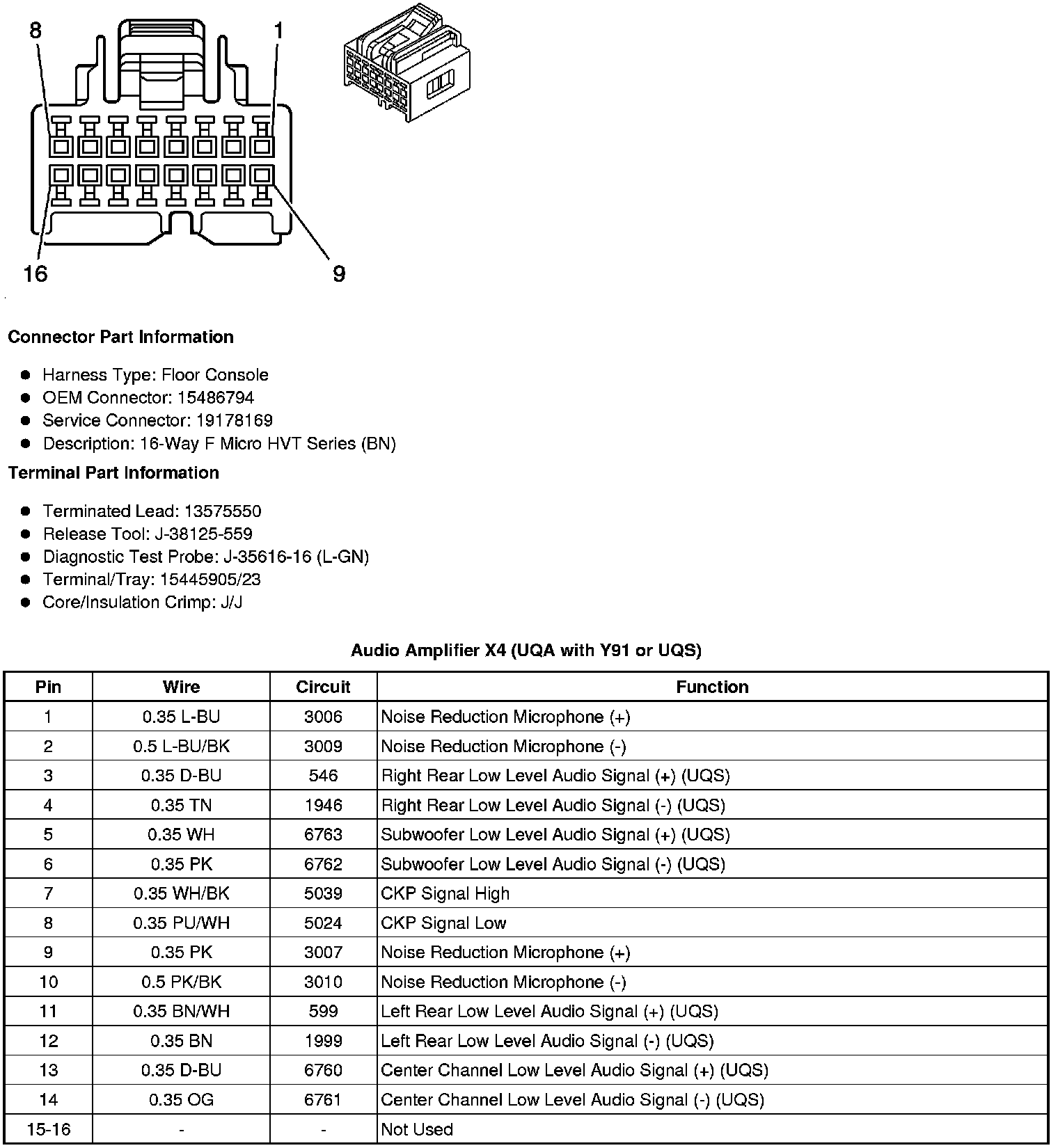

Component Connector End Views
Audio Amplifier X4 (UQA with Y91 or UQS)
