LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

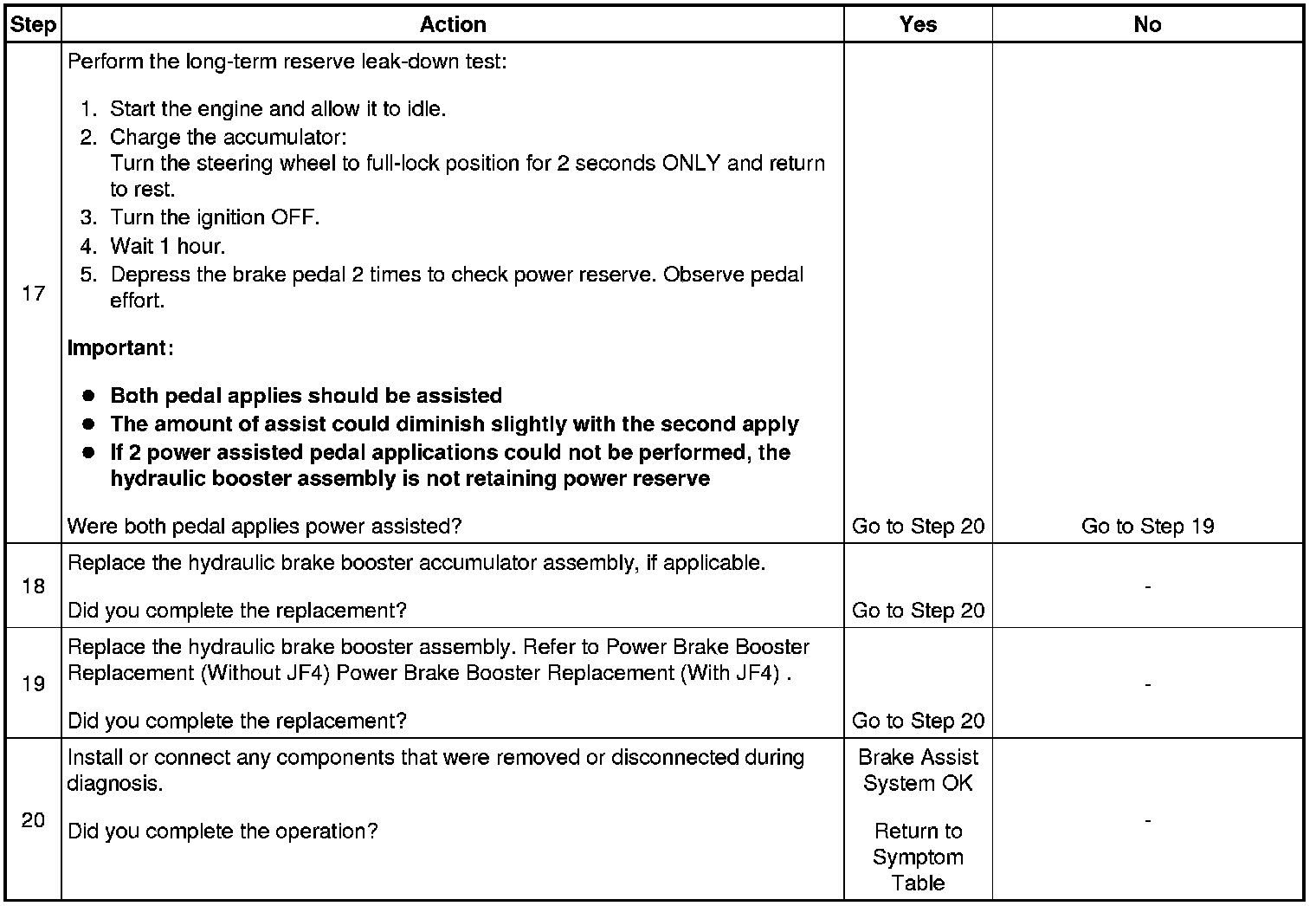

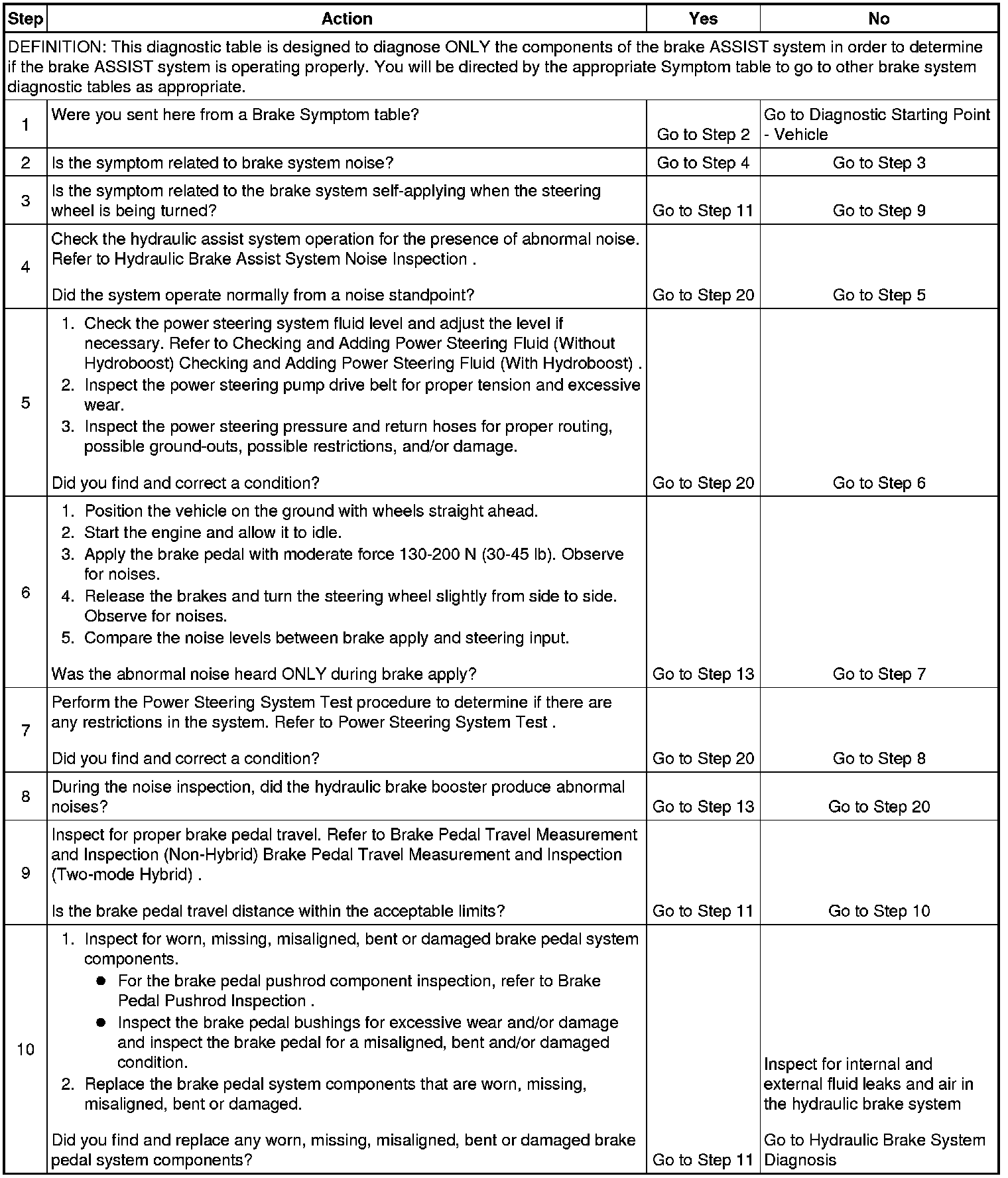

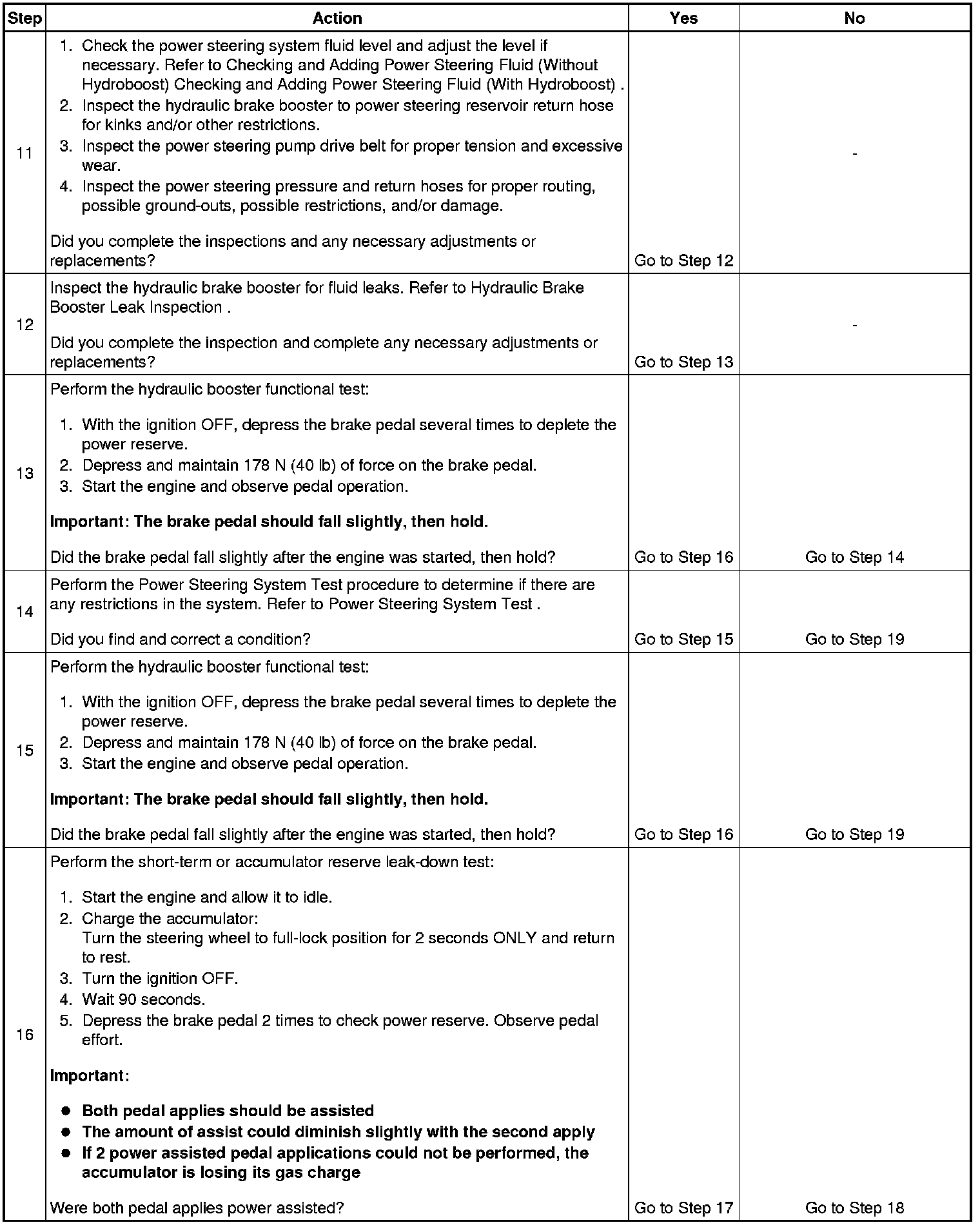

Brake Assist System Diagnosis (Hydraulic Assist)
Brake Assist System Diagnosis (Hydraulic Assist)
Brake Assist System Diagnosis (Hydraulic Assist)
