Seat Adjuster Switch - Passenger (AG2 with AN3)
Seat Adjuster Switch - Passenger (AG2 with AN3)

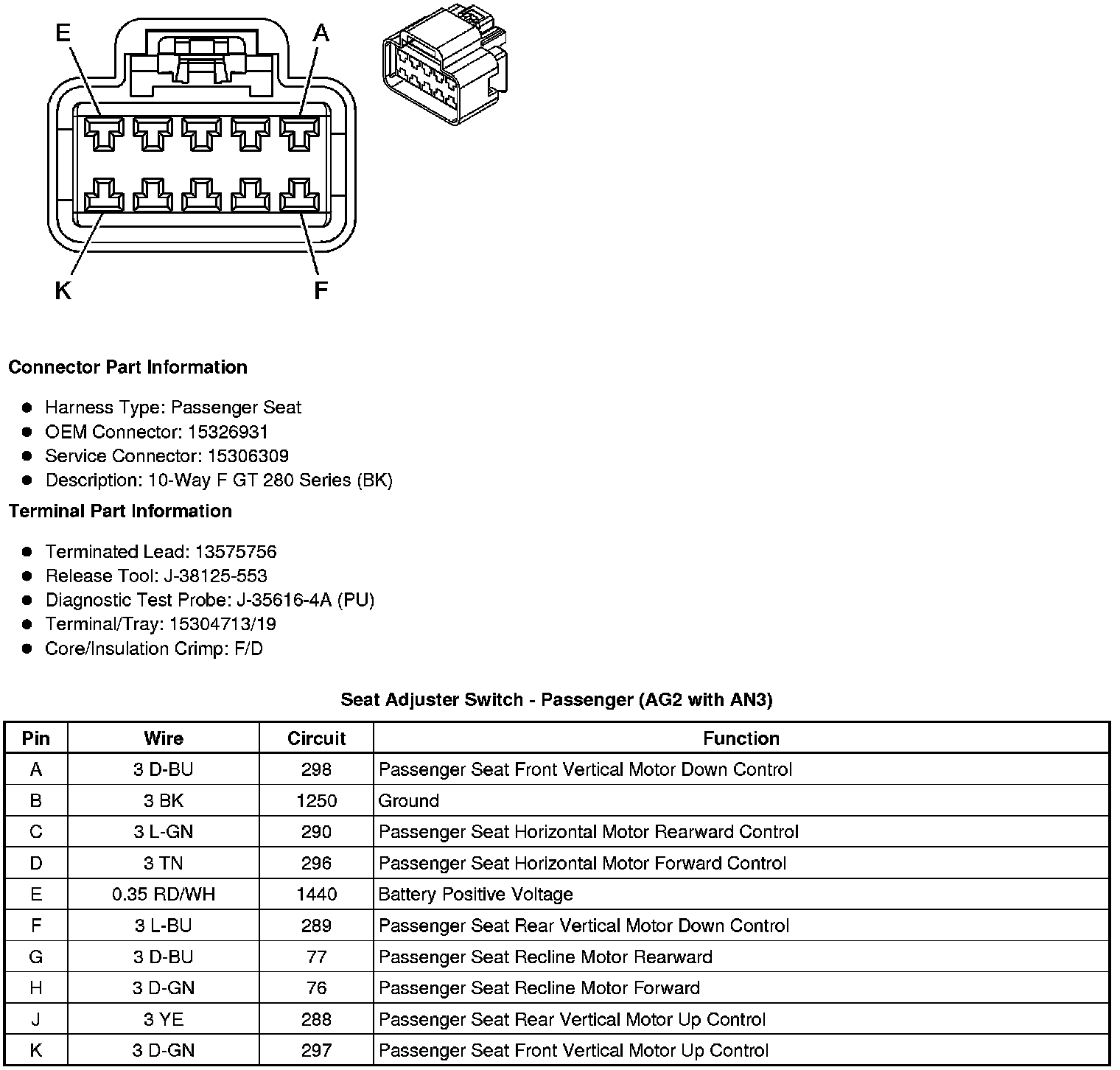

Component Connector End Views
Seat Adjuster Switch - Passenger (AG2 with AN3)
