Seat Adjuster Switch - Driver (AG1 without AN3 or AG1 with HP2)

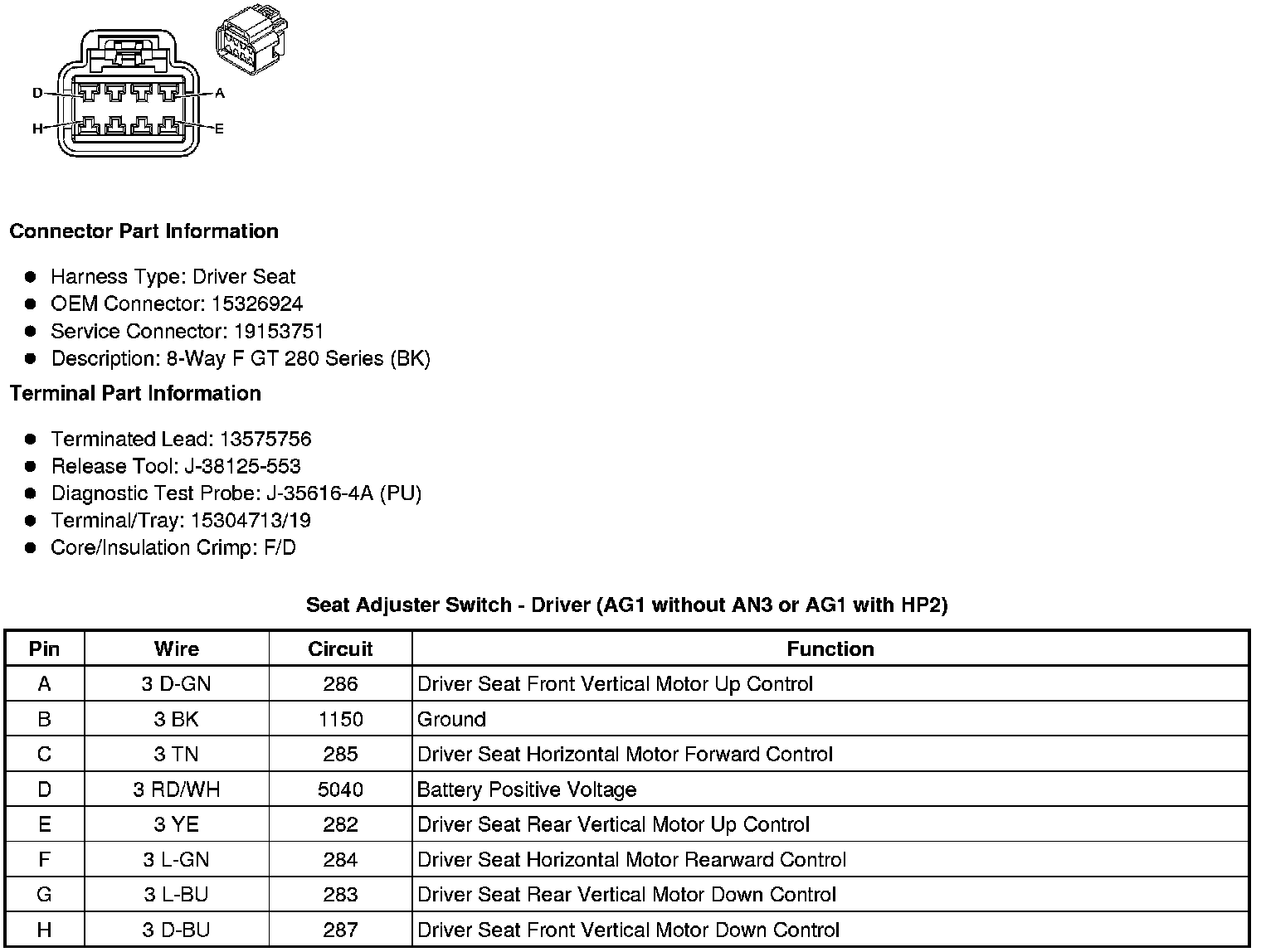

Component Connector End Views

Seat Adjuster Switch - Driver (AG1 without AN3 or AG1 with HP2)
