Folding Seat Motor - Right Rear (ARS)
Folding Seat Motor - Right Rear (ARS)

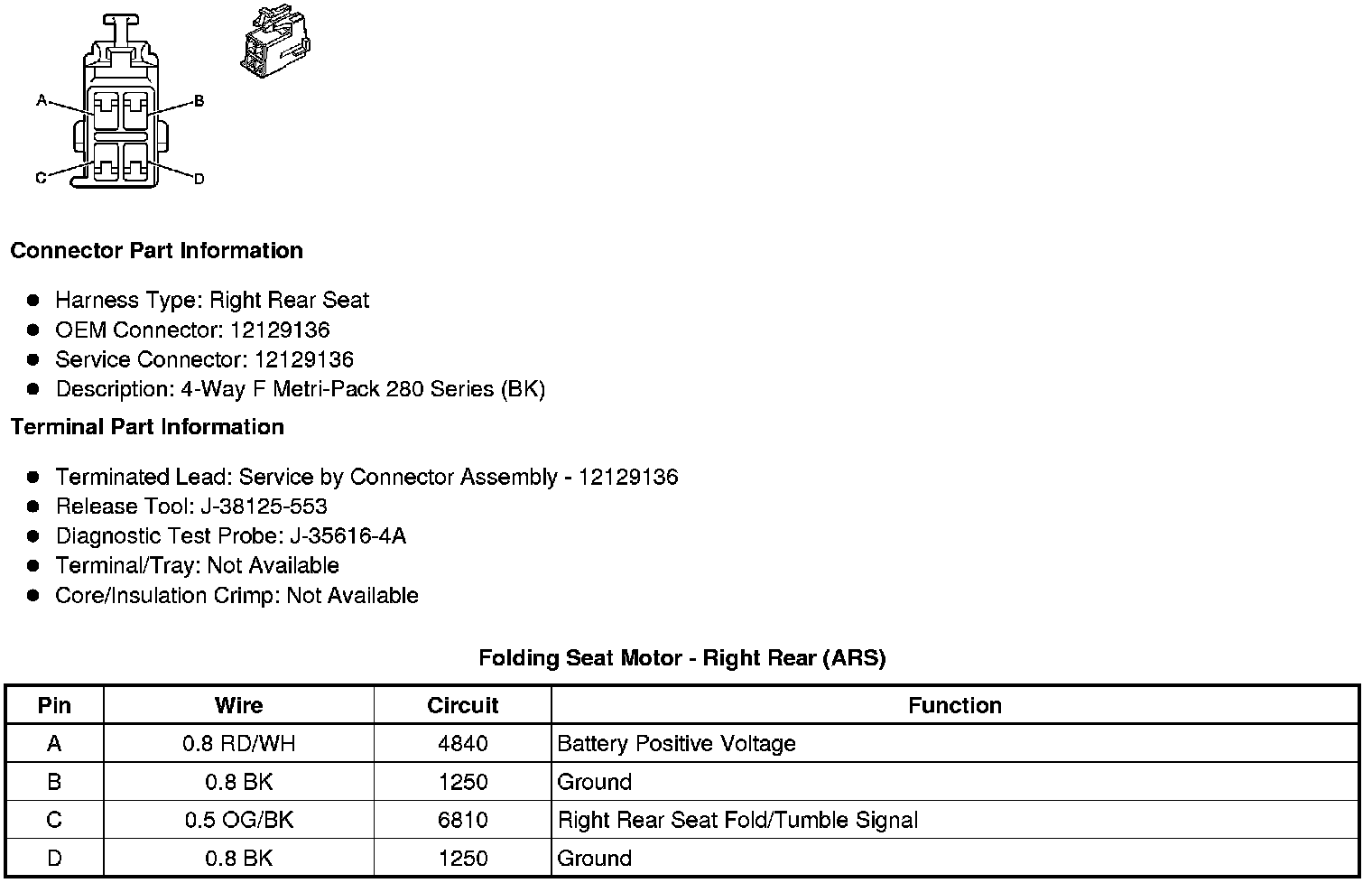

Component Connector End Views
Folding Seat Motor - Right Rear (ARS)
