Rear Bumper Fascia Replacement (Escalade Premium)

Rear Bumper Fascia Replacement (Escalade Premium)

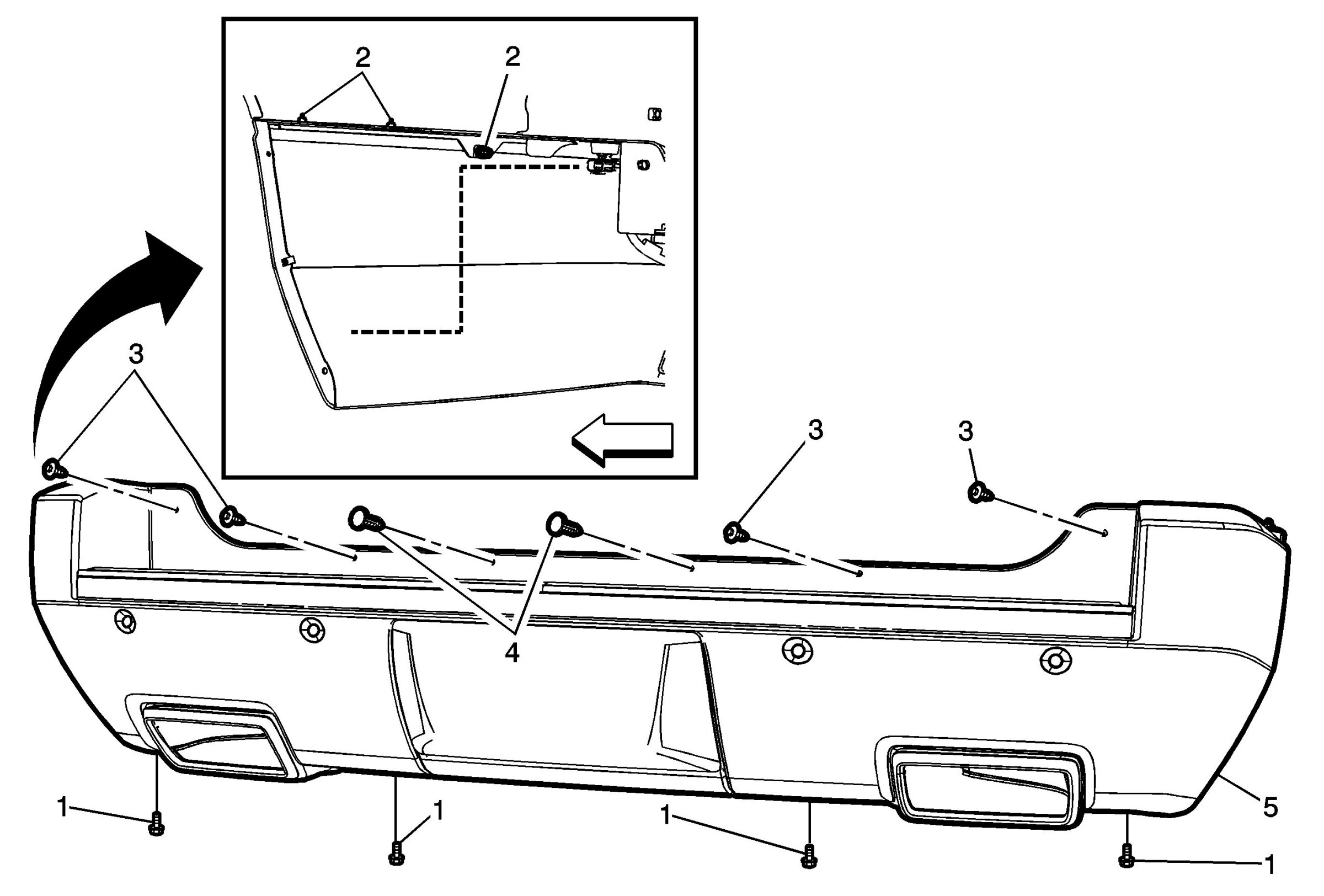

2.Reach between the fascia and the rear quarter panel to loosen the bolts. DO NOT pull on the fascia when reaching to loosen the bolts.
Tighten
3Rear Bumper Fascia Bolt (Qty: 4)Tighten 9 N �m (80 lb in)

4Rear Bumper Fascia Plastic Retainer (Qty: 2)

5Fascia Bumper Fascia


Procedure


Transfer parts as needed.
