Rear Bumper Fascia Replacement (All Utility, Cadillac ESV)

Rear Bumper Fascia Replacement (All Utility, Cadillac ESV)

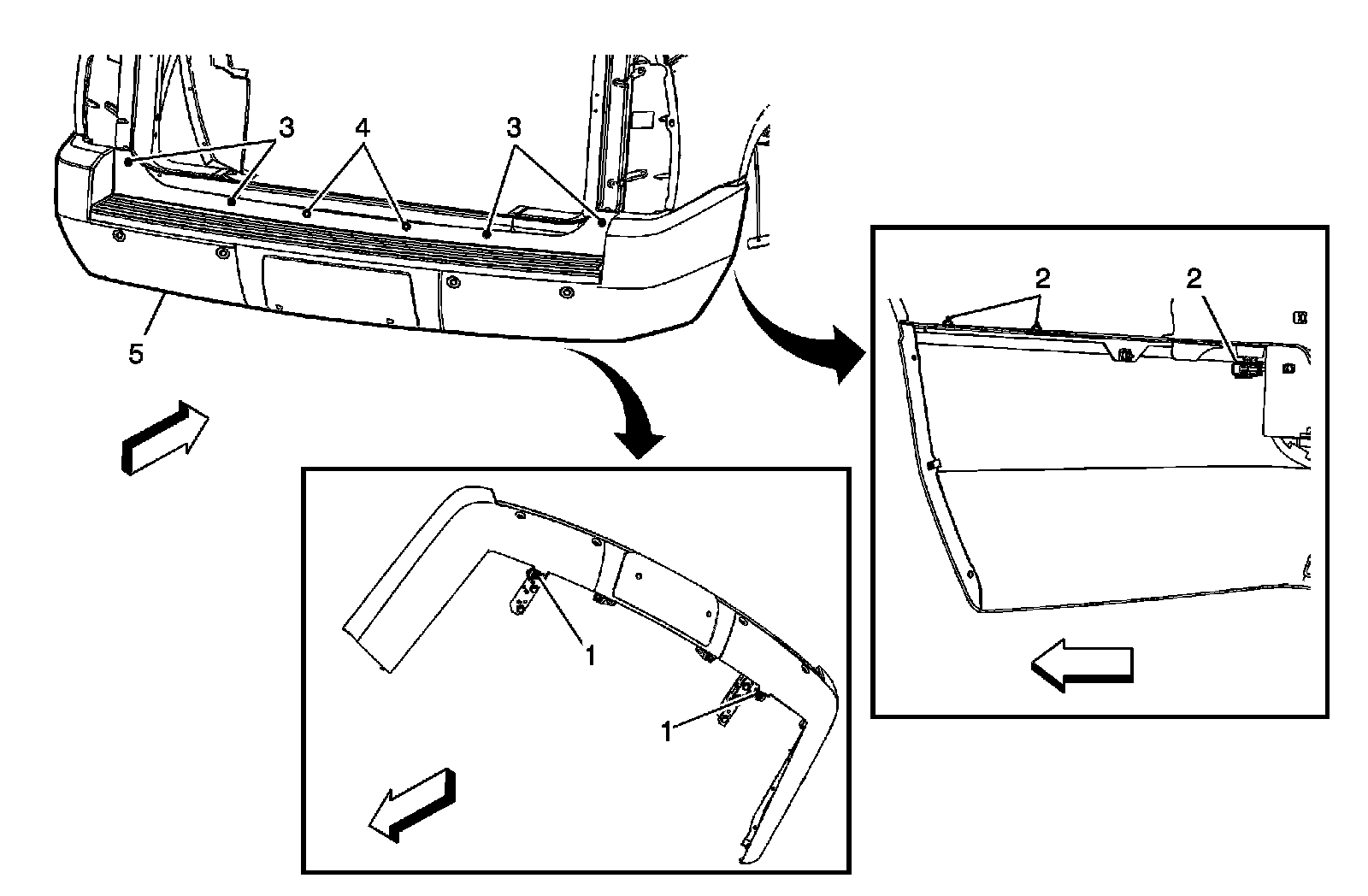

2.Reach between the fascia and the rear quarter panel to loosen the bolts. DO NOT pull on the fascia when reaching to loosen the bolts.
Tighten
3Rear Fascia Bolt (Qty: 4)Tighten 9 N �m (80 lb in)

4Rear Fascia Plastic Retainer (Qty: 2)

5Fascia Assembly
Tip If replacing the Z-71 fascia, new fender flare holes will need to be drilled as needed.
