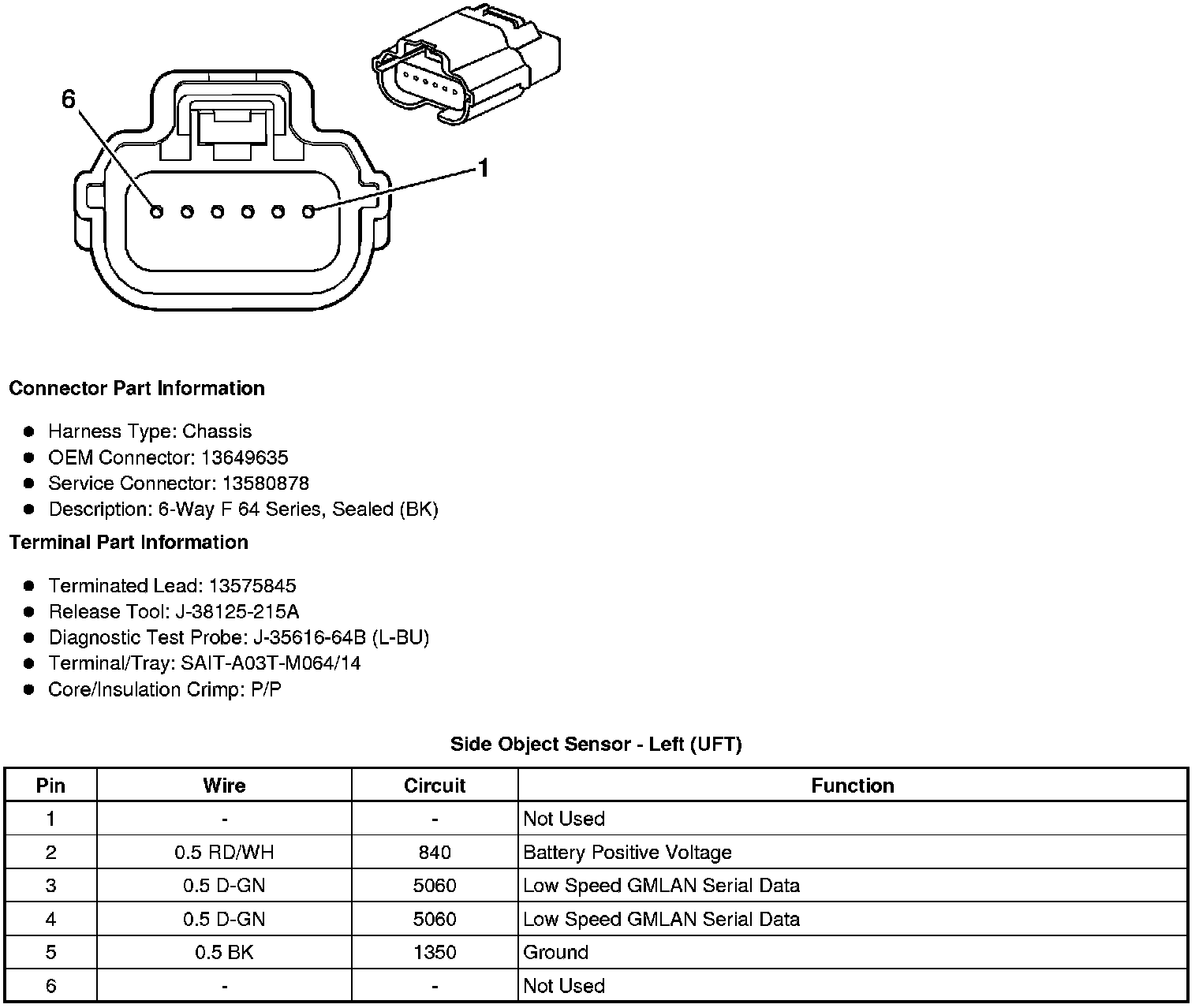

Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Parking Assist Distance Sensor >> Diagrams >> Side Object Sensor - Left (UFT)
